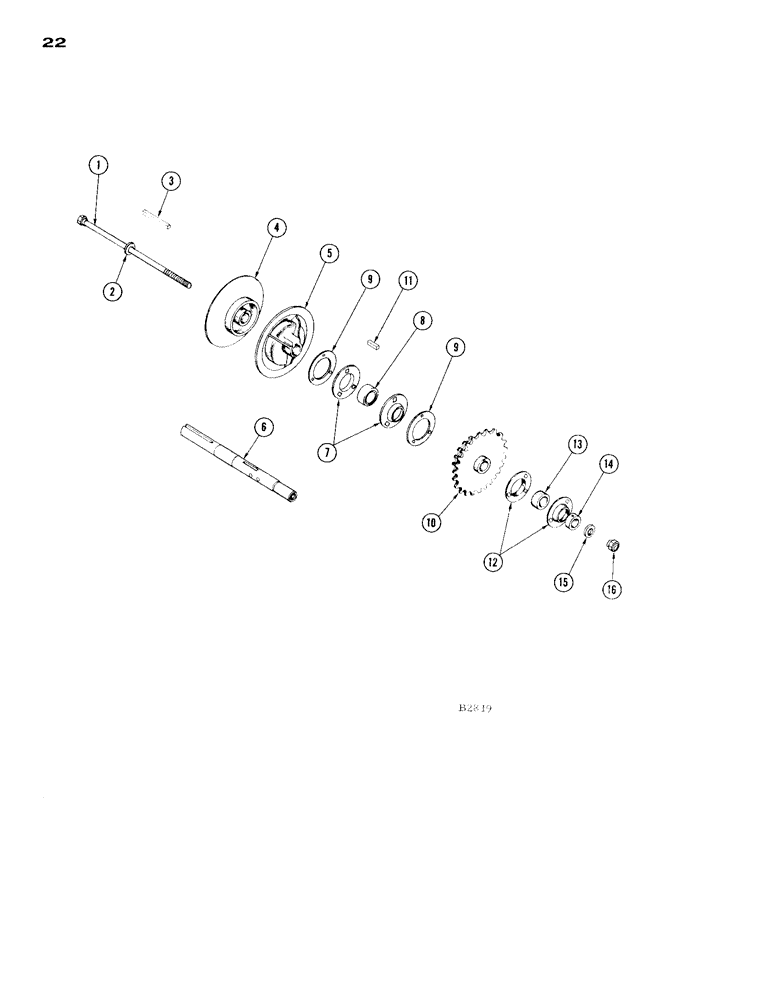

Запчасти Case IH 1665 (22) - VARIABLE SPEED REEL DRIVE, 14 FOOT TO 16 FOOT RICE HEADER (58) - ATTACHMENTS/HEADERS

1

F88831

ROD and NUT ASSEMBLY - sheave control

1шт.

2

V20210

WASHER

1шт.

3

O818B

KEY

- 5/16" sq. x 3-3/4", for Ref. 4, 5 and 6

1шт.

4

F1971

SHEAVE HALF - movable

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" grease

1шт.

5

F1970

SHEAVE HALF - stationary

1шт.

6

F13519

SCREW

JACKSHAFT - reel

1шт.

7

F62225

FLANGE

- bearing

2шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - used w/out collar

1шт.

9

F13520

SPACER

2шт.

10

F87397

SPROCKET ASSY.

SPROCKET - (24T and 38T) reel drive

1шт.

181-809

SCREW - 1/4" x 3/4" N.C. sq. hd. cup pt. set

1шт.

11

O2237HT

KEY - 5/16" sq. x 1", for Ref. 6 and 10

1шт.

12

F62225

FLANGE

- bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

92-6

LOCK WASHER,3/8"

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

13

F82927

RACE

BEARING

1шт.

14

F62234

COLLAR

1шт.

15

F62050

WASHER

1шт.

16

F13525

SCREW

NUT - adjusting (for F88831, Ref. 1)

1шт.

F88823

AUGER - header, 14 ft. heavy duty (tube and flighting)

1шт.

F88824

AUGER - header, 16 ft. heavy duty (tube and flighting) (See Page 49, #C981 Catalog)

1шт.

F88815

FEED RAKE - (consists of 26-F13438 slats, 18-F30211 saw tooth slats, 8-F13439 wipers, 8-F13440 reinfs, 52 attach. links and A550 chain links)

1шт.

F30211

SLAT - saw tooth (See Page 63, #C981 Catalog)

18шт.

F30126

BELT - V.S. traction drive (In place of F13212) (See Page 203, #C981 Parts Catalog)

1шт.
