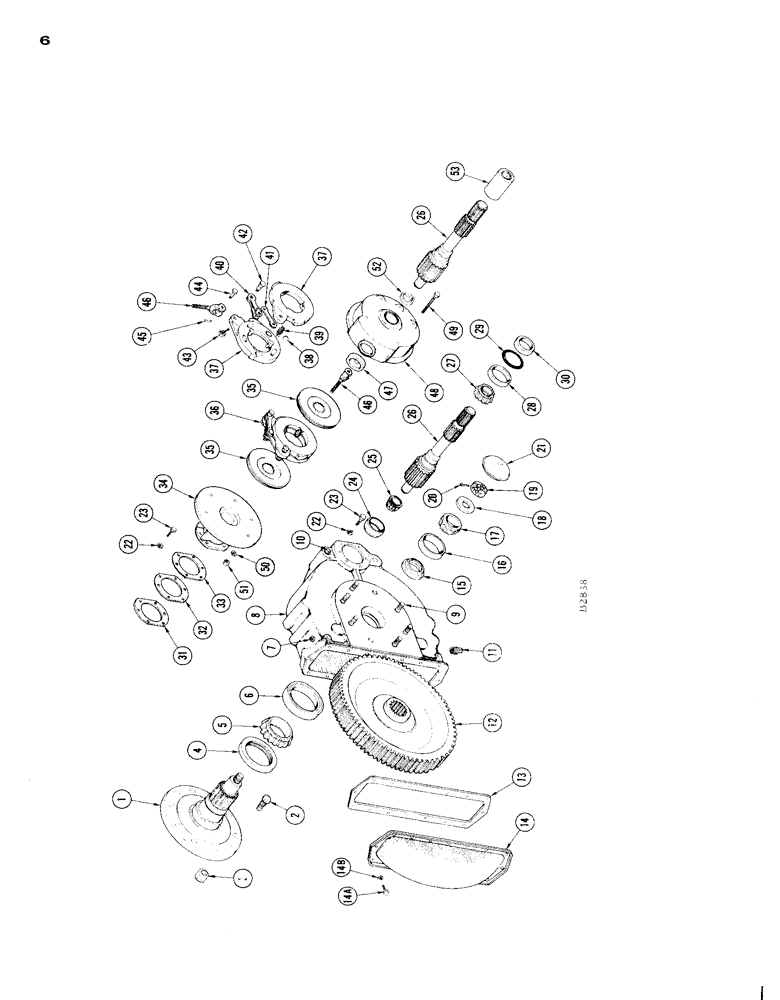

Запчасти Case IH 1665 (06) - FINAL DRIVE AND BRAKE ASSEMBLY (25) - FRONT AXLE SYSTEM

F88645

DROP BOX - final drive, w/brakes (L.H.)

1шт.

F88646

DROP BOX - final drive, w/brakes (R.H.)

1шт.

1

F3164

SHAFT - final drive

1шт.

2

F30233

WHEEL BOLT

BOLT - wheel

10шт.

3

A12522

WHEEL NUT

- wheel

10шт.

4

A28184

BEARING CUP

CUP - final drive shaft, outer

1шт.

5

F30235

CONE - final drive shaft, outer

1шт.

6

F30234

SEAL - oil

1шт.

7

A50096

VALVE

BREATHER

1шт.

8

F88841

HOUSING ASSEMBLY - final drive

1шт.

9

F30240

STUD

6шт.

10

221-15

PLUG,Sq Hd, 3/4"-14

- housing oil filler

1шт.

11

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - oil drain

1шт.

12

F3165

GEAR - (117T) final drive

1шт.

13

F30276

GASKET

1шт.

14

F30277

PAN - final drive housing

1шт.

14a

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CAPSCREW

16шт.

14b

92-6

LOCK WASHER,3/8"

16шт.

15

F30274

SPACER - final drive gear

1шт.

16

A27732

BEARING CUP

CUP - final drive shaft, inner

1шт.

17

A27733

ROLLER BEARING,57.2 mm ID x 31 mm

CONE - final drive shaft, inner

1шт.

18

F30275

WASHER

1шт.

19

D46765

LOCK NUT

NUT - final drive shaft

1шт.

21

F30278

CAP - final drive shaft bearing

1шт.

22

92-7

LOCK WASHER,7/16"

6шт.

23

113-328

CAPSCREW

6шт.

24

A26533

ROLLER BEARING,76.45 mm OD x 19.1 mm

CUP - axle drive shaft, outer

1шт.

25

O1456AB

CONE

- axle drive shaft, outer

1шт.

26

F3163

PINION - final drive

1шт.

27

G10414

ROLLER BEARING

CONE - axle drive shaft, inner

1шт.

28

A50179

BEARING CUP

CUP - axle drive shaft, inner

1шт.

29

F30271

SEAL

"O" RING

1шт.

30

F30272

SEAL - oil

1шт.

31

F30236

SHIM - axle shaft bearing

2шт.

32

F30237

SHIM - axle shaft bearing

2шт.

33

F30238

SHIM - axle shaft bearing

4шт.

34

F1744

ADAPTER - brake housing (R.H.)

1шт.

34

F1743

ADAPTER - brake housing (L.H.)

1шт.

35

A61858

BRAKE DISC

DISC ASSY. - middle

2шт.

36

NSS

NOT SOLD SEPARAT

DISC ASSY. - actuating

1шт.

37

R13352

BRAKE

DISC - actuating

2шт.

38

211-19

BALL,7/8" Dia

- . 7/8" Dia

5шт.

39

A30897

SPRING

- extension

3шт.

40

A31120

LINK

YOKE - link assy.

1шт.

41

A31119

LINK

- plain

1шт.

42

A31121

STEP BOLT

STUD

2шт.

43

25-156

JAM NUT,Jam, 3/8"-24, G5

- Jam 3/8 - 24 N.F.

2шт.

44

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", brake yoke

1шт.

46

F3180

YOKE - brake rod (R.H.)

1шт.

46

F3183

YOKE - brake rod (L.H.)

1шт.

47

F30239

BOOT ENCLOSURE - brake rod

1шт.

48

F1758

HOUSING - brake R.H.

1шт.

48

F1747

HOUSING - brake L.H.

1шт.

49

114-319

BOLT - 7/16" x 4-1/4" N.F. (Grade 8) (3-used w/L.H.: 5 used w/R.H.)

1шт.

50

92-7

LOCK WASHER,7/16"

5шт.

51

129-530

NUT,7/16"-20, G8

5шт.

52

F30241

SEAL - oil

1шт.

53

F30105

SLEEVE

2шт.

20

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Final drive shaft nut 1/8" x 2"

1шт.
