Запчасти Case IH 1665 (14) - CLUTCH AND GEAR SHIFT LINKAGE (18) - CLUTCH

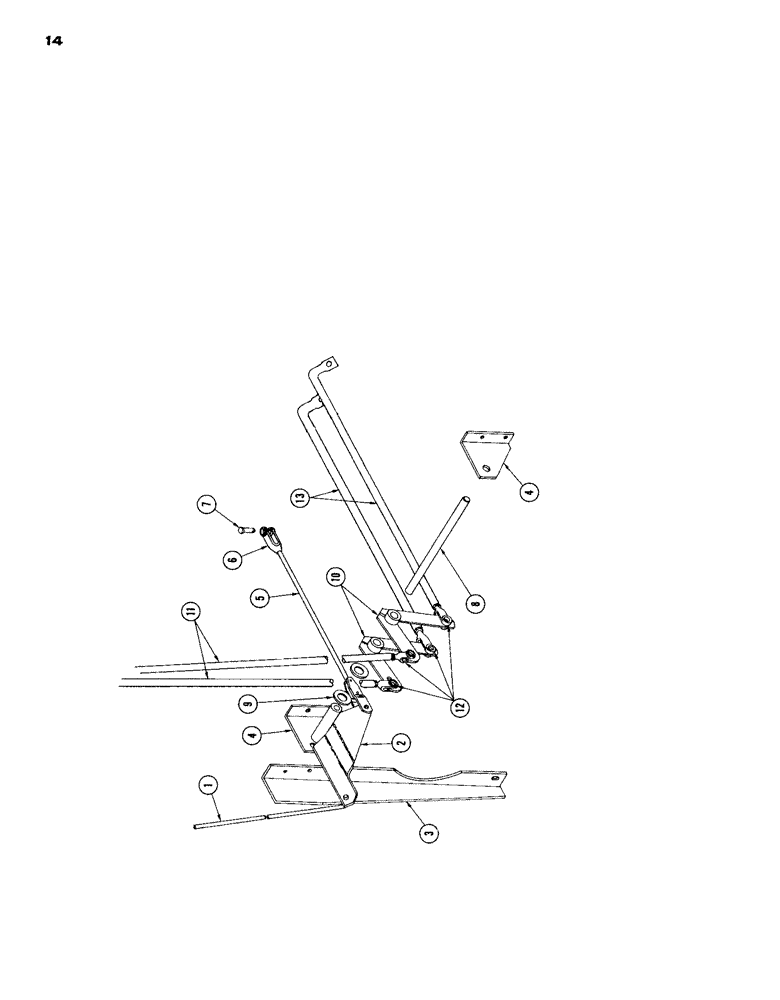

Схема запчастей Case IH 1665 - (14) - CLUTCH AND GEAR SHIFT LINKAGE (18) - CLUTCH
4
5
4
11
3
13
8
6
12
1
10
7
2
9

Артикул

Название

Примечание

Количество

1

F11971

ROD - clutch, upper (Before #8373501)

1шт.

F30510

ROD - clutch, upper (#8373501 and after)

1шт.

2

F88510

ARM ASSY.

BELLCRANK - clutch pivot

1шт.

3

F30116

BRACE - clutch pivot (Before #8373501)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex. and FW (195-25)

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex; and l.w. (92-6)

1шт.

4

F11830

BRACKET - clutch and gear shift pivot (Before #8373501)

2шт.

F11830

BRACKET - clutch and gear shift pivot (#8373501 and after)

1шт.

F30506

BRACKET - clutch and gear shift pivot (8373501 and after)

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex; and l.w. (92-5)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex; and l.w. (92-5)

2шт.

5

F88653

ROD - clutch, lower

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

6

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS

1шт.

7

O5341CS

PIN - clevis

2шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

8

F11968

PIN - Pivot (Before #8373501)

1шт.

F30509

PIN - pivot (8373501 and after)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

9

A31217

WASHER - for F11968

2шт.

10

F77542

BELLCRANK - gear shift pivot

2шт.

11

F11958

ROD - shift, upper

2шт.

12

VR2694

CLEVIS - for Ref. 11 and 13

4шт.

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , for VR 2694 3/8" x 1.060"

4шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

13

F30249

ROD - shift lower

2шт.

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

2шт.

131-1

LOCK NUT,1/4"-28, GB

NUT - 1/4" N.F. Esna lock

2шт.

Выбрано товаров: 30
