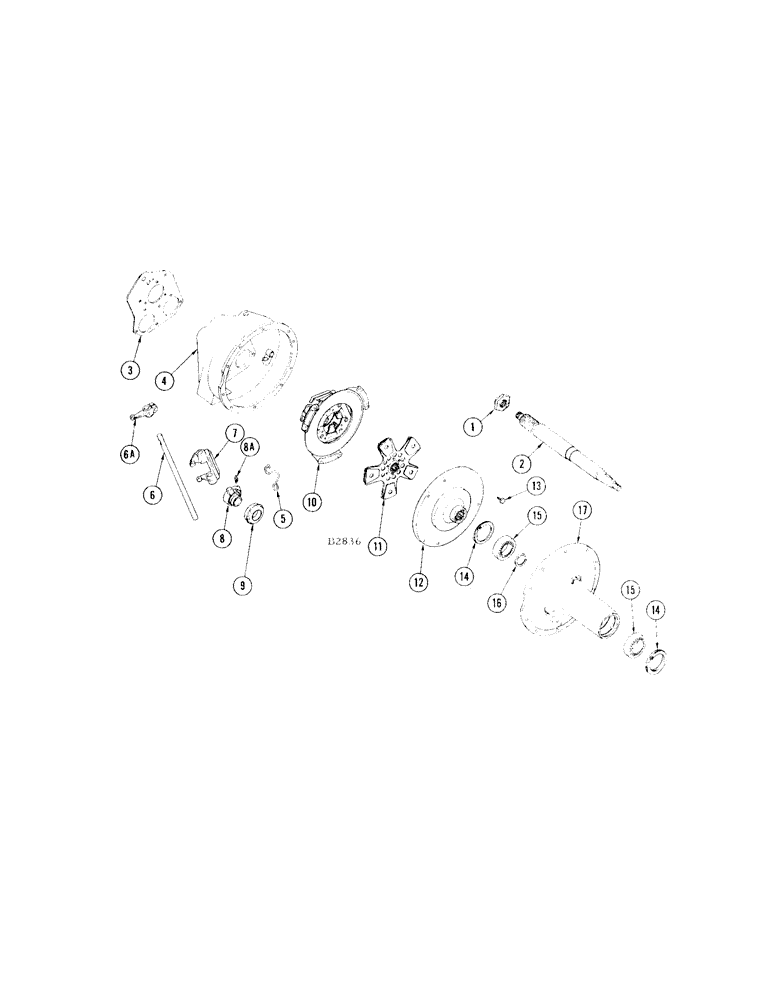

Запчасти Case IH 1665 (12[1]) - CLUTCH SHAFT AND HOUSING (18) - CLUTCH

1

F13162

SCREW

LOCKNUT - adjusting

1шт.

2

F30099

SHAFT - input

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

For F30099 shaft #28, 5/16" x 2 1/8"

1шт.

3

F30317

GASKET - clutch, Serial Range: housing-case

1шт.

4

F1757

HOUSING - clutch

1шт.

F18154

COVER - clutch hand hole

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Clutch hand hole cover Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

92-5

LOCK WASHER,5/16"

hand hole cover cap screw 5/16"

2шт.

113-301

BOLT (SPREADER)

CAPSCREW - clutch, Serial Range: hsg.-trans.

7шт.

113-325

CAPSCREW - clutch, Serial Range: hsg.-trans.

1шт.

113-237

X

CAPSCREW - clutch, Serial Range: hsg.-trans.

1шт.

5

F30314

SPRING - clutch release shaft

1шт.

6

F30318

SHAFT - clutch release with lever

1шт.

114-239

X

BOLT - 3/8" - 24" x 1-3/4" N.F. hex. (Grade 8)

1шт.

129-524

NUT,3/8"-24, G8

1шт.

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - clutch release yoke and lever

2шт.

6a

F3182

LEVER - clutch release

1шт.

7

F1753

YOKE - clutch release

1шт.

8

F88869

SEAL

CARRIER - bearing assembly

1шт.

8a

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - clutch release bearing

1шт.

9

F30315

BEARING - clutch release

1шт.

10

F88650

CLUTCH ASSEMBLY - (11 inch)

1шт.

11

F88649

DISC - clutch driven

1шт.

12

F1734

FLYWHEEL - clutch

1шт.

13

F30100

SCREW - cap, clutch mounting

6шт.

92-6

LOCK WASHER,3/8"

6шт.

14

F13160

SNAP RING,#350, 3.716", Int, Spiral

- (internal)

2шт.

15

F12986

BEARING, BALL

BEARING - input shaft

2шт.

16

A27089

SNAP RING,2.36mm Thk, Ext

SNAP RING - (external)

1шт.

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" pipe

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex.

10шт.

92-6

LOCK WASHER,3/8"

10шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

10шт.

17

F1733

COVER - clutch housing

1шт.
