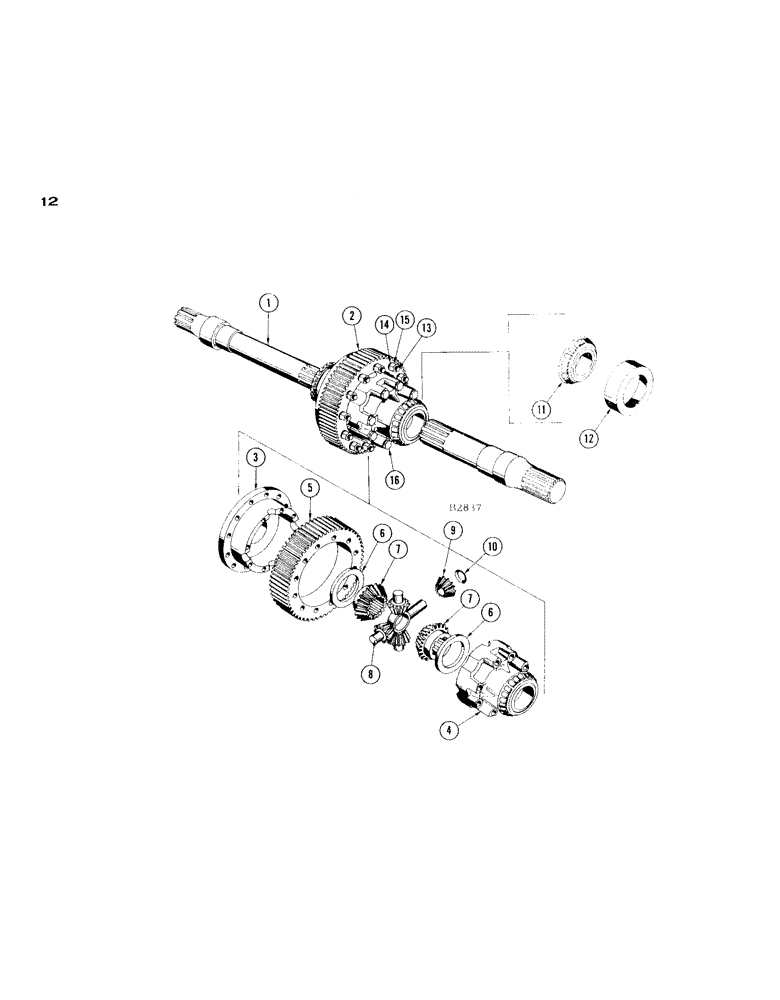

Запчасти Case IH 1665 (12) - DIFFERENTIAL (14) - MAIN GEARBOX & DRIVE

1

F30312

SHAFT - inner axle dr. L.H. long

1шт.

F30313

SHAFT - inner axle dr. R.H. short

1шт.

2

F88907

DIFFERENTIAL - CASE Assy.

1шт.

3

NSS

NOT SOLD SEPARAT

CASE - diff. flange half

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - diff. plain half

1шт.

5

F3177

GEAR - driven, diff.

1шт.

6

F30287

WASHER - side gear thrust

2шт.

7

F3181

GEAR - side

2шт.

A7044

SET SCREW,3/8" - 16 x 7/8"

- clutch release yoke

1шт.

391-616

LOCKWIRE - clutch release yoke screw

1шт.

8

F3169

SPIDER

1шт.

9

F30298

GEAR - pinion

4шт.

10

F30288

WASHER - Pinion thrust

4шт.

11

A26847

ROLLER BEARING,2.5" ID x 0.866"

BEARING - cone

2шт.

12

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - diff. brg.

2шт.

13

F30339

BOLT - diff. ring, Serial Range: gear-case

12шт.

14

D47367

WASHER

- diff. gear to diff. bolt

12шт.

15

129-299

NUT - ring gear to diff. bolt

12шт.

391-633

LOCKWIRE - diff ring, Serial Range: gear-CASE

1шт.

16

F30293

CAP SCREW

8шт.

391-626

LOCKWIRE

1шт.
