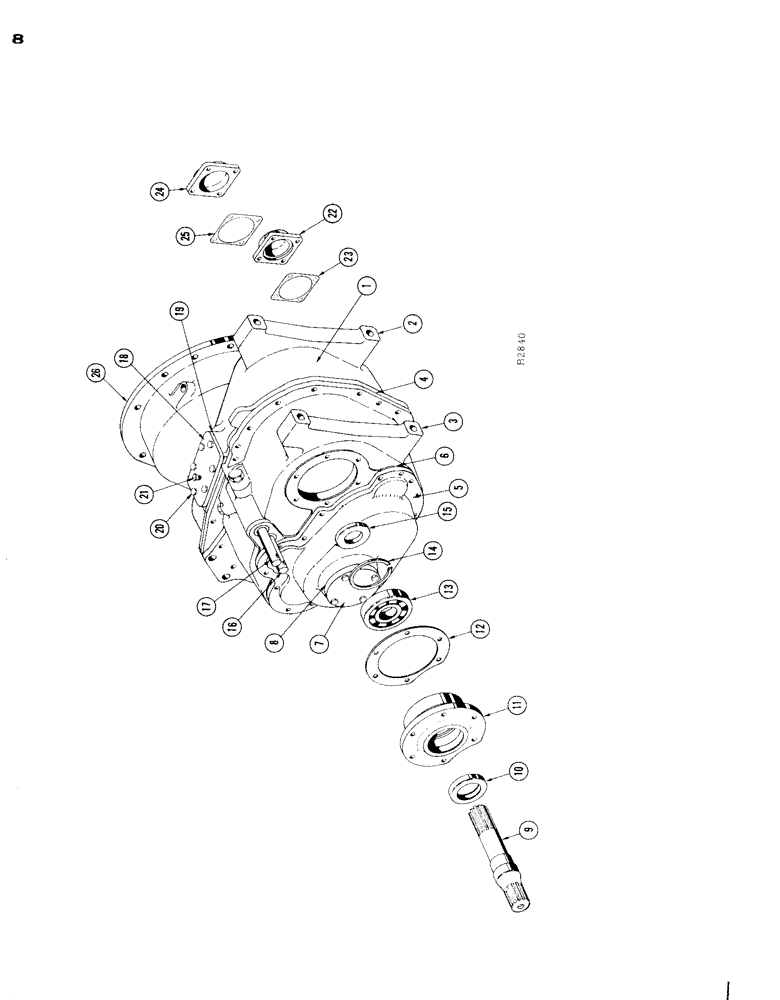

Запчасти Case IH 1665 (08) - TRANSMISSION CASE (14) - MAIN GEARBOX & DRIVE

1

F88904

TRANS. - CASE and cover assy.

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - transmission

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - transmission case

1шт.

F30294

DOWELL

2шт.

4

F30310

GASKET - transmission, Serial Range: case-cover

1шт.

113-222

X

CAPSCREW - case and cover

14шт.

113-246

CAPSCREW - case and cover

4шт.

92-6

LOCK WASHER,3/8"

18шт.

5

F1746

CASE - aux. gear

1шт.

6

F30320

GASKET - aux. case cover

1шт.

113-228

X

CAPSCREW - bearing cage

12шт.

7

F1745

COVER

1шт.

8

F30280

GASKET

1шт.

113-222

X

CAPSCREW

4шт.

92-6

LOCK WASHER,3/8"

4шт.

9

F30313

SHAFT - inner axle drive - R.H. short

1шт.

10

F30290

SEAL - oil (inner axle dr. shaft)

2шт.

11

F1749

CAGE - diff. and inner shaft brg.

2шт.

12

F30306

GASKET - diff. brg. cage

1шт.

113-222

X

CAP SCREW

6шт.

13

F21219

BEARING

- inner axle dr. shaft

2шт.

14

VT4288

SNAP RING - inner axle dr. shaft brg.

2шт.

15

F30297

RETAINER

2шт.

16

F30309

SHAFT - 1st and reverse shift

1шт.

17

F30308

SHAFT - 2nd and 3rd gear shift

1шт.

18

F88868

COVER - trans. gear shift

1шт.

19

F30307

GASKET - trans. gear shift cover

1шт.

20

113-230

X

CAPSCREW - gear shift cover

6шт.

21

A12670

X

OIL BREATHER

1шт.

22

F1751

CAP - inter. shaft brg.

1шт.

23

F30305

GASKET - inter. shaft brg. cap

1шт.

113-230

X

CAPSCREW - inter. shaft bearing cap

4шт.

193-11

LOCK WASHER,Ext Tooth, 7/16"

LOCKWASHER

4шт.

24

F1750

CAP - diff. drive gear brg.

1шт.

25

F30299

SHIM - .003 diff. brg. cage L.H.

2шт.

25

F30300

SHIM - .005 diff. brg. cage L.H.

3шт.

25

F30301

SHIM - .010 diff. brg. cage L.H.

1шт.

133-230

CAPSCREW - diff. Dr. gear bearing cap

4шт.

193-11

LOCK WASHER,Ext Tooth, 7/16"

LOCKWASHER

4шт.

26

F1757

HOUSING - clutch

1шт.

221-15

PLUG,Sq Hd, 3/4"-14

- oil filter

1шт.

221-676

PLUG

- oil drain

1шт.
