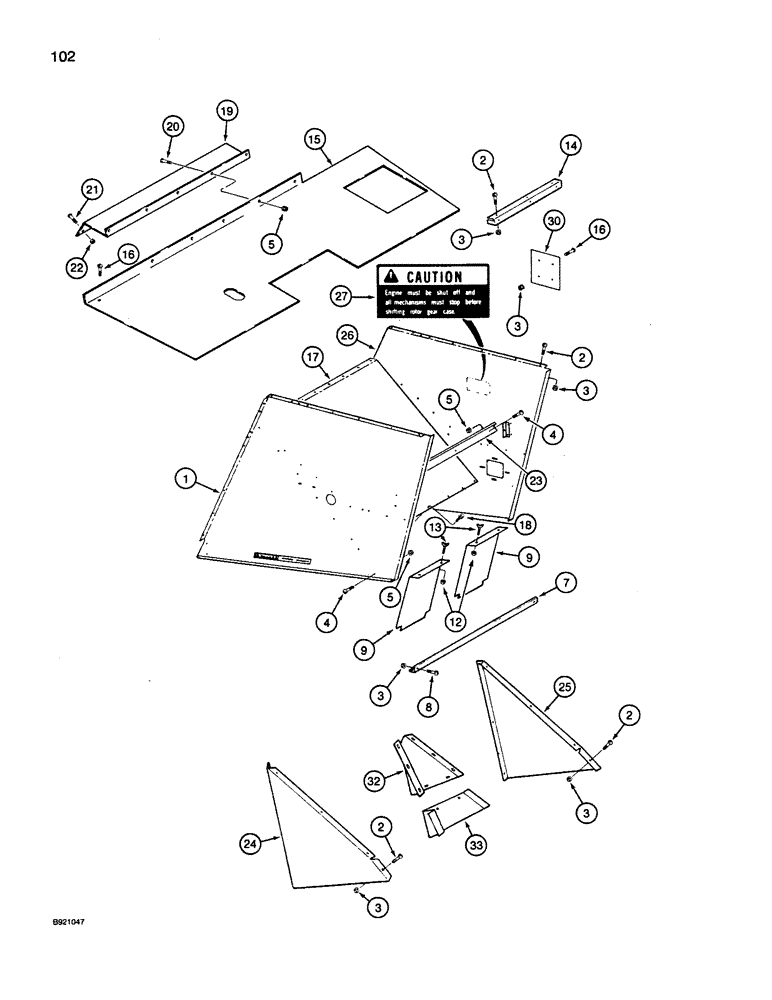

Запчасти Case IH 1660 (102) - SEPARATOR SIDES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

192378C7

SUPPORT ASSY.

SIDE - separator, left

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

23шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

71шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

6шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

14шт.

7

192309C2

ANGLE

- rear support

1шт.

8

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

3шт.

9

1300294C91

SUPPORT

- hood rear access (with decals)

2шт.

12

488837C1

SPRING NUT

- rear hood support

4шт.

13

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

- thumb, rear hood support

4шт.

14

186971C1

ANGLE

SUPPORT - rear deck

1шт.

15

1317744C3

HOOD

SUPPORT - rear deck

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

36шт.

17

1324988C2

PROTECTION PLATE

DEFLECTOR - straw discharge

1шт.

18

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

19

1541957C1

SHEET

SUPPORT - engine deck

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

8шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

BOLT - self-tapping, 5/16 x 3/4 inch

5шт.

22

541310R1

SPRING NUT

- speed, 5/16 inch

5шт.

23

194305C1

ANGLE

- deflector stiffener

1шт.

24

1302105C1

DEFLECTOR

SUPPORT - corner, left

1шт.

25

1302106C1

DEFLECTOR

SUPPORT - corner, right

1шт.

26

1302698C93

SUPPORT

SIDE ASSEMBLY - separator, right

1шт.

27

185442C1

DECAL

- Caution, engine must be shut off

1шт.

30

1312291C1

SHEET

SUPPORT - straw spreader (if equipped)

1шт.

32

1319485C1

DEFLECTOR

- rear hood (corn and grain)

1шт.

33

1321019C1

DEFLECTOR

- guard (corn and grain)

1шт.
