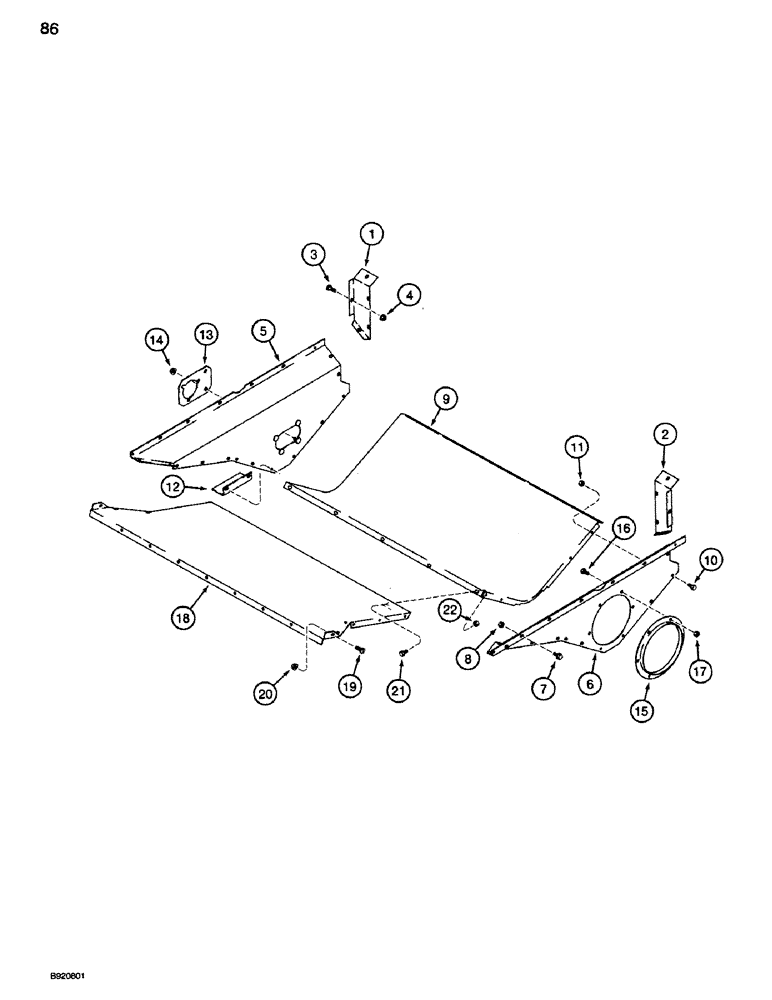

Запчасти Case IH 1660 (086) - GRAIN AUGER TROUGH, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

1541928C1

SUPPORT

BRACKET - fan side support, left-hand

1шт.

2

1541929C1

SUPPORT

BRACKET - fan side support, right-hand

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

10шт.

5

1541635C1

SUPPORT

- side, grain trough, left-hand

1шт.

6

1541637C1

SUPPORT

- side, grain trough, right-hand

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

8

230-4135

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

14шт.

9

1541638C1

TROUGH

- clean grain

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

11

230-4135

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

12шт.

12

1317418C1

ANGLE

SUPPORT - trough, left-hand

1шт.

13

186717C1

PLATE

SUPPORT - collecting auger, left-hand

1шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

15

188285C1

RETAINER

- support, trough, right-hand

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

6шт.

17

230-4135

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

6шт.

18

191716C1

EXTENSION

- grain trough

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

12шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

12шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

5шт.

22

230-4135

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

5шт.
