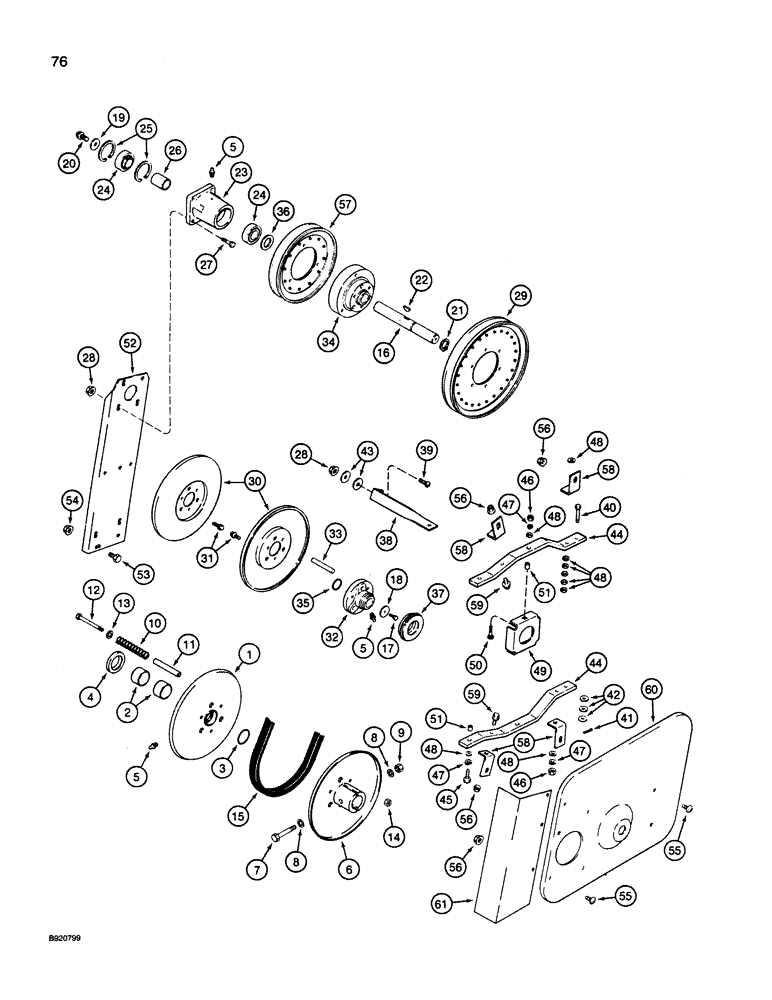

Запчасти Case IH 1660 (076) - CLEANING FAN DRIVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1541552C1

PULLEY ASSY.

PULLEY ASSEMBLY - fan drive, adjustable. 11-1/4 inch OD

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY - fan drive, adjustable. 11-1/4 inch OD

1шт.

2

1541551C1

BUSHING,44.32mm ID x 48.97mm OD x 30.2mm L

- pulley

2шт.

3

259771R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- 1-23/32 ID x 7/32 inch

1шт.

4

1541775C1

SEAL

- grease, lip type

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4-28 inch

3шт.

6

1541553C1

PULLEY ASSY.

PULLEY - fan drive, fixed, 11-1/4 inch OD

1шт.

7

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

8

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

9

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

10

1302181C1

SPRING

- adjustment, fan drive pulley

3шт.

11

1302180C1

SPACER

- adjustment spring

3шт.

12

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

13

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

14

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

15

1541569C1

V-BELT,1816.65 mm L

Drive 1816.65 mm L

1шт.

16

194853C3

SHAFT

- elevator and fan drive

1шт.

17

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

18

668569R1

WASHER

- flat, 11/32 x 1-1/2 x 7/64 inch

1шт.

19

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - retaining, fan bearing

1шт.

20

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flanged

1шт.

21

609053R1

SNAP RING,#125, Ext

Ring, Snap, , inner drive bearing #125, Ext

1шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

Elevator and fan drive shaft #B, 5/16" x 1", HT

1шт.

23

192418C1

HUB

- elevator and fan drive

1шт.

24

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - elevator and fan drive

2шт.

25

360936R1

RING

- snap, fan drive shaft

2шт.

26

152926C1

SPACER

- bearing, special

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

28

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange hex lock, 3/8 inch NC

5шт.

29

REF

INSTRUCTION

PULLEY ASSEMBLY - fan and elevator jackshaft driven, 9-3/4 inch OD (See Page 9A-17)

1шт.

30

183288C1

PULLEY

- fan driven, 11-1/4 inch OD

2шт.

31

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

32

185286C91

HUB

- fan driver adjusting pulley

1шт.

33

25095R1

SPLIT PIN/SAFETY PIN

PIN - dowel, hardened, 1/2 x 3-1/2 inch

3шт.

34

183333C1

HUB

- fan driver fixed pulley

1шт.

35

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- flat, 1-1/4 x 1-1/2 x 1/8 inch

1шт.

36

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - fan bearing retainer

1шт.

37

185094C92

BALL BEARING,50.8mm ID x 93.66mm OD x 20.5mm W

BEARING - fan jackshaft

1шт.

38

186283C1

SUPPORT

- fan drive control

1шт.

39

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

1шт.

40

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch, hardened

1шт.

41

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

43

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

2шт.

44

194850C2

SUPPORT

- fan control

2шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

48

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

49

194852C2

SUPPORT

- fan driver

1шт.

50

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

2шт.

51

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

52

1541632C1

SUPPORT

- fan hub bearing

1шт.

53

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex flange, 3/8 NC x 3/4 inch

4шт.

54

231-5146

FLANGE NUT,3/8"-16

4шт.

55

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

7шт.

56

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

24шт.

57

REF

INSTRUCTION

PULLEY ASSEMBLY - cleaning unit drive, 13 inch OD (see page 9A-3 belt drive - fan jackshaft)

1шт.

58

194756C2

ANGLE

- fan drive pulley shield

4шт.

59

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex, 5/16 NC x 3/4 inch

2шт.

60

194758C2

SUPPORT

- fan jackshaft

1шт.

61

1541922C1

GUARD

SHIELD - elevator drive idler

1шт.
