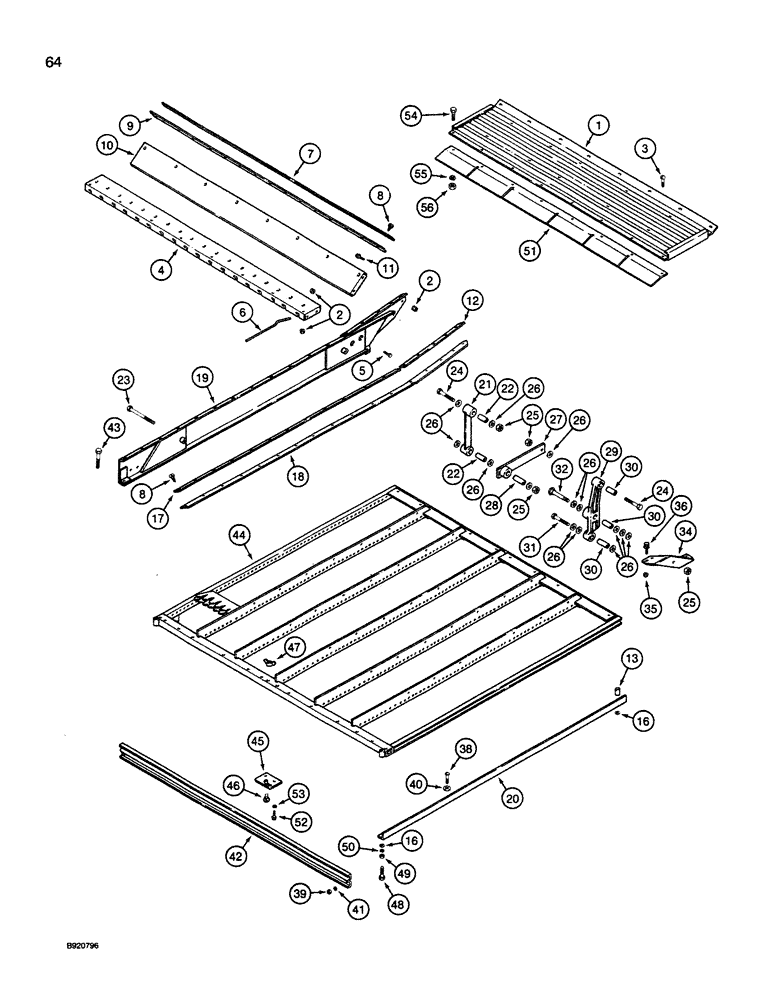

Запчасти Case IH 1660 (064) - CHAFFER SIEVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

1312154C1

SIEVE

PAN - grain

1шт.

2

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

1312156C1

SUPPORT

- chaffer pan

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short

20шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

- auger bed, long

20шт.

7

192048C2

BAR

- front chaffer frame seal

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, self-tapping, 1/4 NC x 1/2 inch

1шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP - chaffer frame front

1шт.

10

192044C1

SUPPORT

- chaffer frame

1шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

12

192052C2

BAR

- chaffer frame seal, short

2шт.

13

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- chaffer sieve support, front

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

4шт.

17

1325332C1

BAR

- chaffer frame seal, long

2шт.

18

1325331C1

SEALING STRIP

STRIP - chaffer frame

2шт.

19

1979206C1

RAIL

- chaffer, left

1шт.

19

1979207C1

RAIL

- chaffer, right

1шт.

20

1325334C2

ANGLE

- chaffer support,right

1шт.

20

1325333C3

SUPPORT

ANGLE - chaffer support, left

1шт.

21

1957455C1

ARM

- rear hanger

2шт.

22

1330324C1

BUSHING

- front hanger

2шт.

23

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

2шт.

24

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

25

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

3шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

28шт.

26

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

27

1330357C1

ARM

- shoe rear

2шт.

28

1330324C1

BUSHING

- shoe arm

1шт.

29

1957460C2

LEVER

- shoe

2шт.

30

1330323C2

BUSHING

- shoe lever

3шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - hex, 5/8 NC x 5 inch, grade 8

2шт.

31

326-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - carriage, 5/8 x 6 inch

2шт.

34

1968827C1

SUPPORT

- shoe lever, left

1шт.

34

1968828C1

SUPPORT

- shoe lever, right

1шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch

4шт.

36

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex, 3/8 x 3/4 inch

4шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

2шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

1322458C3

SUPPORT

CHANNEL - rear

1шт.

43

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.

44

1957314C4

GRAIN SIEVE

SIEVE - 1-5/8 inch extended, closz slat chaffer

1шт.

44

1957316C3

GRAIN SIEVE

SIEVE - 1-1/8 inch extended, adjustable chaffer

1шт.

44

1957315C4

GRAIN SIEVE

SIEVE - 1-5/8 inch extended, corn slat chaffer

1шт.

44

1970516C4

GRAIN SIEVE

SIEVE - Petersen extended chaffer

1шт.

45

186675C1

ADJUSTING PLATE

- chaffer lever

1шт.

46

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

47

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

48

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

49

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

50

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

51

1319259C1

COVER

- chaffer finger

1шт.

52

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - hex washer head, 3/8 x 1-1/4 inch

2шт.

53

492-11038

LOCK WASHER,3/8"

2шт.

54

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

55

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

56

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.
