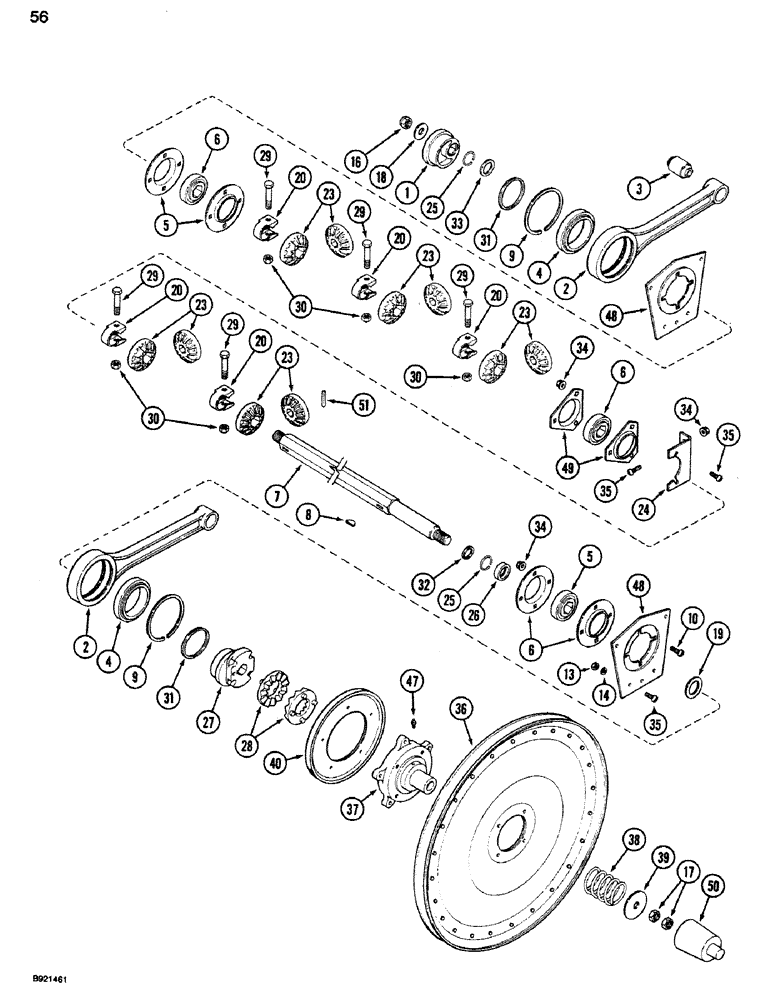

Запчасти Case IH 1660 (056) - SHAKER SHAFT AND AUGER DRIVE, HEAVY DUTY DRIVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING

1

1322573C1

CAM

- shaker shaft pitman drive, left

1шт.

2

1989251C1

ARM

PITMAN - shaker shaft

2шт.

3

1979383C1

BUSHING

- shaker shaft

1шт.

4

1322676C1

BALL BEARING,3.1496" ID x 4.9213" OD x 0.8661"

- shaker shaft pitman

2шт.

5

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - shaker shaft bearing

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - shaker shaft

3шт.

7

1970192C1

SHAFT

- shaker

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

9

1322624C1

SNAP RING

RING - internal snap, pitman bearing, 5-1/4 inch

2шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

8шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

16

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

17

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam

1шт.

19

22482R1

WASHER

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

20

225265R1

CLAMP

- auger bed gear

5шт.

23

1300639C1

GEAR-SET

GEAR SET - auger drive, 14 teeth

5шт.

24

186589C1

SUPPORT

- auger drive center bearing

1шт.

25

575186R1

SNAP RING

RING - shaker shaft pitman (if equipped)

2шт.

26

935856R1

BUSHING

- shaker shaft pitman (if equipped)

1шт.

27

1322574C1

CAM

- shaker shaft pitman drive, right

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

- shaker shaft drive slip clutch

2шт.

29

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

30

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

5шт.

31

1979190C1

RETAINER

RING - retainer, external 2-21/32 inch

2шт.

32

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

- flat, 1-1/16 x 1-1/4 x 1/8 inch

1шт.

33

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

- flat, 29/32 x 1-1/4 x 1/8 inch

1шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

5шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

8шт.

36

REF

INSTRUCTION

PULLEY - shaker shaft driven, right drive (See Page 9A-5)

1шт.

37

1303136C1

HUB

- shaker shaft drive slip clutch

1шт.

38

19302K

SPRING

- shaker shaft drive slip clutch

1шт.

39

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

- slip clutch retainer

1шт.

40

566516R91

PULLEY ASSY.

PULLEY - straw spreader drive

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

48

1302221C1

PLATE

- shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

FLANGE - center shaker shaft bearing

2шт.

50

182544C1

SHIELD

- shaker shaft spring

1шт.

51

617941R1

PIN,5/16" x 2", Coiled

4шт.
