Запчасти Case IH 1660 (090) - TAILINGS AUGER TROUGH, EXTENDED LENGTH CLEANING SYSTEM (66) - THRESHING

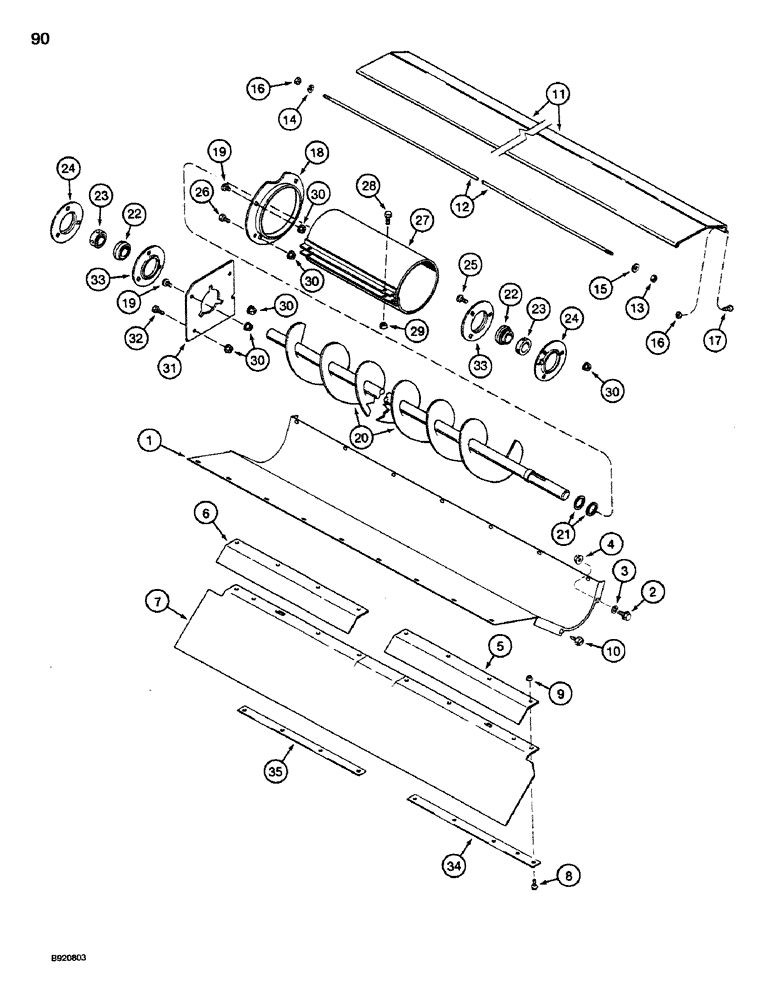

Схема запчастей Case IH 1660 - (090) - TAILINGS AUGER TROUGH, EXTENDED LENGTH CLEANING SYSTEM (66) - THRESHING
7
19
6
33
1
23
21
10
18
17
35
29
13
31
28
16
2
24
16
27
34
15
19
30
30
3
30
9
23
25
22
22
8
33
14
5
4
12
20
30
32
26
30
24
11

Артикул

Название

Примечание

Количество

1

1346956C1

TROUGH

- auger

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

6шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

7шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange lock, 5/16 inch NC

15шт.

5

1347436C1

ANGLE BAR

RETAINER - chaffer seal rear, left (upper)

1шт.

6

1347437C1

ANGLE BAR

RETAINER - chaffer seal rear, right (upper)

1шт.

7

1346999C1

RUBBER SEAL,3.05mm Thk

- rear cross chaffer

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

9

9412083

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

10

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

11

185195C1

DOOR

- cover, trough

1шт.

12

185198C1

ROD

- auger door

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

16

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

10шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

18

160324C2

FLANGE

- mounting, auger cover

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

5шт.

20

191734C1

AUGER

- tailings

1шт.

21

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

22

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- auger

2шт.

23

455102R21

COLLAR

- locking, bearing, with set screw

2шт.

24

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing

2шт.

25

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

6шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

27

192693C1

CLAMP

- extension (Non-Perforated)

1шт.

27

195075C1

SCREEN

- extension (Perforated)

1шт.

28

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

2шт.

29

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

10шт.

31

192357C2

BAR

PLATE - support, bearing

1шт.

32

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

33

937517R1

FLANGE

- bearing

2шт.

34

1338343C1

RETAINER

- chaffer seal rear, left (lower)

1шт.

35

1338344C1

RETAINER

- chaffer seal rear, right (lower)

1шт.

Выбрано товаров: 37
