Запчасти Case IH 1660 (054) - ROTOR DRIVE, PULLEY AND CAM (66) - THRESHING

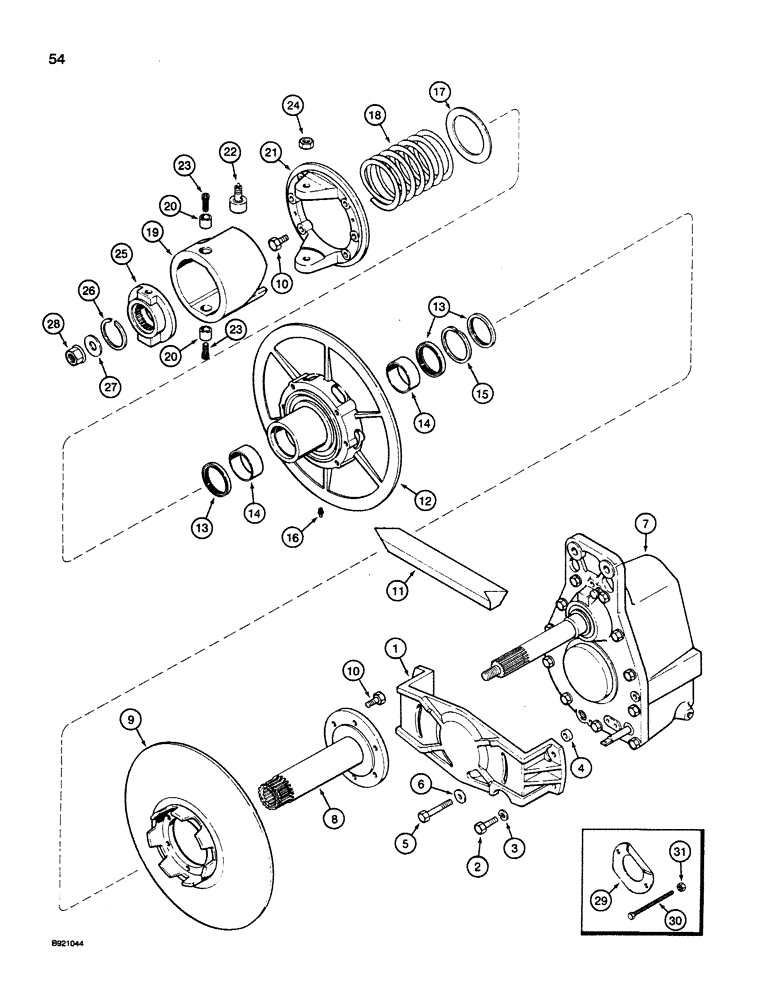

Схема запчастей Case IH 1660 - (054) - ROTOR DRIVE, PULLEY AND CAM (66) - THRESHING
16
19
4
11
23
31
17
28
14
20
20
9
7
1
10
6
2
24
27
3
13
12
18
5
30
26
13
25
21
22
10
23
8
15
29
14

Артикул

Название

Примечание

Количество

1

194058C1

SUPPORT

- gear housing, rear

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

194077C1

SPACER

- gear housing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

6

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

2шт.

7

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (see page 9B-13)

1шт.

8

1315291C2

HUB

- fixed variable pulley (welded)

1шт.

8

184489C1

HUB

- fixed variable pulley (machined forged)

1шт.

9

1315292C2

PULLEY

- fixed variable

1шт.

10

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

12шт.

11

193923C4

V-BELT,2134.68 mm L

Rotor variable drive 2134.68 mm L

1шт.

12

1315294C3

PULLEY

ASSEMBLY - adjustable variable

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT repair, seal and bushing, used to service variable speed pulley

1шт.

13

193965C91

SEAL

- pulley

3шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - pulley

2шт.

15

537602R1

RING

- pulley retaining

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT

1шт.

17

1315521C1

THRUST BEARING

BEARING - rotor drive thrust

1шт.

18

193936C2

SPRING

- rotor drive torque sensing, 7-13/16 inch free length

1шт.

18

184486C1

SPRING

- rotor drive torque sensing, 9-1/32 inch free length

1шт.

184478C1

CAM

YOKE ASSEMBLY - cam follower, torque sensing

1шт.

19

NSS

NOT SOLD SEPARAT

YOKE - cam follower, torque sensing

1шт.

20

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

21

1315344C2

HUB

- cam follower

1шт.

22

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

23

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

24

425-1110

NUT,5/8"-18, G5

2шт.

25

1315297C2

HUB,20T

CAM - rotor drive torque sensing

1шт.

26

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining, hub cam follower

1шт.

27

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

28

1315288C1

FLANGE NUT

- special lock

1шт.

29

1315304C2

PLATE

- torque spring

1шт.

30

186365C1

BOLT

BOLT - torque sensing spring

2шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.

Выбрано товаров: 35
