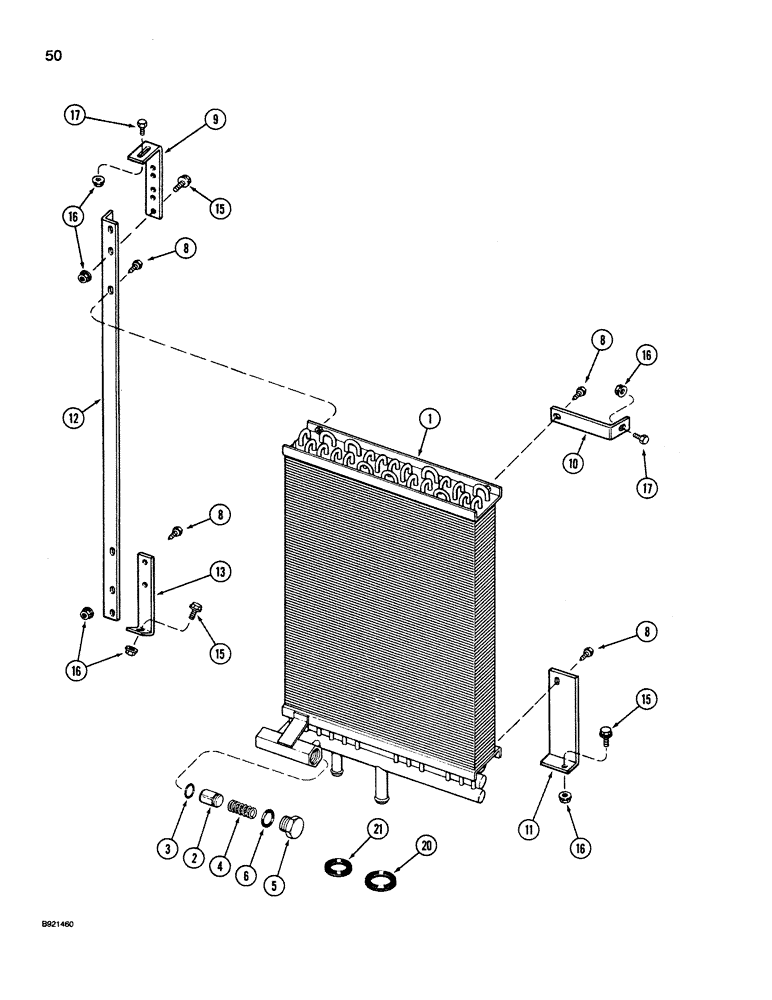

Запчасти Case IH 1660 (050) - AUXILIARY OIL COOLER, RICE COMBINE ONLY (35) - HYDRAULIC SYSTEMS

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, hydraulic

1шт.

2

93198C1

VALVE

- bypass

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

4

A189029

SPRING

- bypass valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

9

1979632C2

SUPPORT

- oil cooler, top left

1шт.

10

1979674C1

SUPPORT

- oil cooler, top right

1шт.

11

1979787C2

SUPPORT

- oil cooler, bottom right

1шт.

12

1979633C2

SUPPORT

- strap, oil cooler, left

1шт.

13

1979727C1

SUPPORT

- oil cooler, bottom left

1шт.

15

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, self-locking, 5/16 NC x 3/4 inch

8шт.

16

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, self-locking, 5/16 inch NC

12шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

2шт.

20

1970461C1

GROMMET

- 1-1/2 x 1-1/8 x 7/16 inch

2шт.

21

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

2шт.
