Запчасти Case IH 1660 (040) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP (29) - HYDROSTATIC DRIVE

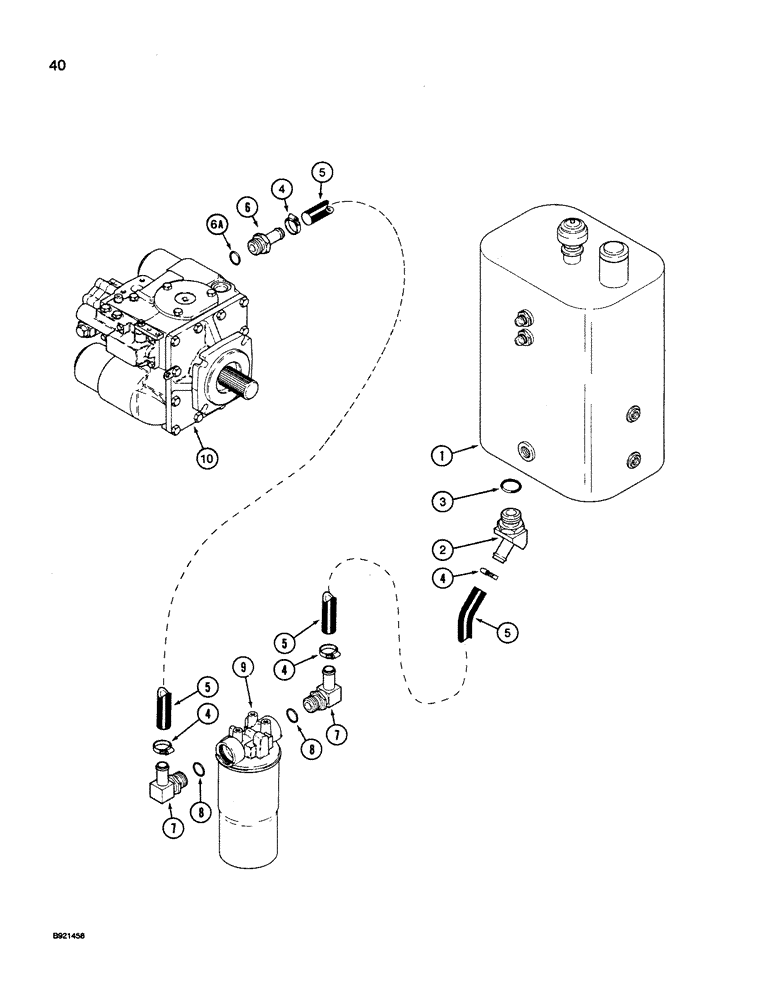

Схема запчастей Case IH 1660 - (040) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP (29) - HYDROSTATIC DRIVE
10
6 a
5
4
5
1
8
5
3
4
5
9
7
2
8
4
6
7
4

Артикул

Название

Примечание

Количество

1

1343660C1

RESERVOIR

ASSEMBLY - hydraulic, (see page 39)

1шт.

2

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj. 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.25/2.125 HD Worm, W/liner

4шт.

5

1541688C1

FLEXIBLE HOSE

HOSE - charge pump suction, 1-1/4 inch

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

6a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

2шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

9

87784C91

FILTER ASSY

FILTER ASSEMBLY - charge pump suction, parts list page 43)

1шт.

10

1343716C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydrostatic, parts list pages 23 - 31

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1660 (S/N JJC0038346 & AFTER), Reman for New P/N 1343716C1

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

Выбрано товаров: 13
