Запчасти Case IH 1660 (032) - HYDROSTATIC MOTOR, SINGLE SPEED (29) - HYDROSTATIC DRIVE

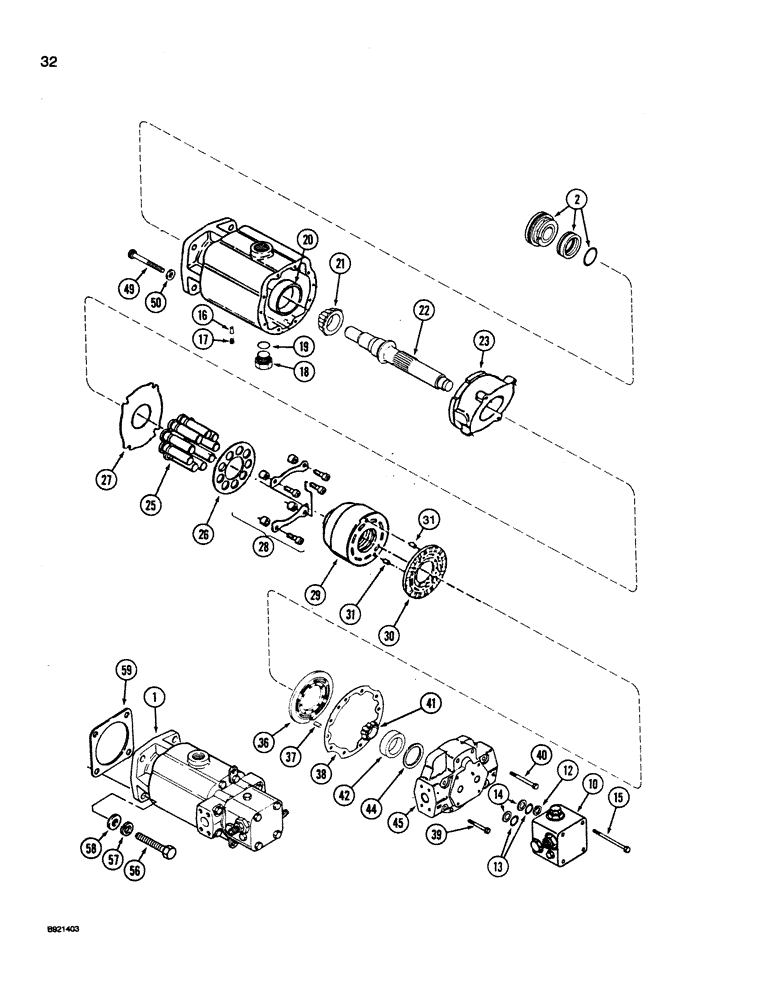

Схема запчастей Case IH 1660 - (032) - HYDROSTATIC MOTOR, SINGLE SPEED (29) - HYDROSTATIC DRIVE
58
13
36
27
50
45
59
37
17
14
56
28
44
21
23
57
31
42
30
29
26
22
15
2
39
16
18
40
25
1
49
19
20
10
41
12
38
31

Артикул

Название

Примечание

Количество

1

1343609C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic (New)

1шт.

1343610C1

REMAN-HYDROSTAT MOTO

MOTOR ASSEMBLY - hydrostatic (Remanufactured)

1шт.

1343611C1

CORE-HYDROSTAT MOTOR

RETURN NUMBER - motor (Use this part number to return motor core for credit)

1шт.

2

1346205C1

SEAL KIT

SEAL - shaft, three piece

1шт.

10

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve (See Page 37)

1шт.

140747C92

SEAL KIT

KIT - valve block seal

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

- backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened, 5/16 inch

1шт.

17

444688

PLUG

- solid head, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller, output shaft

1шт.

22

1980137C1

SHAFT

- output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1980138C1

KIT

- rotating, cylinder

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

36

1980139C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

1980140C1

GASKET,0.38mm Thk

- end cover

1шт.

39

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch

2шт.

40

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch

6шт.

1343609C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic (Continued)

1шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, output shaft, 1-13/16 inch ID

1шт.

42

530741R1

BEARING CUP

CUP - bearing, output shaft, 2-17/32 inch OD

1шт.

142398C91

SHIM KIT

KIT - bearing shim

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

58

283856C1

WASHER

- flat, 17/32 x 1 x 5/64 inch

4шт.

59

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

Выбрано товаров: 49
