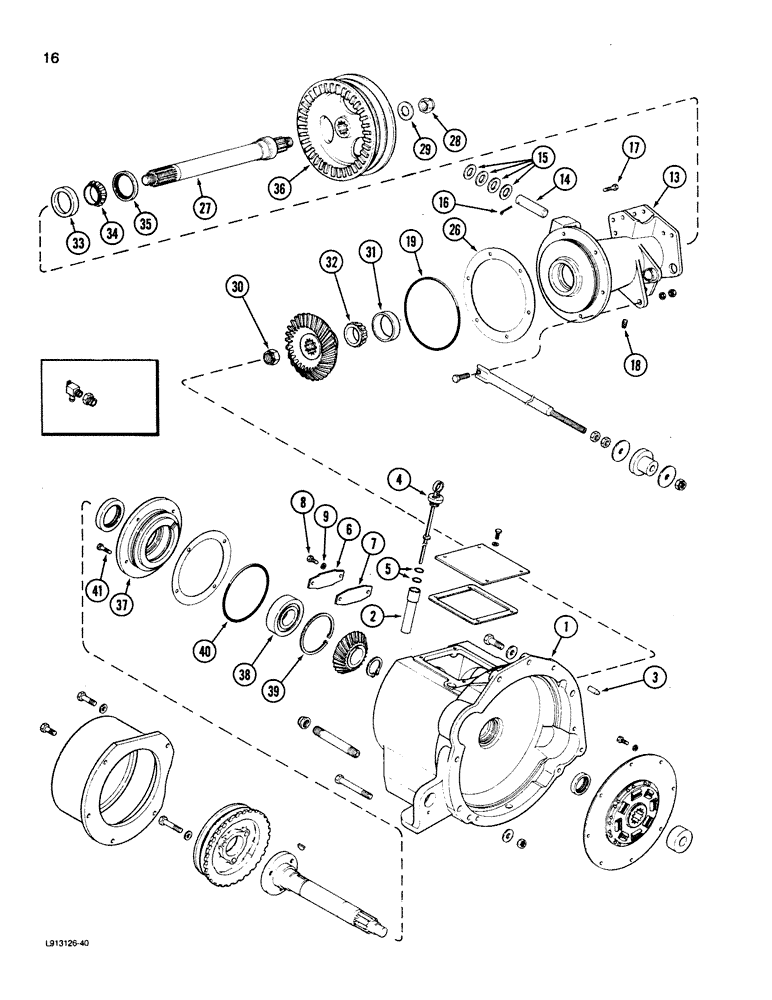

Запчасти Case IH 1660 (016) - POWER TAKE-OFF DRIVE (14) - MAIN GEARBOX & DRIVE

1

184433C3

HOUSING

- power takeoff drive

1шт.

2

188072C1

TUBE,25.4 mm OD, 127 mm Length

- dipstick, oil

1шт.

3

1330136C1

DOWEL

PIN - dowel, locating

2шт.

4

188073C91

DIPSTICK

- oil level

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

6

185056C1

COVER

- bolt hole

1шт.

7

185057C2

GASKET,0.91mm Thk

- access cover

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

13

1329747C1

HOUSING

- separator drive

1шт.

14

195439C2

PIN,25.29mm OD x 101.6mm L

- separator drive housing

1шт.

15

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

18

50057K

PLUG

- separator housing

1шт.

19

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

- separator housing, 8 x 8-1/4 x 1/8 inch

1шт.

188195C1

SHIM KIT

KIT - separator drive housing shim

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, separator housing

1шт.

27

1329745C1

SHAFT

- separator drive

1шт.

28

18521R1

LOCK NUT,1"-14, G8

NUT - hex lock, 1 inch NF

1шт.

29

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

- flat, 1-1/16 x 2 x 7/32 inch

1шт.

30

194737C1

LOCK NUT

- hex, 1 inch NF

1шт.

31

ST987

BEARING CUP

CUP - bearing, 3-17/64 inch OD, separator housing rear

1шт.

32

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING - tapered roller, 3-17/64 inch ID, separator housing rear

1шт.

33

376463C1

BEARING CUP

CUP - bearing, 3-15/64 inch OD, separator housing front

1шт.

34

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

- tapered roller, 2 inch ID, separator housing front

1шт.

35

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

- separator housing

1шт.

36

191461C1

PULLEY,110mm OD

- separator drive, 11 inch OD

1шт.

37

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing

1шт.

38

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - ball, drive shaft, 4-23/32 inch OD, standard

1шт.

38

1541766C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - ball, drive shaft, 4-23/32 inch OD, optional

1шт.

39

27822R1

SNAP RING,4.78", Int, #475

RING - internal retaining, 5-7/32 inch

1шт.

40

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

41

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.
