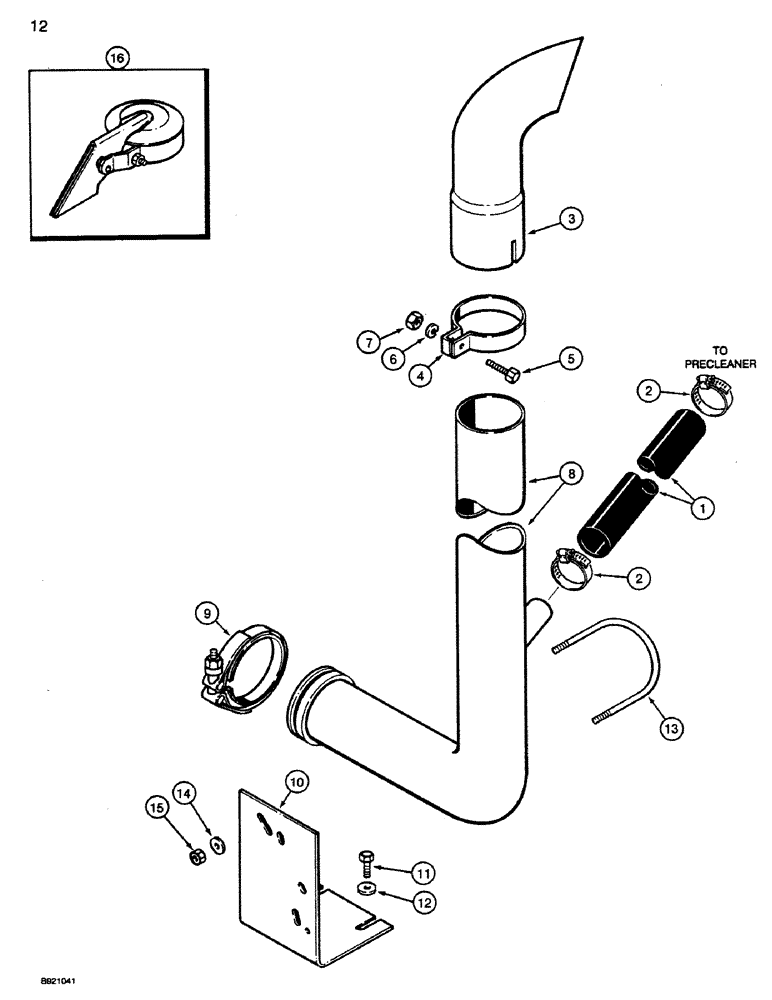

Запчасти Case IH 1660 (012) - EXHAUST SYSTEM (10) - ENGINE

1

1541948C1

LARGE HOSE

HOSE - exhaust ejector, 21-5/8 inch long, order 407001R1, Serial Range: cut-length

1шт.

2

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose

2шт.

3

1275833C1

TUBE

PIPE - exhaust elbow, if used

1шт.

4

1321280C1

CLAMP

- exhaust pipe elbow, if used

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

1шт.

6

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

8

103758A1

TUBE,88.9 mm Diameter, 620, 290 mm Length

- aspirator

1шт.

9

A170807

CLAMP,102mm ID

tube retaining

1шт.

10

84569C5

ANGLE

BRACKET - tube support

1шт.

11

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

12

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

13

S93558

U-BOLT

- 3/8 inch NC

1шт.

14

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

15

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

16

1541960C1

CAP

- weather, exhaust, if used

1шт.
