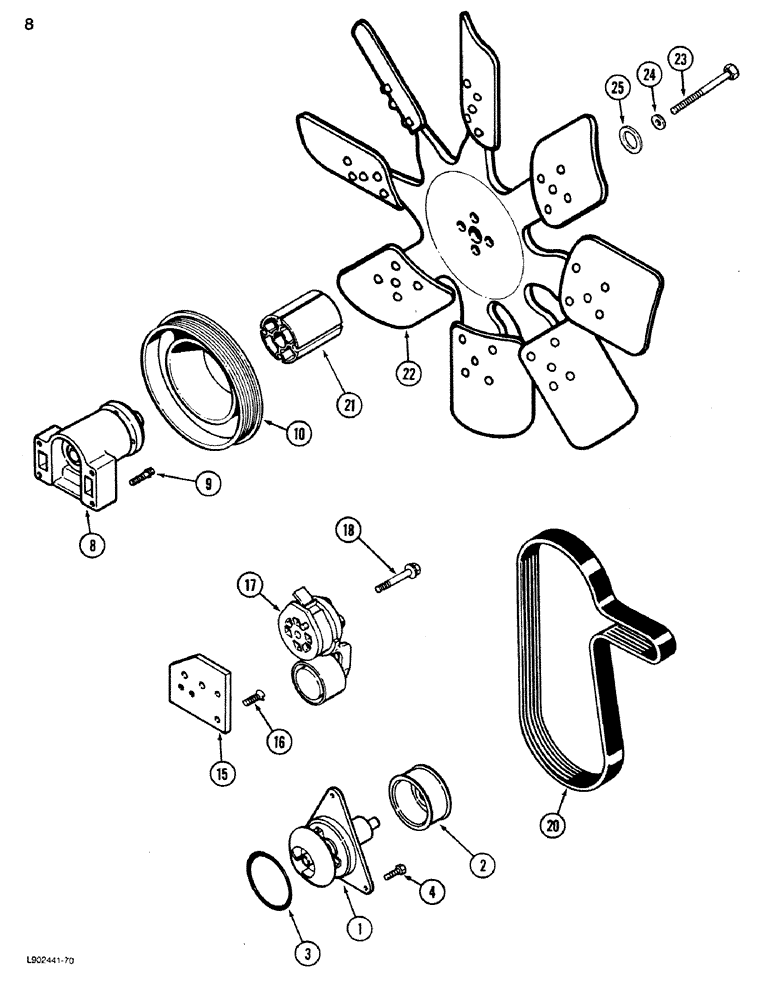

Запчасти Case IH 1660 (008) - WATER PUMP SYSTEM, 6T-830 ENGINE (10) - ENGINE

AR77704

PUMP, WATER

PUMP - water, remanufactured, North America only, components parts shown on this page do not apply to the remanufactured assembly

1шт.

J800976R

REMAN-WATER PUMP

1660 (S/N JJC0038346 & AFTER) 6T-830 ENGINE, Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER - water pump, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

A77704

PUMP, WATER

KIT - repair, water pump (replaces A77579)

1шт.

J800976R

REMAN-WATER PUMP

1660 (S/N JJC0038346 & AFTER) 6T-830 ENGINE, Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

8

J910738

SUPPORT ASSY.

SUPPORT - fan

1шт.

9

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

4шт.

10

J914462

PULLEY,163mm OD

- fan

1шт.

15

J919932

SUPPORT

BRACKET - tensioner mounting (J919932 stamped on part)

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm

2шт.

17

J914086

BELT TENSIONER

TENSIONER - belt

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

20

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan Drive 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.

21

A184548

SPACER,Fan, 89/90mm Thk

- fan

1шт.

22

1547933C1

FAN

- engine, puller, 650 mm OD, part number stamped on fan blade

1шт.

23

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

4шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

4шт.

25

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

- flat, 13/32 x 1-1/4 x 15/64 inch

4шт.
