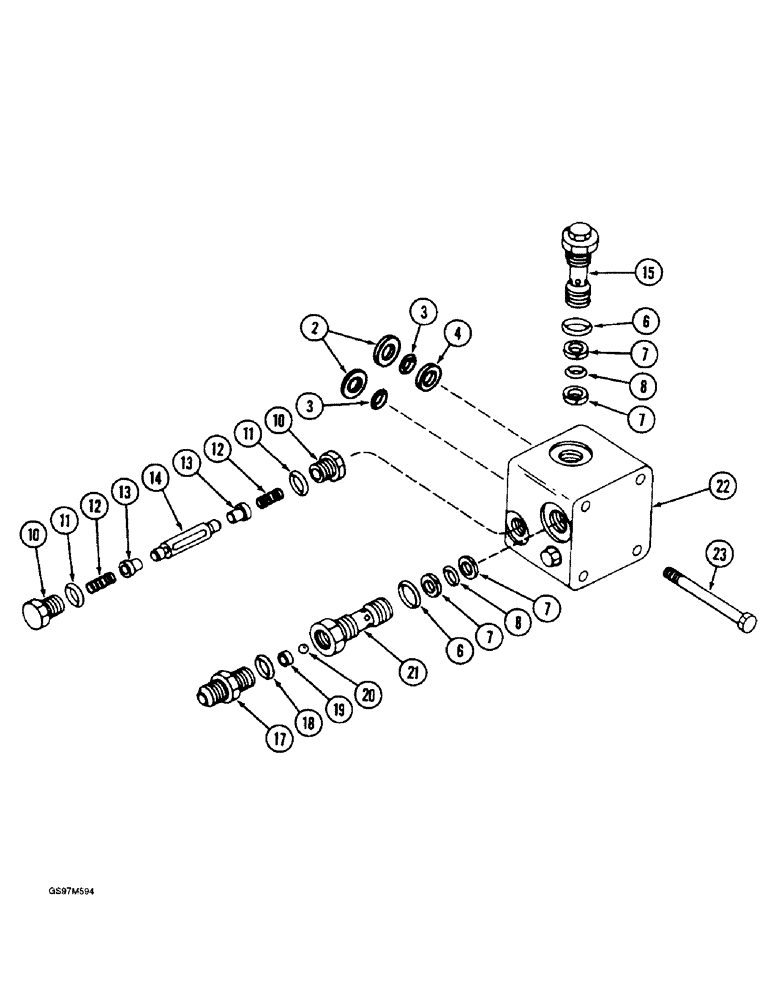

Запчасти Case IH 1660 (6-46) - HYDROSTATIC MOTOR, SINGLE SPEED, RELIEF VALVE BLOCK (03) - POWER TRAIN

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve, Includes: Ref. 2 - 22 and kit

1шт.

140747C92

SEAL KIT

KIT - seal replacement, Includes: Ref. 2 - 8

1шт.

2

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- quad, 3/4 x 7/8 x 1/16 inch, order kit 140747C92

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

631458C1

RING

- backup

2шт.

393885R91

GASKET KIT

KIT - relief valve seal

3шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

393887R1

BACK-UP RING

RING - backup

2шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

145559C91

KIT

- shuttle valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - valve, order kit 145559C91

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

12

145560C1

SPRING

- shuttle valve

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE - shuttle, order kit 145559C91

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - shuttle, order kit 145559C91

1шт.

15

140761C1

VALVE PRESSURE RELIE

VALVE Assy - low pressure relief, Incl. Ref. 17 - 21

1шт.

1971415C2

VALVE

ASSEMBLY - feathering relief, Includes: Ref. 17 - 21

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - special, order valve assembly

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch OD tube, order valve assembly

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - ball guide, order valve assembly

1шт.

20

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4 inch, order valve assembly

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, order valve assembly

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve, order block assembly 1971432C2

1шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.
