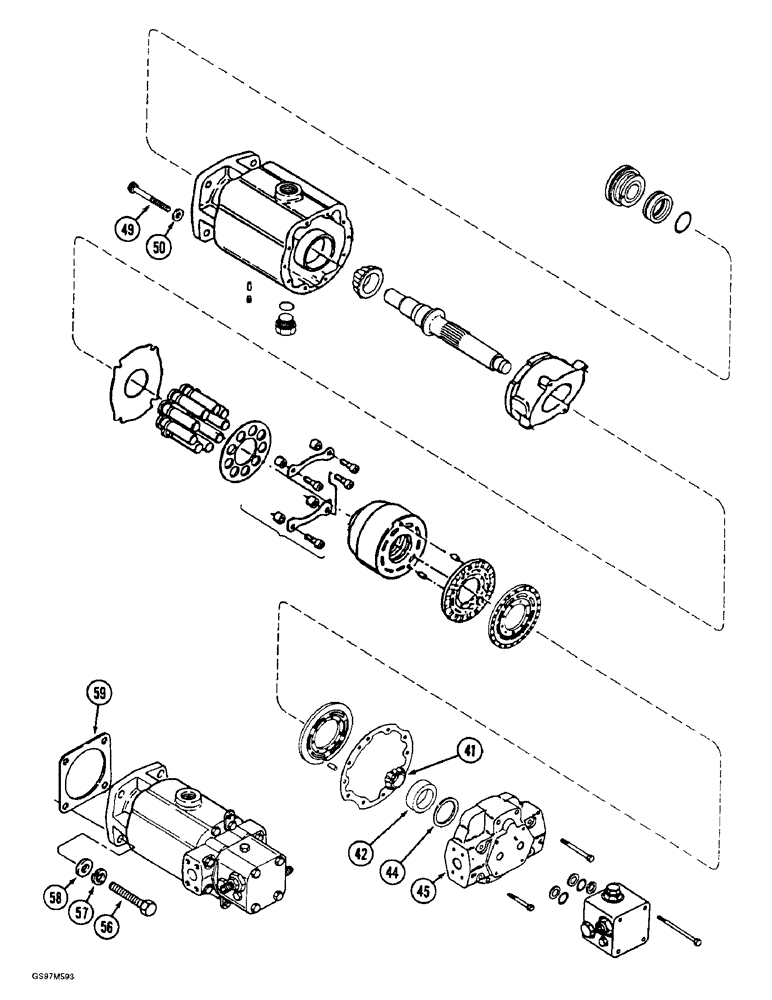

Запчасти Case IH 1660 (6-44) - HYDROSTATIC MOTOR, SINGLE SPEED, P.I.N. JJC0041567 & AFTER, MODLS W CROSS FLOW CLEANING SYS (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, Includes: Ref. 41 - 50 and item 413-824 and 2 - 40 on Figure 6-42

1шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID, output shaft

1шт.

42

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD, output shaft

1шт.

142398C91

SHIM KIT

KIT - shim, bearing, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, order kit 142398C91

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 142398C91

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 142398C91

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 142398C91

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 142398C91

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, order kit 142398C91

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end, order motor assembly

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

58

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

59

166506C1

GASKET,0.81mm Thk

- mounting

1шт.
