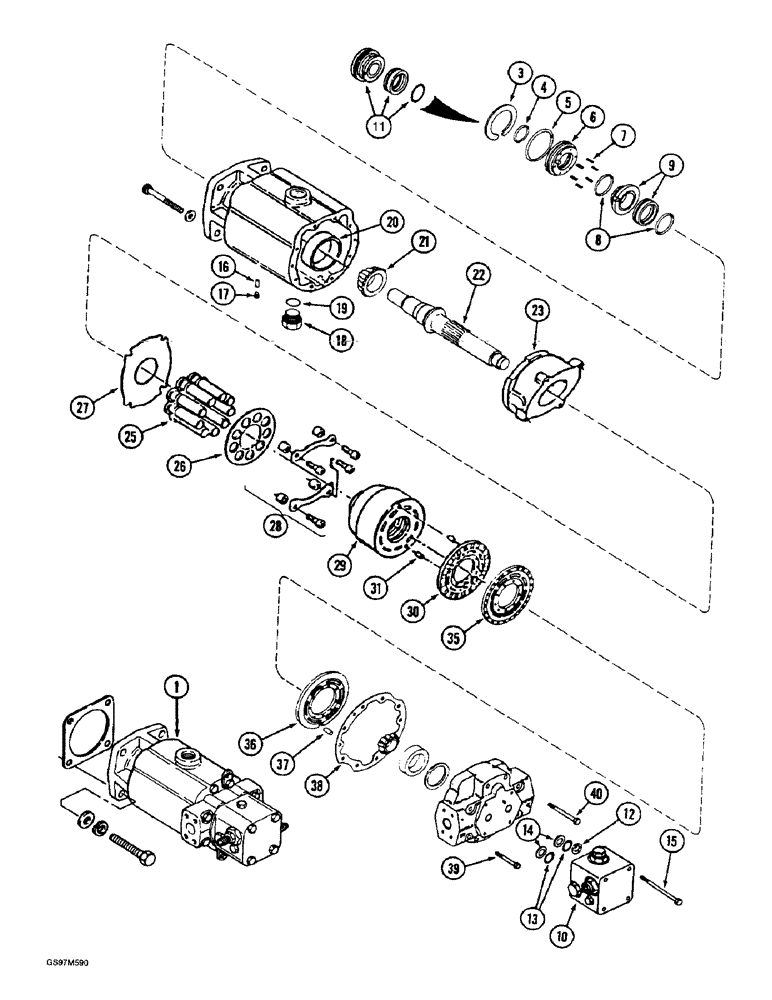

Запчасти Case IH 1660 (6-38) - HYDROSTATIC MOTOR, SINGLE SPEED, PRIOR TO P.I.N. JJC0041567, MODELS W/OUT CROSS FLOW CLEANING SYSTEM (03) - POWER TRAIN

1

1958081C1

PUMP, HYDROSTATIC

MOTOR ASSEMBLY - hydrostatic, new, Includes: Ref. 3 - 40 and 41 - 50 on Figure 6-40

1шт.

87411135R

REMAN-HYDROSTAT PUMP

1660 (S/N JJC0038346 & AFTER), PRIOR TO P.I.N. JJC0041567 (1/86-12/92), Reman For New P/N 1958081C1

1шт.

87411135C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1958082C1

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, Includes: Ref. 3 - 40 and 41 - 50 on Figure 6-40

1шт.

87411135R

REMAN-HYDROSTAT PUMP

1660 (S/N JJC0038346 & AFTER) PRIOR TO P.I.N. JJC0041567 (1/86-12/92), Reman For New P/N 1958082C1

1шт.

87411135C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1958083C1

CORE-MOTOR HYDRAULIC

RETURN NUMBER - use this part number to return motor core for credit when using a remanufactured assembly

1шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, three-piece, no longer available, order seal kit 1346205C1, item 11, Includes: Ref. 3 - 9

1шт.

3

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

4

S98648

O-RING

- 1-3/8 ID x 1/16 inch wide

1шт.

5

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal, order seal assembly 142518C92

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - shaft seal, order seal assembly 142518C92

6шт.

8

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft, order seal assembly 142518C92

1шт.

10

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve, parts list Figure 6-46

1шт.

140747C92

SEAL KIT

KIT - seal replacement, Includes: Ref. 12 - 14

1шт.

11

1346205C1

SEAL KIT

KIT - seal, shaft, Includes: Ref. 12 - 14

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- quad, 3/4 x 7/8 x 1/16 inch, order kit 140747C92

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

- backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN - dowel, 5/16 x 1 inch, hardened

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT, Includes: Ref. 19

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 19 Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller, output shaft

1шт.

22

1980137C1

SHAFT

- output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed, order motor assembly

1шт.

1980138C1

KIT

- rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block, order kit 1980138C1

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining, order kit 1980138C1

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear, order kit 1980138C1

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down, order kit 1980138C1

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder, order kit 1980138C1

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing, order kit 1980138C1

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

35

142395C1

PLATE

- bearing

1шт.

36

1980139C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

1980140C1

GASKET,0.38mm Thk

- end cover

1шт.

39

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

40

24855R1

BOLT,Hex, 7/16" - 14 x 3", Gr 8

- hex, 7/16 NC x 2-3/4 inch

6шт.
