Запчасти Case IH 1660 (6-36) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN

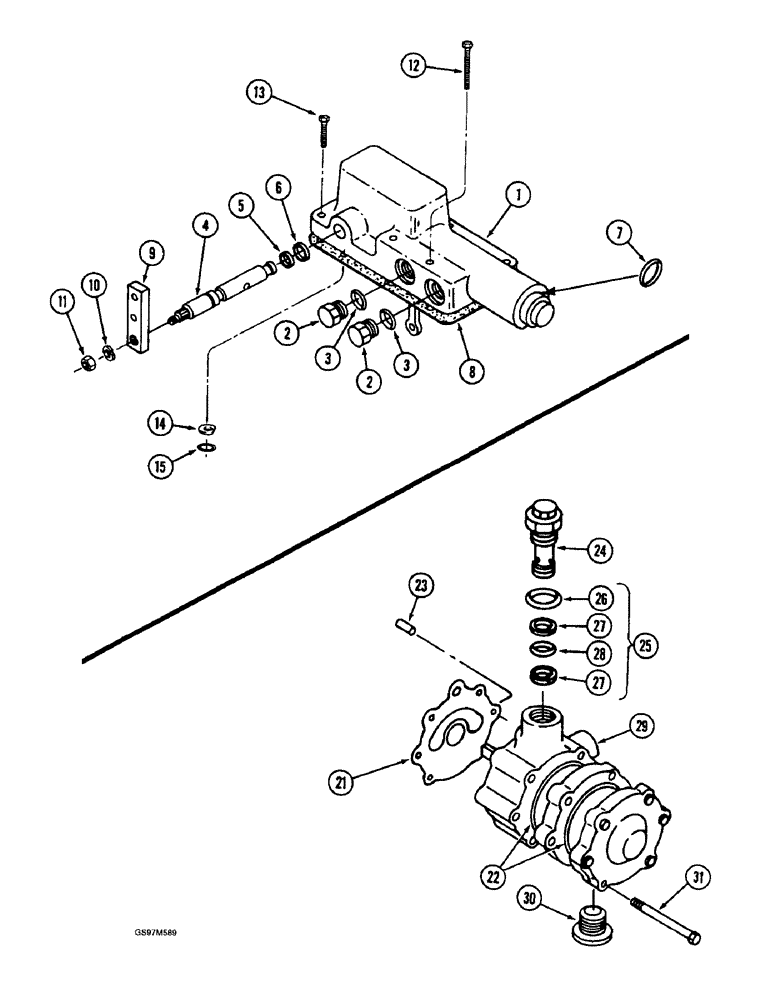

Схема запчастей Case IH 1660 - (6-36) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN
6
28
21
24
2
22
10
3
30
12
2
5
4
8
14
27
13
11
7
26
1
9
29
15
23
3
31
25
27

Артикул

Название

Примечание

Количество

133755C94

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 133755C94

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 3 Hex Soc, 9/16"-18 ORB

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

4

1978048C2

SHAFT

ASSEMBLY - valve, Includes: Ref. 5

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

SEAL - shaft, if used

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk (Replaces O-ring 80269C1)

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

1343662C1

ORIFICE

- control valve, 0.057 inch

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

133761C91

PUMP

ASSEMBLY - charge, corn and grain, 8 gallon, models without cross flow cleaning system, Includes: Ref. 21 - 30A

1шт.

92740C2

PUMP

ASSEMBLY - charge, 10 gallon, models with cross flow cleaning system, Includes: Ref. 21 - 30A

1шт.

21

133760C2

GASKET

- charge pump (Replaces gasket 1986882C1)

1шт.

22

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Charge pump

2шт.

23

140754C1

PIN

- dowel, 5/16 x 5/8 inch, charge pump

2шт.

24

140771C1

VALVE

- relief, low pressure, charge pump

1шт.

25

393885R91

GASKET KIT

KIT - relief valve seal, charge pump, Includes: Ref. 26 - 28

1шт.

26

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Charge pump

1шт.

27

393887R1

BACK-UP RING

RING - backup, charge pump

2шт.

28

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Charge pump -117, 90 Duro, .799" ID x .103" Thk

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly, charge pump

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Charge pump, Incl. Ref. 30A Hex Hd, 7/16"-20 ORB

1шт.

30a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Not shown, charge pump

1шт.

31

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

charge pump Hex, 5/16"-18 x 3 1/2", G5

4шт.

Выбрано товаров: 30
