Запчасти Case IH 1660 (6-30) - HYDROSTATIC PUMP, RICE COMBINE, PRIOR TO P.I.N. JJC0041567 (CONTD) (03) - POWER TRAIN

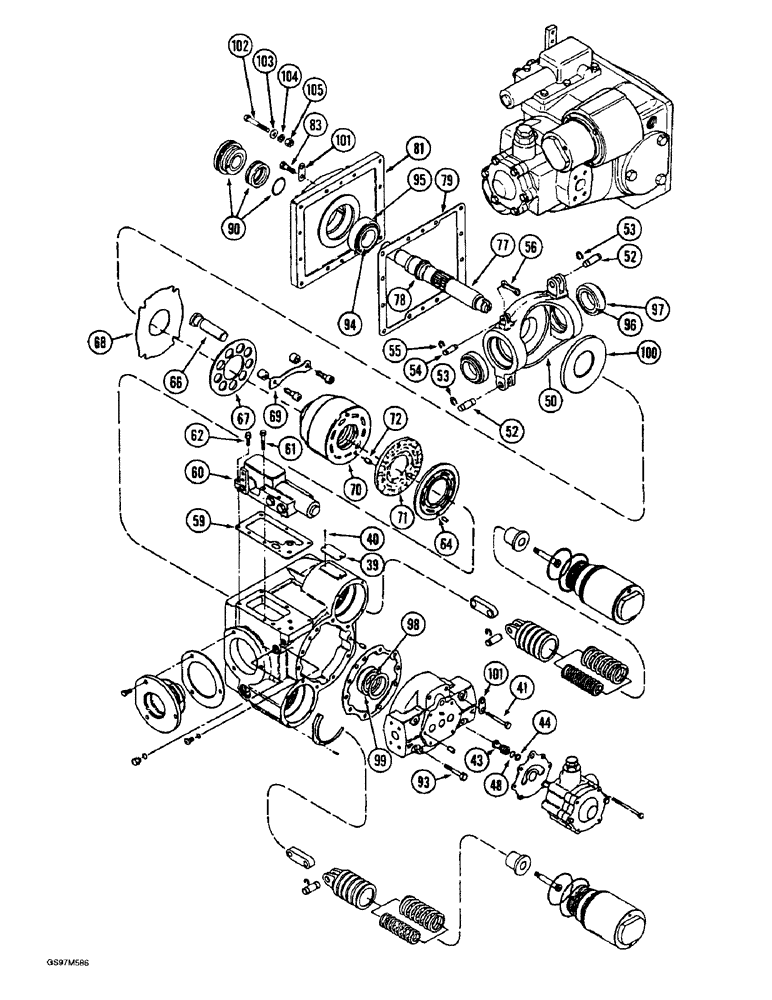

Схема запчастей Case IH 1660 - (6-30) - HYDROSTATIC PUMP, RICE COMBINE, PRIOR TO P.I.N. JJC0041567 (CONTD) (03) - POWER TRAIN
99
60
62
101
44
83
79
94
52
61
53
78
52
70
64
72
97
43
55
56
59
101
100
104
71
48
39
96
66
69
103
98
41
77
93
53
54
95
67
50
81
68
90
40
102
105

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, Includes: Ref. 39 - 99 and 2 - 38 on Figure 6-30

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification, order pump assembly

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate, order pump assembly

2шт.

41

24855R1

BOLT,Hex, 7/16" - 14 x 3", Gr 8

- hex, 7/16 NC x 3 inch (Replaces bolt 373084R1)

6шт.

43

140769C1

CHECK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 44 & 48

2шт.

44

140770C1

RING

- backup

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

50

1980171C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot

2шт.

53

142408C1

RETAINER

- servo

4шт.

54

140765C1

PIN

- pivot, control valve

1шт.

55

100-1125

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

56

142402C1

LINK

- connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

133755C94

VALVE

ASSEMBLY - control, parts list Figure 6-36

1шт.

61

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

- rotating, cylinder, Includes: Ref. 66 - 72

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block, order kit 1980138C1

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining, order kit 1980138C1

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear, order kit 1980138C1

1шт.

69

NSS

NOT SOLD SEPARAT

KIT - piston, hold-down, order kit 1980138C1

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder, order kit 1980138C1

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing, order kit 1980138C1

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980169C1

SHAFT

ASSEMBLY - input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap, order shaft assembly 1980169C1

1шт.

79

142399C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting, order pump assembly

1шт.

83

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

12шт.

90

1346205C1

SEAL KIT

KIT - seal, shaft, four piece

1шт.

93

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, grade 8

2шт.

94

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller, input shaft

1шт.

95

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, input shaft

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, 1-25/32 inch ID, trunnion

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD

2шт.

98

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID

1шт.

99

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping, shown for reference only

2шт.

102

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

103

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

Выбрано товаров: 44
