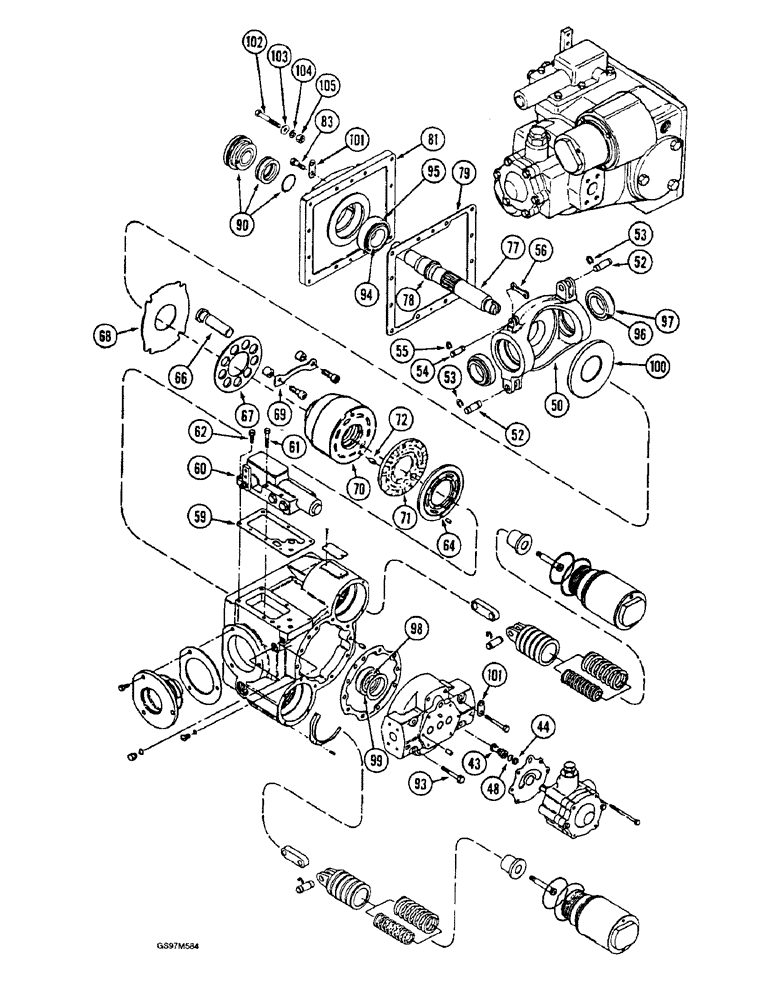

Запчасти Case IH 1660 (6-26) - HYDROSTATIC PUMP, CORN AND GRAIN COMBINE, P.I.N. JJC0041567 AND AFTER (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, Includes: Ref. 43 - 99 and 2 - 41 on Figure 6-24

1шт.

43

140769C1

CHECK VALVE

VALVE - check

2шт.

44

140770C1

RING

- backup

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Check valve -113, 90 Duro, .549" ID x .103" Thk

2шт.

50

1980171C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- pivot, control valve

1шт.

55

100-1125

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

56

142402C1

LINK

- connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

133755C94

VALVE

ASSEMBLY - control, parts list Figure 6 - 32

1шт.

1272750C1

ORIFICE

- 0.057 inch, models without cross flow cleaning system

5шт.

61

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

- rotating, cylinder, Includes: Ref. 66 - 72

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block, order kit 1980138C1

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining, order kit 1980138C1

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear, order kit 1980138C1

1шт.

69

NSS

NOT SOLD SEPARAT

KIT - hold down, order kit 1980138C1

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder, order kit 1980138C1

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing, order kit 1980138C1

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980169C1

SHAFT

ASSEMBLY - input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap, order shaft assembly 1980169C1

1шт.

79

142399C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting, order pump assembly

1шт.

83

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

12шт.

90

1346205C1

SEAL KIT

KIT - seal, shaft, four piece

1шт.

93

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, grade 8

2шт.

94

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller, input shaft

1шт.

95

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, input shaft

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, 1-25/32 inch ID, trunnion

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD, trunnion

2шт.

98

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID

1шт.

99

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD, input shaft

1шт.

100

80369C1

PLATE

- thrust

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping, shown for reference only

2шт.

102

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

103

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
