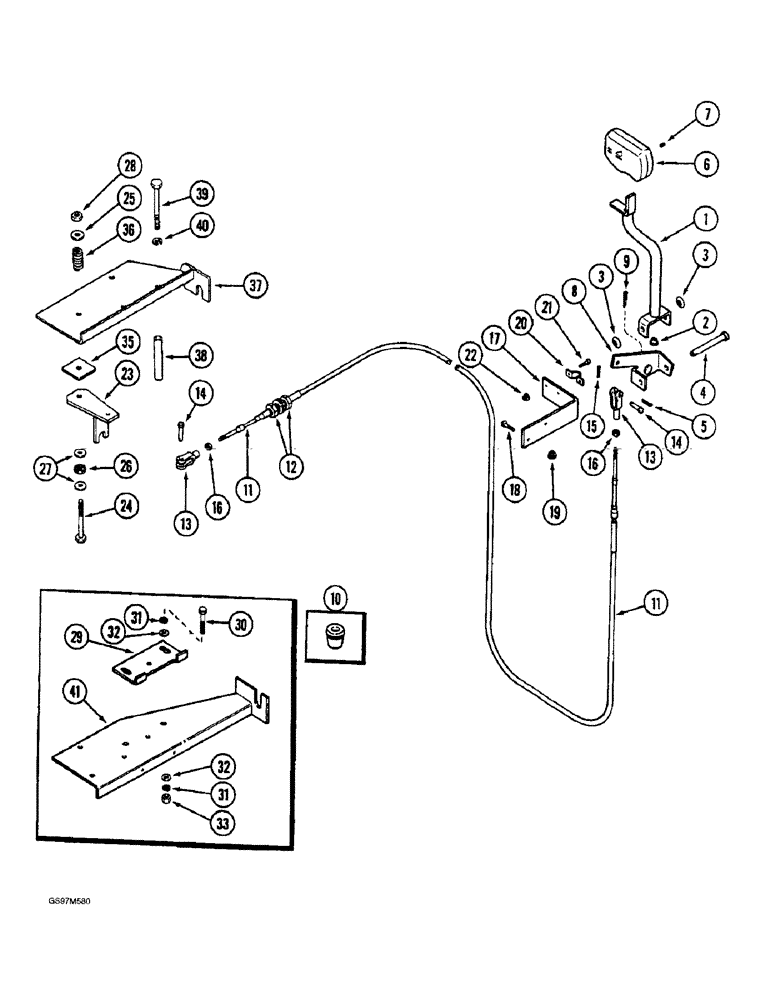

Запчасти Case IH 1660 (6-18) - PROPULSION CONTROL (03) - POWER TRAIN

1

183508C94

LEVER

- propulsion control

1шт.

2

224871C1

BUSHING

- control arm, if used

1шт.

3

366613R1

SPRING

DISK - tension spring, if used

2шт.

4

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

6

1301180C92

HANDLE

ASSEMBLY - control, Includes: Ref. 7

1шт.

7

61-3068

HEX SOC SCREW,#6 - 32 x 1/2"

BOLT - hex socket, No. 6 NC x 1/2 inch

4шт.

8

1267441C1

SUPPORT ASSY.

SUPPORT - lever pivot

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID, hydrostatic drive control cable

2шт.

11

1339382C1

CABLE,4877mm L

- control, hydrostatic drive

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

2шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

14

327-5094

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

15

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

16

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

17

193281C1

ANGLE

- control cable mounting

1шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

195593C1

CLAMP

- control cable

1шт.

21

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

2шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

23

151917C94

ARM ASSY.

ARM - pump actuating

1шт.

24

424-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 2

- hex, 7/16 NC x 3-1/4 inch, grade 2

1шт.

25

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

1шт.

26

159688R91

THRUST BEARING

BEARING - actuating arm

1шт.

27

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 x 59/64 x 1/16 inch, hardened

2шт.

28

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

29

1301490C1

SUPPORT

- control arm

1шт.

Prior to P.I.N. JJC0041567.

1шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

Prior to P.I.N. JJC0041567.

1шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

Prior to P.I.N. JJC0041567.

1шт.

32

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

1шт.

Prior to P.I.N. JJC0041567.

1шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

Prior to P.I.N. JJC0041567.

1шт.

35

150627C1

FRICTION WASHER

- friction

1шт.

36

28395H

SPRING

- control arm

1шт.

37

1979927C2

SUPPORT

- pump control

1шт.

38

600411R1

SPACER,3/8" Pipe x 2 3/4"

- pump control support

3шт.

38

14233L

SPACER,3/8" Pipe x 2 7/8"

- pump control support

3шт.

Prior to P.I.N. JJC0041567.

1шт.

39

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

3шт.

40

492-11038

LOCK WASHER,3/8"

3шт.

41

1301488C3

SUPPORT

- pump control

1шт.

Prior to P.I.N. JJC0041567.

1шт.
