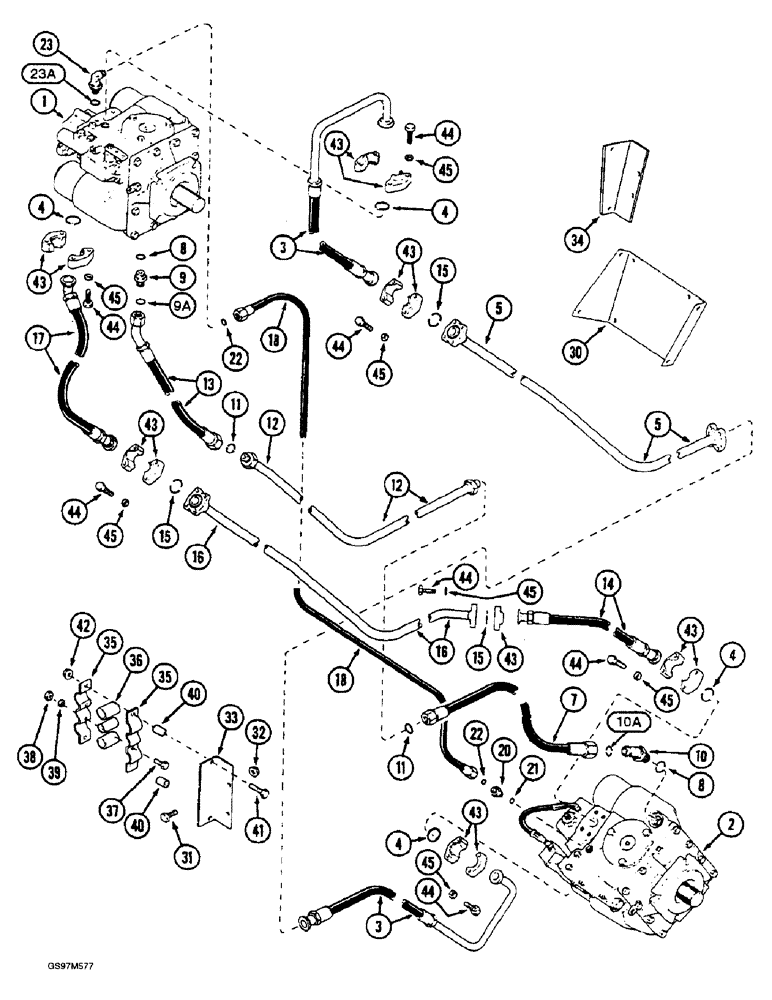

Запчасти Case IH 1660 (6-12) - HYDROSTATIC PUMP AND MOTOR SYSTEM, TWO SPEED, P.I.N. JJC0041567 AND AFTER (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-24 or 6-32

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, parts lists Figure 6-54

1шт.

3

1979955C2

HOSE

- reverse pressure

2шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

With power guide axle -018, 90 Duro, .739" ID x .070" Thk

2шт.

4a

201-907

CAP,1-3/16" - 12 ORFS

Not shown 1 3/16"-12 ORFS

1шт.

5

1979929C1

TUBE

- reverse pressure, shown, no longer available, order tube P/N 1541757C2, P/N O-ring 238-6018, Ref. 4 and cap P/N 201-907, Ref. 4A

1шт.

For power guide axle P.I.N. JJC0041567 through JJC0103799.

1шт.

5

1979931C1

TUBE,1.25" OD

ASSEMBLY - reverse pressure

1шт.

For power guide axle P.I.N. JJC0103800 and after.

1шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE - reverse pressure

1шт.

For power guide axle P.I.N. JJC0041567 through JJC0103799.

1шт.

7

1347141C1

HOSE

- housing drain, lower

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

9

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 9A 1 7/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

9a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 45 degree, 1-7/16-12 face seal x 1-1/16-12 inch adj O-ring, Includes: Ref. 10A

1шт.

10a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

12

1979932C1

HYD TUBE

TUBE - housing drain

1шт.

13

1979936C1

HOSE

- housing drain, upper, 420 mm (16-1/2 inch) long

1шт.

14

1979953C3

HOSE,25.4mm ID x 717mm L

- forward lower pressure, 698 mm (27-1/2 inch)

1шт.

15

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

16

1979928C2

HYD TUBE

TUBE - forward pressure, shown

1шт.

16

1979930C1

TUBE

- forward pressure

1шт.

For power guide axle P.I.N. JJC0041567 through JJC0103799.

1шт.

16

1541756C2

HYD TUBE

TUBE - forward pressure

1шт.

For power guide axle P.I.N. JJC0103800 and after.

1шт.

17

1347124C2

HOSE,25.4mm ID x 550mm L

- forward pressure, upper

1шт.

18

1347126C1

HOSE

- charge pressure, 4250 mm (167 inch) long

1шт.

20

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 21

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

- 90 degree, 9/16-18 face seal x 7/16-20 inch adj O-ring boss, Includes: Ref. 23A

1шт.

23a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

30

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

6шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1347034C1

SUPPORT

BRACKET - tube support, rear

1шт.

34

1347033C1

SUPPORT

BRACKET - tube support, front

1шт.

35

1347156C1

SHIN

CLAMP - tube

6шт.

36

187935C1

STRIP

SLEEVE - pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

38

425-105

NUT,5/16"-18, G5

6шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

1979761C1

SPACER

- 3/8 ID x 1 inch

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

- split flange, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.
