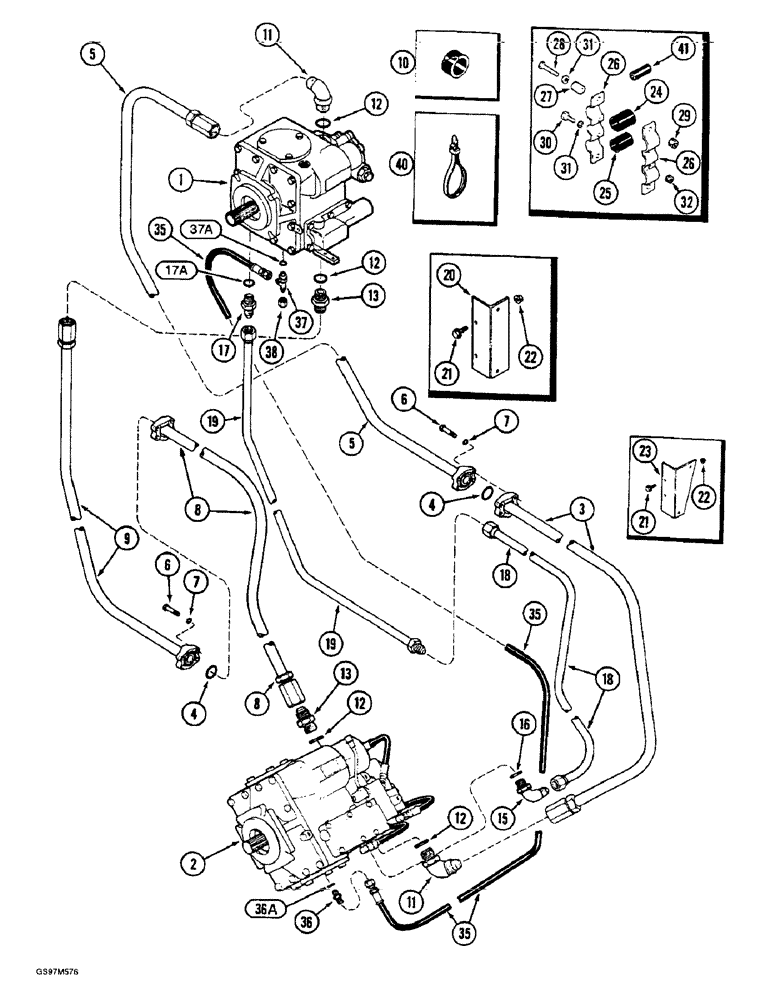

Запчасти Case IH 1660 (6-10) - HYDROSTATIC PUMP AND MOTOR SYSTEM, TWO SPEED, PRIOR TO P.I.N JJC0041567 (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-20 or 6-28

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, parts list Figure 6-48

1шт.

3

196532C2

TUBE

- drive reverse lower pressure

1шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

5

1970120C2

HYD TUBE

TUBE - drive reverse upper pressure

1шт.

6

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

8шт.

7

492-11038

LOCK WASHER,3/8"

8шт.

8

196530C2

TUBE

- drive forward lower pressure

1шт.

9

1970121C2

HYD TUBE

TUBE - drive forward upper pressure

1шт.

10

165722C1

SLEEVE

- tube nut, rubber

2шт.

11

595408R1

90 ELBOW

- 90 degree, 1-5/16-12 x 1 inch OD tube

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

4шт.

13

163915C1

FITTING

CONNECTOR - 1-5/16-12 inch thread

2шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adjustable O-ring boss, Incl. Ref. 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 17A

1шт.

17a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

1315420C1

HYD TUBE

TUBE - bleed lower

1шт.

19

183590C2

HYD TUBE,0.75" OD

TUBE - bleed upper, 1374 mm (54-3/32 inch) long, also order tube 183589C3 below

1шт.

19

1330466C2

TUBE

- bleed upper, 1391 mm (54-3/4 inch) long

1шт.

19a

183589C3

HYD TUBE,0.75" OD

TUBE - bleed lower, See Figure 6-06, item 18

1шт.

20

187936C2

BRACKET

ANGLE - tube support

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.

23

187937C2

BRACKET

ANGLE - tube support, front support

1шт.

24

187935C1

STRIP

SLEEVE - pressure tube clamp

4шт.

25

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

2шт.

26

187934C1

CLAMP

- tube

4шт.

27

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

4шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

32

425-105

NUT,5/16"-18, G5

4шт.

33

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

35

1330276C1

TUBE

HOSE - charge pressure

1шт.

36

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 36A

2шт.

36a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

37

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adjustable O-ring boss, power guide axle only, Includes: Ref. 37A

1шт.

37a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

218-752

CAP,37 Degree, 7/16"-20

Hex, Power guide axle only 37º, 7/16"-20

1шт.

40

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 178 mm (7 inch) long, nylon

1шт.

41

163492C1

RUBBER INSULATOR

INSULATOR - rubber, 5/8 ID x 1-13/64 inch long

1шт.
