Запчасти Case IH 1660 (6-08) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, P.I.N. JJC0041567 AND AFTER (03) - POWER TRAIN

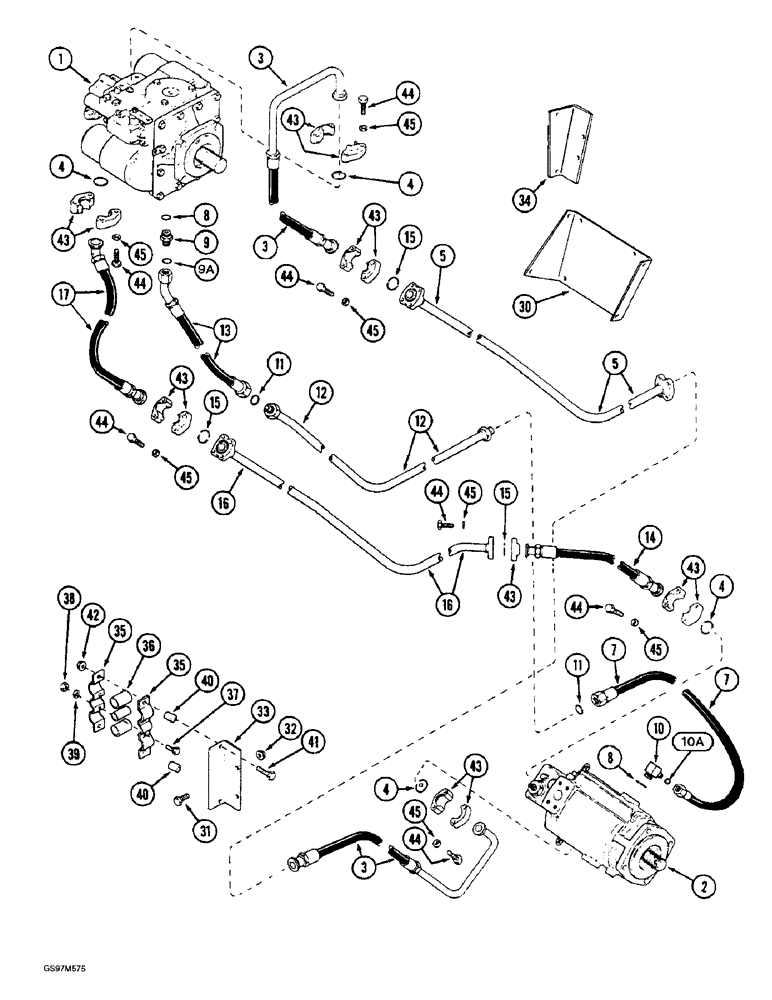

Схема запчастей Case IH 1660 - (6-08) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, P.I.N. JJC0041567 AND AFTER (03) - POWER TRAIN
34
44
45
11
39
3
17
45
12
43
43
13
42
8
43
44
45
4
15
45
5
8
45
44
2
16
31
43
36
15
37
45
11
31
9
44
5
44
41
44
30
12
3
40
16
33
4
4
32
10a
7
14
44
43
43
35
3
35
45
15
4
1
9a
7
10
40

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-24 or 6-32

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, parts list Figure 6-42

1шт.

3

1979955C2

HOSE

- reverse pressure

2шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

With power guide axle -018, 90 Duro, .739" ID x .070" Thk

2шт.

4a

201-907

CAP,1-3/16" - 12 ORFS

Not shown 1 3/16"-12 ORFS

1шт.

5

1979929C1

TUBE

reverse pressure, shown, no longer available, order tube P/N 1541757C2, O-ring P/N 238-6018, Ref. 4 and cap P/N 201-907, item 4A

1шт.

For power guide axle P.I.N. JJC0041567 through JJC0103799.

1шт.

5

1979931C1

TUBE,1.25" OD

reverse pressure

1шт.

For power guide axle P.I.N. JJC0103800 and after.

1шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE reverse pressure

1шт.

7

1347141C1

HOSE

- housing drain, lower

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

9

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 9A 1 7/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

9a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

- 90 degree, 1-7/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 10A

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

12

1979932C1

HYD TUBE

TUBE - housing drain

1шт.

13

1979936C1

HOSE

- housing drain, upper, 420 mm (16-1/2 inch) long

1шт.

14

1979953C3

HOSE,25.4mm ID x 717mm L

- forward lower pressure, 698 mm (27-1/2 inch) long (Replaces 725 mm long hose 1347125C1)

1шт.

15

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

16

1979928C2

HYD TUBE

TUBE - forward pressure, shown

1шт.

16

1979930C1

TUBE

forward pressure

1шт.

For power guide axle P.I.N. JJC0041567 through JJC0103799.

1шт.

16

1541756C2

HYD TUBE

TUBE forward pressure

1шт.

For power guide axle P.I.N. JJC0103800 and after.

1шт.

17

1347124C1

HOSE

- forward pressure, upper

1шт.

30

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

6шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1347034C1

SUPPORT

BRACKET - tube support, rear

1шт.

34

1347033C1

SUPPORT

BRACKET - tube support, front

1шт.

35

1347156C1

SHIN

CLAMP - tube

6шт.

36

187935C1

STRIP

SLEEVE - pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

1979761C1

SPACER

- 3/8 ID x 1 inch

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

- split flange, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.
