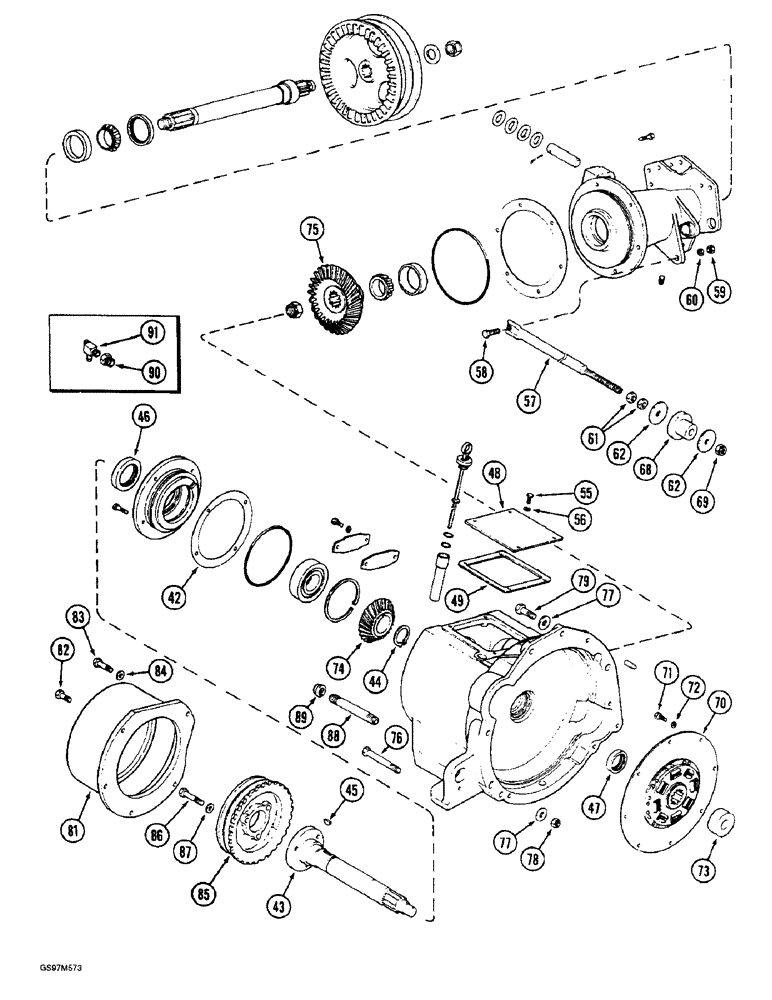

Запчасти Case IH 1660 (6-04) - POWER TAKEOFF DRIVE (CONTD) (03) - POWER TRAIN

188196C1

SHIM KIT

KIT - shim, PTO drive shaft housing, Includes: Shims

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.030 inch, order kit

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.010 inch, order kit

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.007 inch, order kit

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.005 inch, order kit

1шт.

43

192816C2

SHAFT

- drive

1шт.

44

100-12200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

45

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

5/16" x 2 1/8", HT

1шт.

46

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- pump housing end, 3-5/8 inch OD

1шт.

47

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

- drive shaft, drive plate end, 2-5/8 inch OD

1шт.

48

192275C1

COVER

- housing

1шт.

49

191830C2

GASKET

- PTO cover

1шт.

55

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

56

492-11038

LOCK WASHER,3/8"

4шт.

57

1315648C1

ROD

- snubber

1шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

59

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

61

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

62

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

2шт.

68

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber

1шт.

69

232-46110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

70

184429C2

CLUTCH DISC,352.4mm OD

PLATE - drive

1шт.

184429C2R

REMAN-CLUTCH DISC

1660 (S/N JJC0038346 & AFTER) (1/86-12/92)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

71

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

72

392-21038

LOCK WASHER,3/8"

3/8"

8шт.

73

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

- power takeoff flywheel

1шт.

192801C1

GEAR-SET

KIT - gear, separator drive, 43 and 28 tooth, matched set, models without cross flow cleaning system, Includes: Ref. 74 & 75

1шт.

184494C1

GEAR-SET

KIT - separator drive gear, 31 and 41 tooth, models with cross flow cleaning system, Includes: Ref. 74 & 75

1шт.

74

NSS

NOT SOLD SEPARAT

GEAR - drive shaft, 31 tooth, used with kit 184494C1

1шт.

74

NSS

NOT SOLD SEPARAT

GEAR - drive shaft, 28 tooth, used with kit 192801C1

1шт.

75

NSS

NOT SOLD SEPARAT

GEAR - separator drive shaft, 43 tooth, used with kit 192801C1

1шт.

75

NSS

NOT SOLD SEPARAT

GEAR - separator drive shaft, 41 tooth, used with kit 184494C1

1шт.

76

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

77

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

6шт.

78

425-1010

NUT,5/8"-11, G5

4шт.

79

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

81

1303141C2

HOUSING

- hydrostatic pump

1шт.

82

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

3шт.

83

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

84

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

2шт.

85

1330488C1

PULLEY

- drive, auxiliary pump, 225 mm (8-55/64 inch) OD

1шт.

86

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

87

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

88

221-200

PIPE

NIPPLE - pipe, 1/2 PT x 7 inch

1шт.

89

119101

CAP,1/2" NPT

- pipe, 1/2 inch NPT

1шт.

90

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

91

301803R1

SHUT-OFF VALVE

VALVE - shutoff, if used

1шт.
