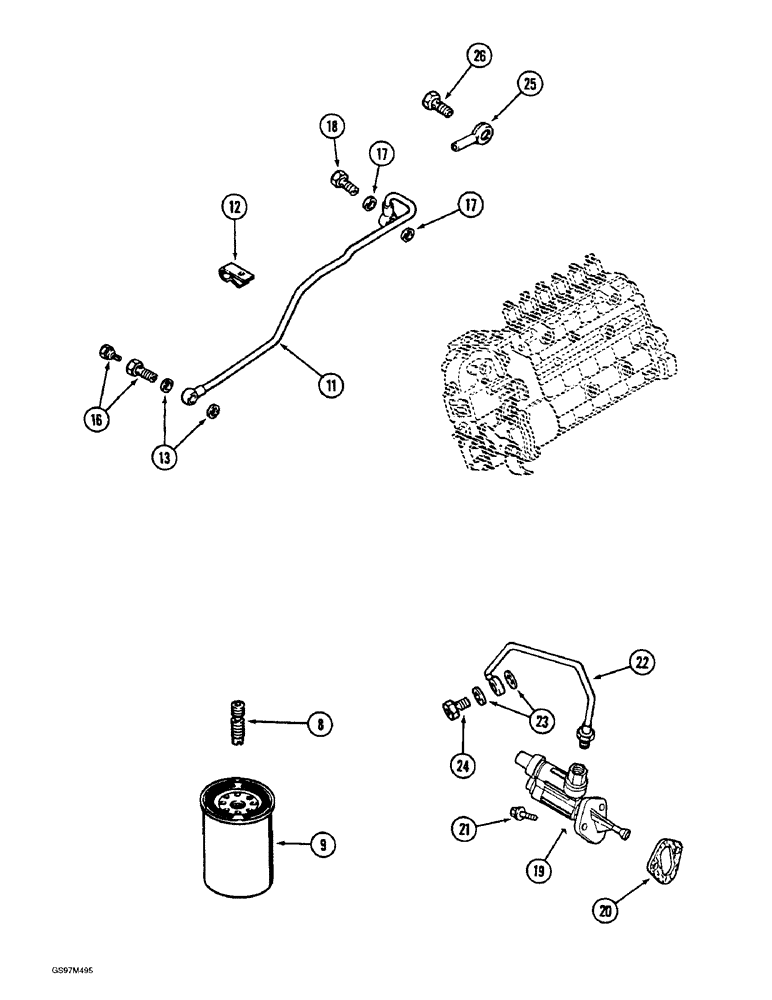

Запчасти Case IH 1660 (3-04) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE (02) - FUEL SYSTEM

8

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter (Replaces adapter J903845)

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel

1шт.

11

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply

1шт.

12

J914711

CLIP

CLAMP - P-type

1шт.

13

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm (Replaces washer J903037)

2шт.

16

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

17

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm (Replaces washer J914896)

2шт.

18

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

19

J933254

FEED PUMP

PUMP - fuel lift and transfer (Replaces pumps J906795 and J917998)

1шт.

20

J931348

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304)

1шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 20 mm

2шт.

21

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, special, 8 - 1.25 x 25 mm (Replaces bolt J900631)

2шт.

22

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

23

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm (Replaces washer J903037)

2шт.

24

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, , with 6 mm threaded hole in head M12 x 1.5 x 24

1шт.

24

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm, with 8 mm threaded hole in head

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

26

J913681

BANJO BOLT

BOLT - banjo restrictor

1шт.
