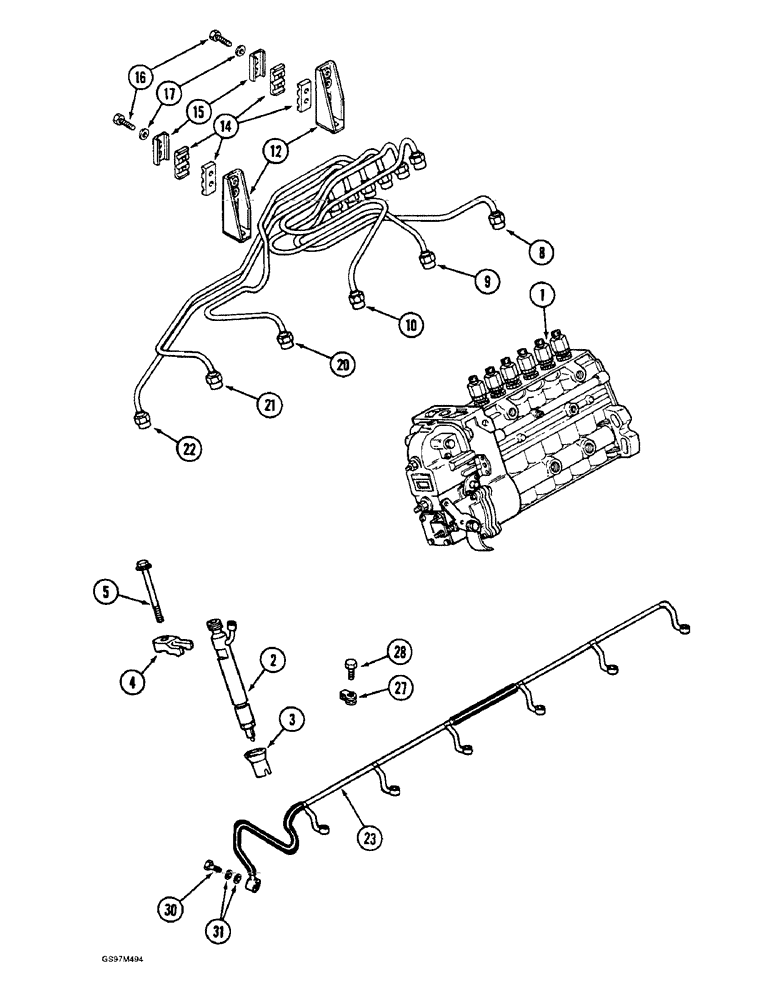

Запчасти Case IH 1660 (3-02) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 3-08

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figure 3-10

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

8

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

9

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

10

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

12

J917776

BRACE

BRACKET - fuel tube

2шт.

14

J917747

CLAMP

- fuel tube

4шт.

15

J904519

SUPPORT

BRACE - tube retaining

2шт.

16

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces bolt J917712) Hex Hd, M5 x .8 x 20, w/LW

4шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Special (Replaces washer J903723) M5 x 10 x 1

4шт.

20

J910521

FUEL TUBE

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

23

J920595

TUBE ASSY.

MANIFOLD - fuel drain (Replaces manifold J915695)

1шт.

24

J903728

PACKING RING

WASHER - flat, used with manifold J920595, not shown

1шт.

25

J916361

BANJO BOLT

SCREW - banjo connector, used with manifold J920595, not shown

1шт.

27

J903380

SEAL

- connector

6шт.

28

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

30

J924726

BANJO BOLT

VALVE - check (Replaces valve J916360)

1шт.

31

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.
