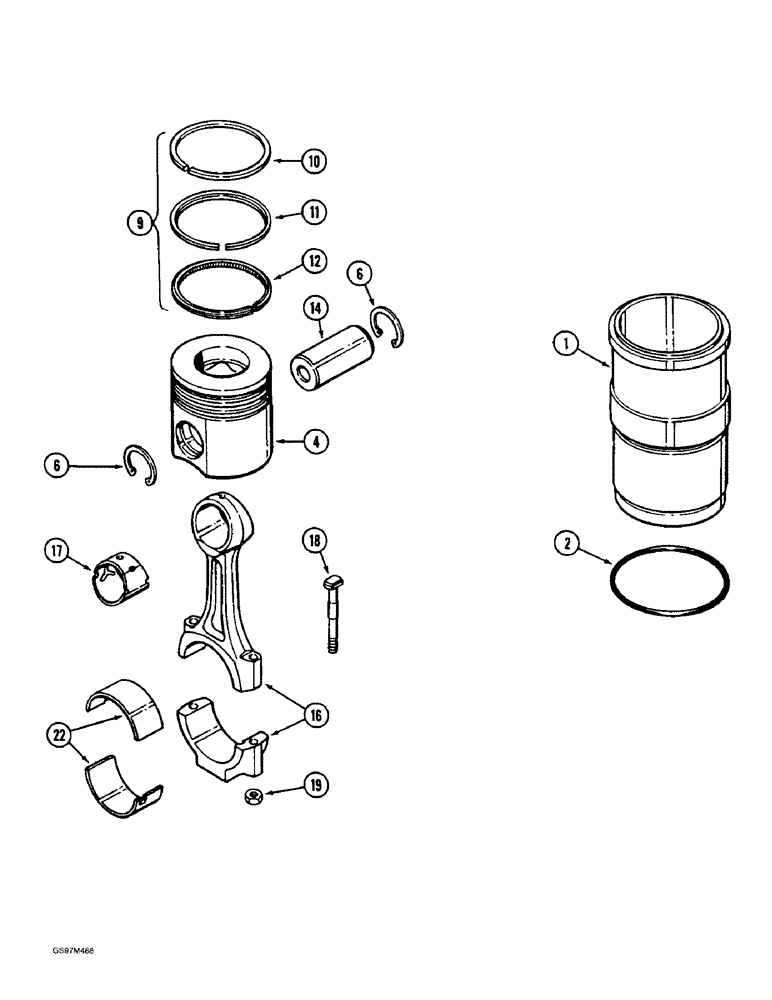

Запчасти Case IH 1660 (2-52) - PISTONS, 6T-830 ENGINE (01) - ENGINE

A77798

PACKAGE, REPAIR

KIT - piston and sleeve, engine, Includes: Ref. 1 - 12

6шт.

Used with engine serial number 44706126 and after.

1шт.

A77772

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564 or 3163, Includes: Ref. 1 - 12

6шт.

Used with engine serial number 44487830 through 44706125.

1шт.

A77598

CYLINDER

KIT - piston and sleeve, no longer available, order kit A77772, Includes: Ref. 1 - 12

6шт.

Used prior to engine serial number 44487830.

1шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

Used with engine serial number 44706126 and after.

1шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

Used with engine serial number 44487830 through 44706125. Used prior to engine serial number 44487830.

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - cylinder, Replaces: P/N J911737

1шт.

A77771

PISTON ASSY.

KIT - piston, engine, standard, Includes: Ref. 4 - 12

1шт.

Used with engine serial number 44706126 and after. Used with engine serial number 44487830 through 44706125.

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749, order kit A77771

1шт.

6

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

2шт.

9

A77802

PISTON RING SET

KIT- ring, piston, Replaces: P/N A77744, Includes: Ref. 10 - 12

1шт.

Used with engine serial number 44706126 and after. Used with engine serial number 44487830 through 44706125.

1шт.

9

A77562

PISTON RING SET

KIT, piston ring, Includes: Ref. 10 - 12

1шт.

Used prior to engine serial number 44487830.

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit

1шт.

14

J901597

PIN

- piston

6шт.

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 shim 0.254mm Thk

1шт.

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015") (Replaces shim J914654) 0.381mm Thk

1шт.

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

Cylinder sleeve (.020") (Replaces shim J914655) 0.508mm Thk

1шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 17 - 19

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 - 19

6шт.

84487529R

REMAN-CONNECTING ROD

1660 S/N JJC0038346 & AFTER (1/86 - 12/92), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

18

J924351

BOLT

- rod (Replaces bolt J901380), connecting

2шт.

19

J901381

SPECIAL NUT

- hex, rod bolt, connecting

2шт.

22

A77563

BEARING SET

KIT - bearing, upper and lower, standard, connecting rod

6шт.

22

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize, connecting rod

6шт.

22

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize, connecting rod

6шт.

22

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize, connecting rod

6шт.

22

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize, connecting rod

6шт.
