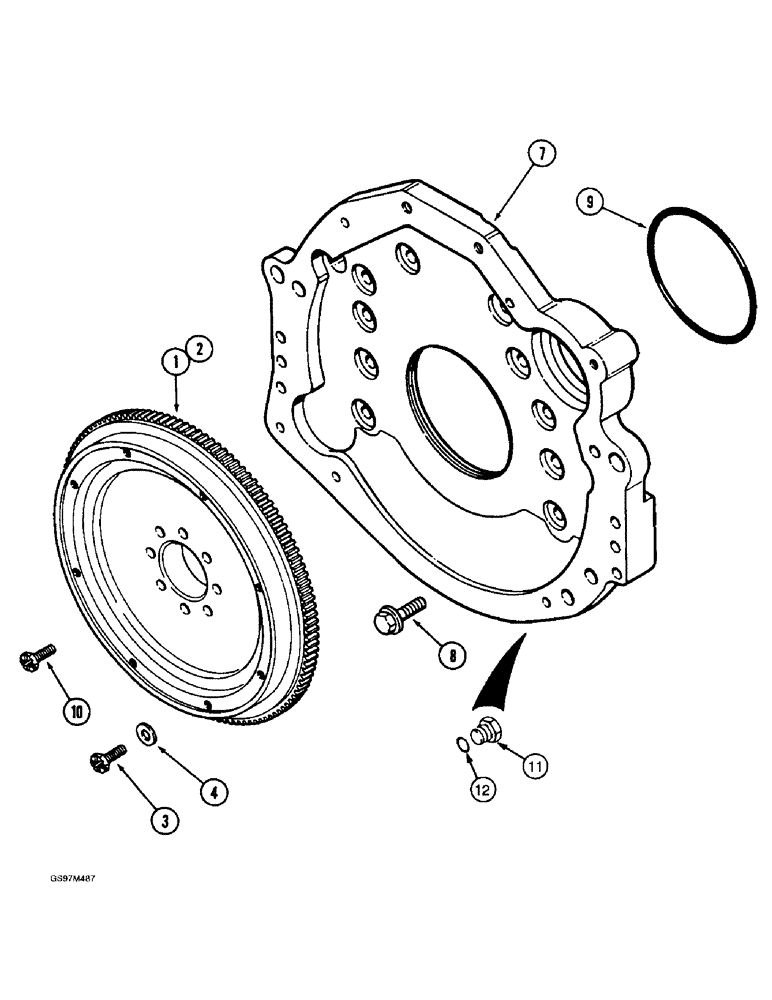

Запчасти Case IH 1660 (2-50) - FLYWHEEL, 6T-830 ENGINE (01) - ENGINE

1

J917052

FLYWHEEL

ASSEMBLY - engine (Replaces flywheel J915096), Includes: Ref. 2

1шт.

2

J905427

GEAR

- ring, flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

7

J913593

PLATE

- backing

1шт.

8

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 40 mm, Cl 10.9

10шт.

8

854-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

- hex, 12 x 45 mm, grade 10.9

10шт.

9

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block (Replaces O-ring A157927)

1шт.

10

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 50 mm

8шт.

11

J910248

PLUG

- flywheel housing

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.
