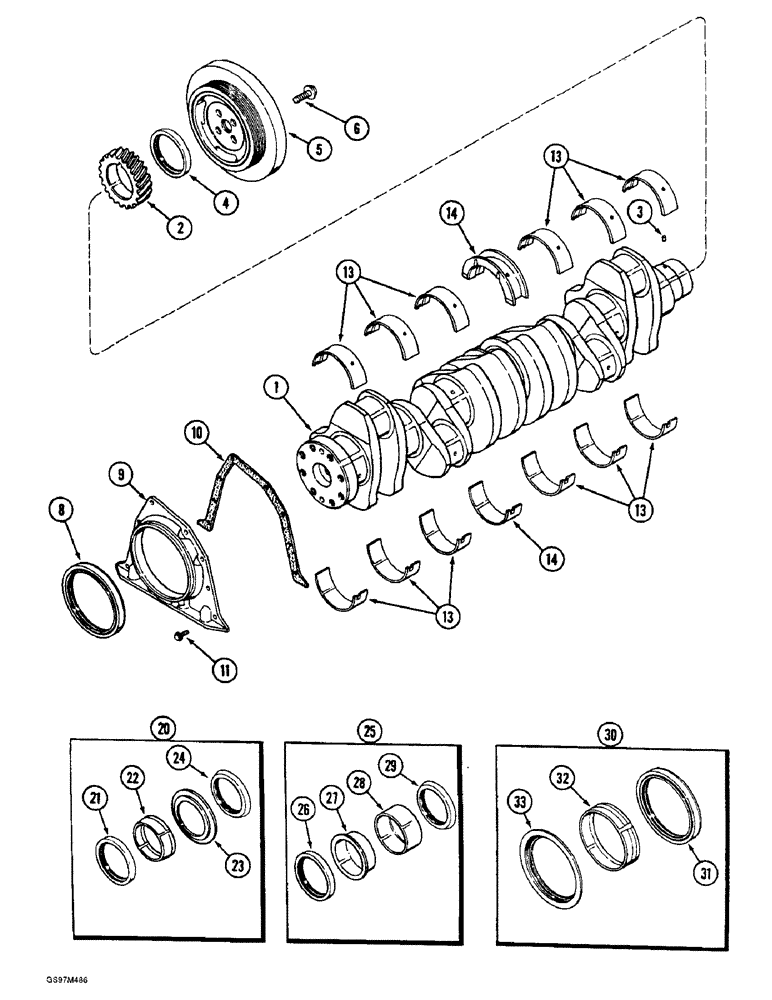

Запчасти Case IH 1660 (2-48) - CRANKSHAFT, 6T-830 ENGINE (01) - ENGINE

JR918986

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly (Replaces crankshaft assembly JR917443), Includes: Ref. 2 & 3

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

1

J918986

CRANKSHAFT

ASSEMBLY - engine, new (Replaces crankshafts J904363 and J917443), Includes: Ref. 2 & 3

1шт.

2

J918776

GEAR

- crankshaft (Replaces gear J918380)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit A77790, item 20

1шт.

5

A77816

DAMPER

PULLEY - damper, vibration (Replaces pulley J914455)

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, special, 14 x 35 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order kit J909410, item 30

1шт.

9

J921042

REAR COVER

RETAINER - seal, rear cover (Replaces retainer J907535)

1шт.

10

J914301

GASKET

- rear cover retainer

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

A77711

BEARING LINER

BEARING - main, upper and lower set, standard (Replaces bearing A77569)

6шт.

13

A77712

BEARING LINER

BEARING - main, upper and lower set, 0.25 mm undersize (Replaces bearing A77570)

6шт.

13

A77713

BEARING LINER

BEARING - main, upper and lower set, 0.50 mm undersize (Replaces bearing A77571)

6шт.

13

A77714

BEARING LINER

BEARING - main, upper and lower set, 0.75 mm undersize (Replaces bearing A77572)

6шт.

13

A77715

BEARING LINER

BEARING - main, upper and lower set, 1.0 mm undersize (Replaces bearing A77573)

6шт.

14

A77843

BEARING LINER

BEARING - main thrust, upper and lower set, standard (Replaces bearings A77574 and A77706)

1шт.

14

A77844

BEARING LINER

BEARING - main thrust, upper and lower set, 0.25 mm undersize (Replaces bearings A77575 and A77707)

1шт.

14

A77845

BEARING LINER

BEARING - main thrust, upper and lower set, 0.50 mm undersize (Replaces bearings A77576 and A77708)

1шт.

14

A77709

BEARING LINER

BEARING - main thrust, upper and lower set, 0.75 mm undersize (Replaces bearing A77577)

1шт.

14

A77710

BEARING LINER

BEARING - main thrust, upper and lower set, 1.0 mm undersize (Replaces bearing A77578)

1шт.

20

A77790

SEAL KIT

KIT - oil seal, crankshaft front (Replaces kit J908139), Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit A77790

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit A77790

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit A77790

1шт.

24

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

25

A77810

SERVICE KIT

KIT - wear sleeve, crankshaft rear (Replaces kit J906081), Includes: Ref. 26, 27

1шт.

25

A77808

SERVICE KIT

KIT - wear sleeve, crankshaft front (Replaces kit A77791), Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order kit

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit A77808

1шт.

29

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, used with kit A77808

1шт.

30

A77809

GASKET KIT

KIT - seal, oil, crankshaft rear (Replaces kit J909410), Includes: Ref. 31 - 33; Tool No Longer Included In Kit, Available from OTC

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil rear, order kit J909410

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - installation, order kit J909410

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit J909410

1шт.
