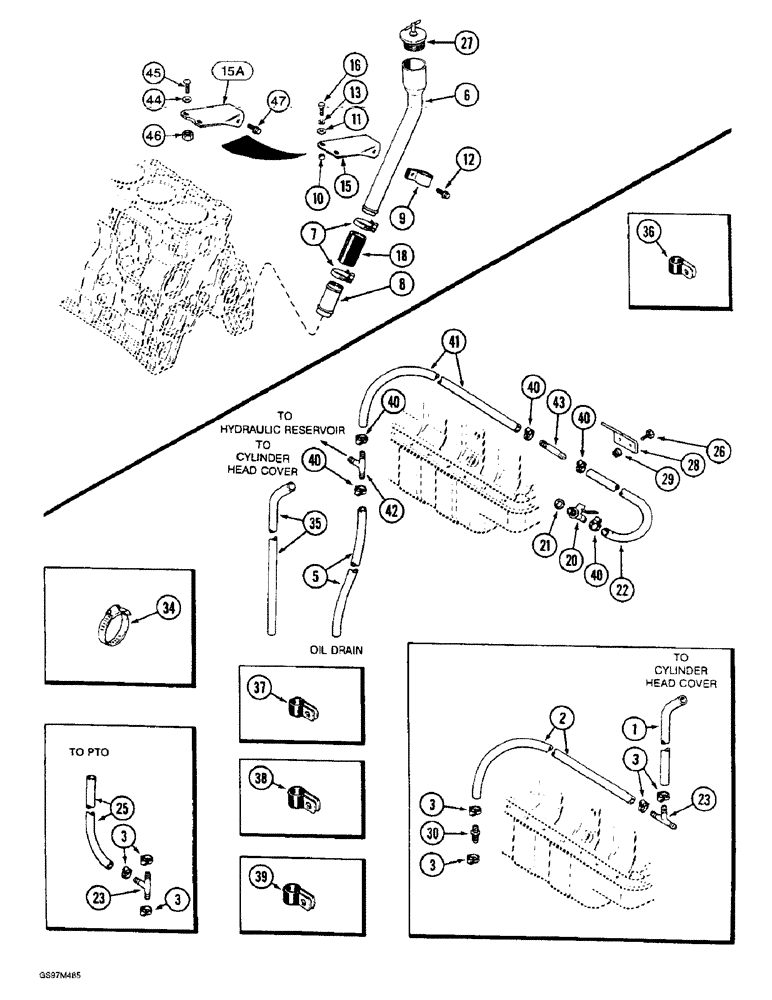

Запчасти Case IH 1660 (2-46) - CYLINDER BLOCK ATTACHING PARTS (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 16 (5/8) ID x 840 mm (33 inch) long, cut from bulk hose 1977295CX below

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - breather, intermediate, 16 (5/8) ID x 735 mm (28-15/16 inch) long, cut from bulk hose 1977295CX below

1шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Order 6 when adapter 1301342C1, item 30, is used #10, 0.56/1.06 Type F Worm

7шт.

5

NSS

NOT SOLD SEPARAT

HOSE - breather, lower, 1850 mm (72-27/32 inch) long, cut from bulk hose 1977295CX below

1шт.

6

J914019

TUBE,34.92 mm OD x 59, 25 mm L

- oil fill, upper

1шт.

7

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

8

J914163

TUBE,35.23 mm OD x 90 mm L

- oil fill, lower

1шт.

9

J914022

CLAMP

- P-type

2шт.

10

102439A1

SPACER

- 13/32 x 1/2 x 3/8 inch

2шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

2шт.

15

J914020

BRACKET

- support, no longer available, order bracket J932598, item 15A and hardware items 44 - 47

1шт.

15a

J932598

SUPPORT

BRACKET - oil tube

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

18

A77661

HOSE

- crankcase, 65 mm (2-1/2 inch) long

1шт.

20

1330429C1

DRAIN VALVE

VALVE - oil drain

1шт.

21

J920773

SEALING WASHER

WASHER - sealing, drain plug (Replaces washer J900216)

1шт.

22

1329978C3

HOSE

- oil drain, 430 mm (18-1/8 inch) long

1шт.

23

1977169C1

TEE

- oil drain, order one when adapter 1301342C1, item 30, is used

2шт.

25

NSS

NOT SOLD SEPARAT

HOSE - PTO drain, 215 mm (8-15/32 inch) long, cut from bulk hose 1977295CX below

1шт.

26

1977212C1

BRACKET

- oil drain shield

1шт.

27

A77424

FILLER CAP

CAP - oil fill tube

1шт.

28

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

1301342C1

FITTING

ADAPTER - straight, special

1шт.

34

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

1шт.

35

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 19 (3/4) ID x 3760 mm (148 inch) long, cut from bulk hose 364360C1 below

1шт.

281-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW - self-tapping, hex washer head, 5/16 NC x 5/8 inch

1шт.

36

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

37

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, closed 1 1/2", Insul, 3/8" Bolt

1шт.

38

515-25508

CLAMP,2", Insul, 1/2" Bolt

- P-type, 2 inch ID, closed

2шт.

39

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

40

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

5шт.

41

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather intermediate, 16 (5/8) ID x 840 mm (33 inch) long, cut from bulk hose 1977295CX below

1шт.

42

1977169C1

TEE

- oil drain

1шт.

43

1301342C1

FITTING

ADAPTER - straight, special

1шт.

44

J918189

SEALING WASHER

WASHER - sealing

2шт.

45

J931061

FLANGE BOLT,Hex, M6 x 1 - M8 x 1.25 x 48.50mm

SCREW - hex flange

2шт.

46

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

- hex flange, 5 mm - 0.8, class 8

2шт.

47

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

1977295CX

LARGE HOSE

HOSE - bulk, 15240 mm (600 inch) roll, sold by the foot

1шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long, sold by the foot

1шт.
