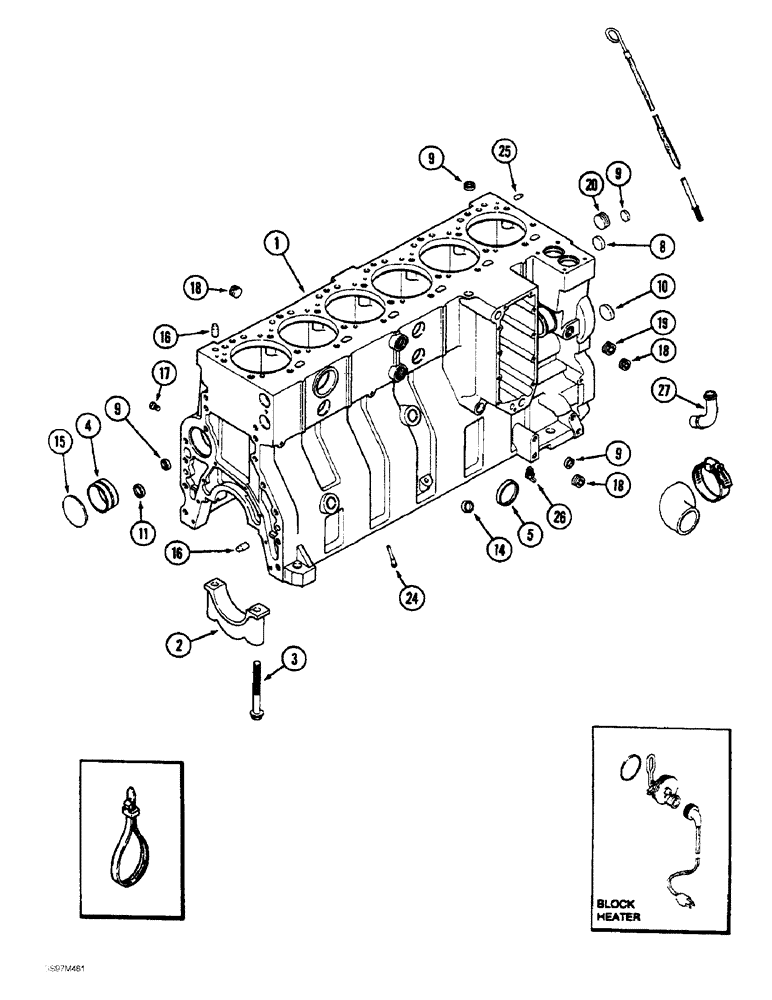

Запчасти Case IH 1660 (2-42) - CYLINDER BLOCK, 6T-830 ENGINE, TWELVE PISTON COOLING NOZZLES,ENGINE S.N. 44487830 THROUGH 44706125 (01) - ENGINE

1989015C4

ENGINE ASSEMBLY

- 6T-830, complete, production, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, order basic engine 1989098C4 below or remanufactured engine AR174358 on Figure 2-38

1шт.

1989015C4R

REMAN-REPLACEMENT EN

1660 P.I.N. JJC0038346 & Aft., Eng. S/N 44487830 Thru 44706125, N.A. Only

1шт.

6T-830C

CORE-REPLACEMENT ENG

Return Number, For N.A. Only

1шт.

1989098C4

BASIC ENGINE

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner; See Note

1шт.

JR921057

SKELETON ENGINE

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order remanufactured block assembly JR921843 on Figure 2-45A, Includes: Ref. 2 - 10

1шт.

JC921057

CORE-SHORT ENGINE

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J926152

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings (Replaces block assembly J921057), Includes: Ref. 2 - 10

1шт.

JR920036

CRANKCASE

BLOCK ASSEMBLY - stripped, remanufactured, North America only, component part shown on this page do not apply to the remanufactured assembly, no longer available, order new assembly J928964, Includes: Ref. 2 - 10

1шт.

JC919374

CORE-ENGINE

RETURN NUMBER - use this part number to return stripped core for credit when using a remanufactured assembly, no longer used

1шт.

1

J928964

CRANKCASE

BLOCK ASSEMBLY - cylinder, stripped, new, also order kit A77716 (Replaces block assemblies J919374 and J920036), Includes: Ref. 2 - 10

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

- camshaft, see Figure 2-34

7шт.

5

A77782

PLUG

- expansion, 58 mm OD (Replaces plug J900965)

1шт.

8

A77586

PLUG

- expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components separately, Includes: Ref. 11 - 27

1шт.

11

J920443

PLUG

- expansion, 30 mm OD (Replaces plug A77530)

2шт.

14

A77439

PLUG

- expansion, 22 mm OD

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

5шт.

19

A77505

PLUG

- hex socket, 3/4 inch PT

2шт.

20

A77533

PLUG

- hex socket, 1 inch PT

1шт.

24

J928031

NOZZLE,8.5mm OD x 30mm L

- piston cooling (Replaces nozzle J919003)

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, coolant

1шт.

27

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.
