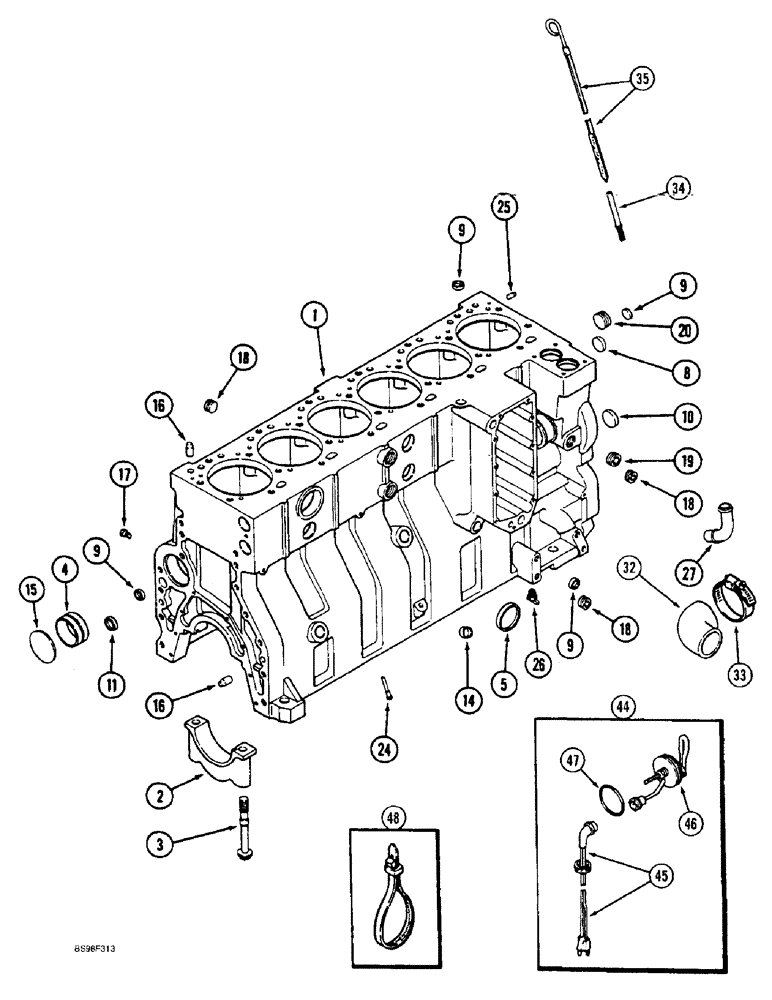

Запчасти Case IH 1660 (2-38) - CYLINDER BLOCK, 6T-830 ENGINE, TWELVE PISTON COOLING NOZZLES,PRIOR TO ENGINE S.N. 44487830 (01) - ENGINE

1989015C4

ENGINE ASSEMBLY

- 6T-830, complete, production, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, order basic engine 1989098C4 on Figure 2-42 or remanufactured engine AR174358 below

1шт.

1989015C4R

REMAN-REPLACEMENT EN

1660 P.I.N. JJC0038346 & Aft., Prior to Eng. S/N 44487830

1шт.

6T-830C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

A174358

BASIC ENGINE

1шт.

Also order hose J918562, hose J913759, connector J919687 and O-ring 129270.

1шт.

AR174398

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174358

CORE-ENGINE

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

JR919555

CRANKCASE

Block Assembly, Short, Remanufactured, No Longer Available, Order Block Assembly JR921843 On Figure 2-45A, Includes: Ref. 2 - 10

1шт.

JC919555

CORE-ENGINE

Return Part Number, Use This Part Number To Return Block Core For Credit When Using a Remanufactured Assembly

1шт.

J926152

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, also order kit A77716 (Replaces block assembly J919555), Includes: Ref. 2 - 10

1шт.

JR919374

CRANKCASE

Block Assembly, Stripped, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, No Longer Available, Order New Block Assembly J928964, Includes: Ref. 2 - 10

1шт.

JC919374

CORE-ENGINE

Return Part Number, Use This Part Number To Return Stripped Core For Credit When Using a Remanufactured Assemblyy, No Longer Used

1шт.

1

J928964

CRANKCASE

BLOCK ASSEMBLY - cylinder, stripped, new, also order kit A77716 (Replaces block assemblies J919374 and J920036), Includes: Ref. 2 - 10

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

- camshaft, see Figure 2-34

7шт.

5

A77782

PLUG

- expansion, 58 mm OD (Replaces plug J900965)

1шт.

8

A77586

PLUG

- expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components separately, Includes: Ref. 11 - 27

1шт.

11

J920443

PLUG

- expansion, 30 mm OD (Replaces plug A77530)

2шт.

14

A77439

PLUG

- expansion, 22 mm OD

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

4шт.

19

A77505

PLUG

- hex socket, 3/4 inch PT

2шт.

20

A77533

PLUG

- hex socket, 1 inch PT

1шт.

24

J928031

NOZZLE,8.5mm OD x 30mm L

- piston cooling (Replaces nozzle J919003)

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, coolant

1шт.

27

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

32

J920762

ELBOW

HOSE - elbow (Replaces hose J909389)

1шт.

33

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adjustable, 1-13/16 - 2-3/4 inch diameter, coolant

1шт.

34

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil

1шт.

35

J906757

DIPSTICK

- oil gauge

1шт.

44

196804A1

KIT

- engine block heater (Replaces kit A77595), Includes: Ref. 45 & 46

1шт.

45

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113)

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order kit 196804A1

1шт.

47

J910517

O-RING

- heater sealing

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
