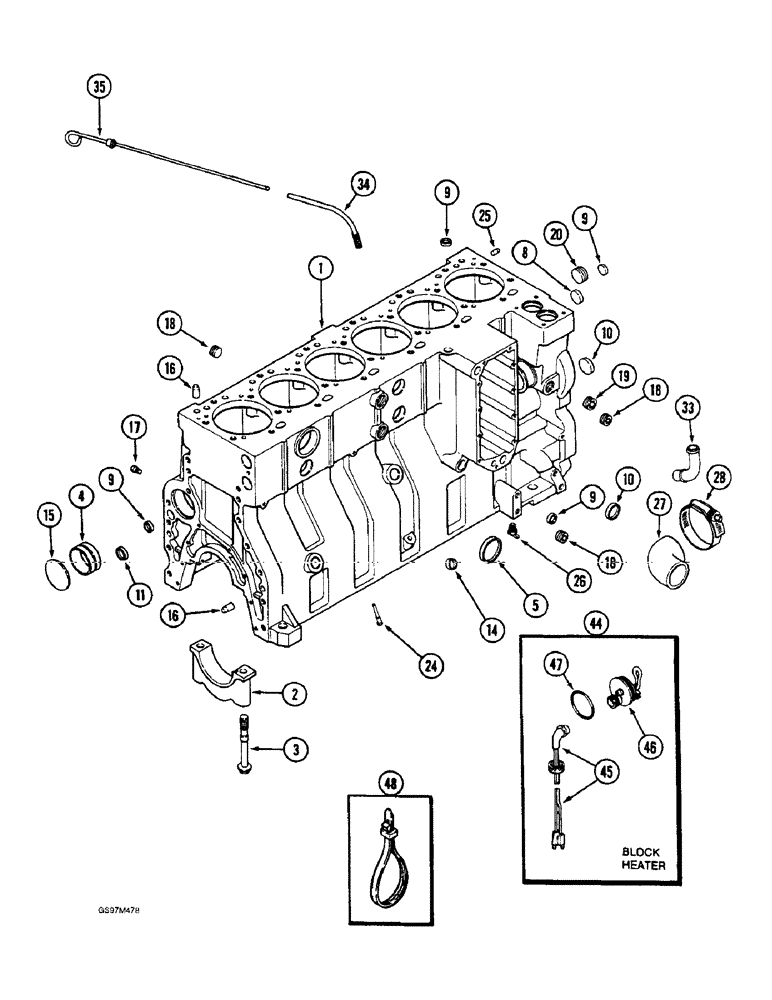

Запчасти Case IH 1660 (2-36) - CYLINDER BLOCK, 6T-830 ENGINE, SIX PISTON COOLING NOZZLES (01) - ENGINE

A174344

ENGINE ASSEMBLY

- 6T-830, complete, includes all parts except starter, alternator, fan, fan belt, muffler and exhaust pipe, no longer available, order engine assembly 1989015C4 on Figure 2-38

1шт.

REF

INSTRUCTION

ENGINE ASSEMBLY - basic

1шт.

Six piston cooling nozzle basic engine not available. Order A174358 basic engine, parts list Figure 2-38

1шт.

JR912531

ENGINE, EXCHANGE

BLOCK ASSEMBLY - short, engine, remanufactured, North America only

1шт.

Component parts shown on this page do not apply to the remanufactured assembly, no longer available, order remanufactured block JR921843 on Figure 2-45A, bolts J917728 and J917729 on Figure 2-32 and pump J930338 on Figure 2-58

1шт.

JC912531

CORE-SHORT ENGINE

RETURN NUMBER - use this part number to return block core for credit when using a remanufactured assembly

1шт.

J912531

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new

1шт.

Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order short block J926152 on Figure 2-38, bolts J917728 and J917729 on Figure 2-32 and pump J930338 on Figure 2-58

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER - use this part number to return stripped block core for credit when using a remanufactured assembly, no longer used

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new, also order kit J909415 below, Includes: Ref. 2 - 10

1шт.

2

J905397

CAP

- main bearing

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

- hex flange, special, bearing cap

14шт.

4

J901685

BUSHING

- camshaft, see Figure 2-34

7шт.

5

A77782

PLUG

- expansion, 58 mm OD (Replaces plug J900965)

1шт.

8

A77586

PLUG

- expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

J909415

KIT

- hardware, block, no longer available as a kit, order components, Includes: Ref. 11 - 26

1шт.

11

J920443

PLUG

- expansion, 30 mm OD (Replaces plug A77530)

2шт.

14

A77439

PLUG

- expansion, 22 mm OD

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

4шт.

19

A77505

PLUG

- hex socket, 3/4 inch PT

2шт.

20

A77533

PLUG

- hex socket, 1 inch PT

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - piston cooling

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, coolant

1шт.

27

J920762

ELBOW

HOSE - elbow (Replaces hose J909389)

1шт.

28

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adjustable, 1-13/16 - 2-3/4 inch diameter, coolant

1шт.

33

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

34

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil

1шт.

35

J906757

DIPSTICK

- oil gauge

1шт.

44

196804A1

KIT

- engine block heater (Replaces kit A77595), Includes: Ref. 45 & 46

1шт.

45

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113)

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order kit 196804A1

1шт.

47

J910517

O-RING

- heater sealing

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
