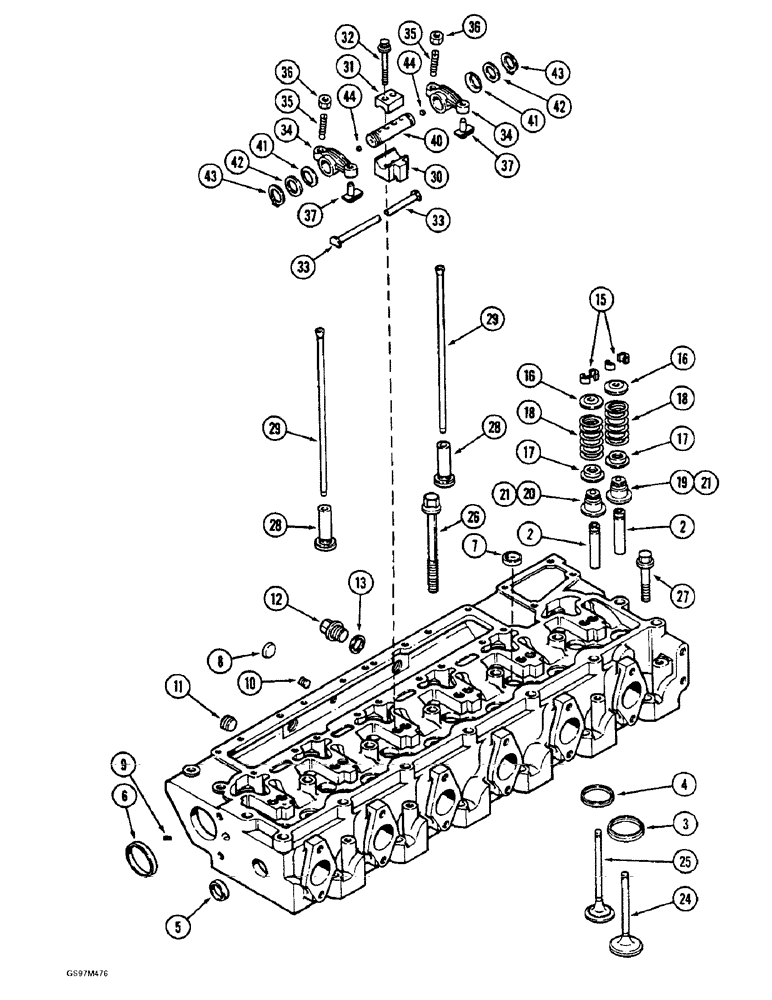

Запчасти Case IH 1660 (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE (01) - ENGINE

JR925644

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly (Replaces head assembly JR913111), Includes: Ref. 1 - 25

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, with valves, new (Replaces head assembly J917768), Includes: Ref. 1 - 25

1шт.

1

J919919

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves, new (Replaces head assembly J911287), Includes: Ref. 2 - 8

1шт.

2

J923564

VALVE GUIDE

GUIDE - stem, valve (Replaces guide J901187)

12шт.

3

J924582

INSERT

- seat, intake valve (Replaces insert J908830)

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, service repair only, 0.254 mm oversize (Replaces insert J914839)

6шт.

Oversize valve insert not part of head assembly. Order separately. "V" code stamped on part.

1шт.

4

J929005

INSERT

- seat, exhaust valve (Replaces insert J904716)

6шт.

4

J929006

INSERT

- seat, exhaust valve, service repair only, 0.254 mm oversize (Replaces insert J914836)

6шт.

Oversize valve insert not part of head assembly. Order separately. "V" code stamped on part.

1шт.

5

J920443

PLUG

- expansion, 30 mm OD (Replaces plug A77530)

1шт.

6

A77782

PLUG

- expansion, 58 mm OD (Replaces plug J900965)

2шт.

7

A77590

PLUG

- expansion, 28,7 mm

5шт.

8

J912900

PLUG

- expansion, 24 mm

1шт.

9

A77534

PLUG

- hex, 1/16 inch PT

1шт.

10

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

11

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

12

J924148

PLUG,M22 x 1.5

- hex flange, 22 mm (Replaces plug J904386)

2шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

15

J901177

VALVE

KEEPER - valve

24шт.

16

J912976

RETAINER

- valve spring (Replaces retainer J907990)

12шт.

17

J901178

GUIDE

- valve spring, if used

12шт.

18

J906412

VALVE SPRING

SPRING, VALVE

12шт.

19

J912550

SEAL

- stem, intake valve, if used

6шт.

20

J912549

SEAL

- stem, exhaust valve, exhaust valve, if used

6шт.

21

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

24

J924492

STD INLET VALVE

VALVE - intake (Replaces valve J915506)

6шт.

25

J921444

STD EXHAUST VALVE

VALVE - exhaust (Replaces valve J902254)

6шт.

26

J907233

BOLT

- cylinder head, 150mm long, before esn 44487830

14шт.

26

J917728

BOLT

- cylinder head, 160 mm long, after esn 44487830

14шт.

27

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long (Replaces bolt J907234)

12шт.

28

J931623

TAPPET

- valve, push rod (Replaces tappet J907240)

12шт.

29

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

30

J905870

SUPPORT

- shaft, rocker arm

6шт.

31

J901693

CLAMP

- retaining, shaft

6шт.

32

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW, Flg, 12 Pt Hd, M10 x 65, 12.9

12шт.

33

J919677

TUBE

- oil, rocker arm (Replaces manifold J910911)

1шт.

34

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 35 - 37

12шт.

35

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

37

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

40

J915415

SHAFT

- rocker, shown, no longer available, order shaft J919435 below

6шт.

40

J919435

SHAFT

- rocker (Replaces shaft J915415)

6шт.

41

J906100

SPRING CUP

WASHER - spring

12шт.

42

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special, end

12шт.

43

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.

44

J907555

PLUG

- rocker arm shaft, 1/4-18 PT (Used with J915415 shaft)

12шт.
