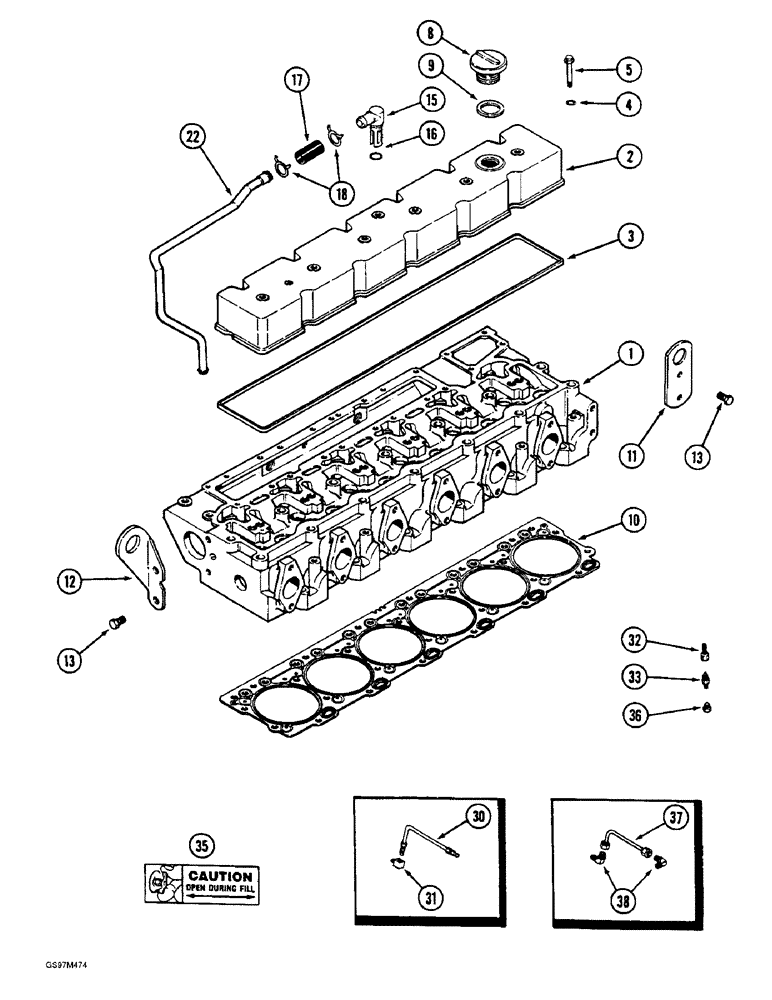

Запчасти Case IH 1660 (2-28) - CYLINDER HEAD COVER, 6T-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

HEAD ASSEMBLY - cylinder, parts list Figure 2-32

1шт.

2

J930903

VALVE COVER

COVER - valve (Replaces cover J907734)

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange cap, special (Replaces bolt J901838)

6шт.

8

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

10

J931019

GASKET

- cylinder head, standard (Replaces gasket J921850)

1шт.

10

J931026

GASKET

- cylinder head, 0.27 mm overthick (Replaces gasket J921852)

1шт.

10

J928181

GASKET

- cylinder head, 0.48 mm overthick (Replaces gasket J921853)

1шт.

11

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

12

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

4шт.

15

J920497

ELBOW

CONNECTOR - 90 degree, breather vent (Replaces connector J906794)

1шт.

16

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

17

J930827

HOSE,51.00 mm

Breather, If Used, Replaces J915040 51.00 mm

1шт.

18

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP, HOSE, , If Used #18, 1 1/8", Spring

2шт.

22

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather, if used

1шт.

30

J912802

TUBE,6.35 mm OD x 127.9 mm L

- vent, air, no longer available, order tube J918167 elbow 222-42, items 37 and 38

1шт.

31

A77535

ELBOW UNION

ELBOW - 90 degree, adapter, if used

1шт.

32

J911925

COUPLING

- hose

1шт.

33

J911901

VALVE, CHECK

VALVE - check

1шт.

35

J910778

DECAL

- Caution, open during fill

1шт.

36

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

37

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air, used with thermostat housing J913708, item 3 on Figure 2-30 (Replaces tube J912802)

1шт.

Order tube J924589 and adapter 222-22, items 4 and 5 on figure 2-30, when using thermostat housing J924586.

1шт.

38

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT, used with thermostat housing J913708, item 3 on Figure 2-30

2шт.

Order tube J924589 and adapter 222-22, items 4 and 5 on figure 2-30, when using thermostat housing J924586.

1шт.
