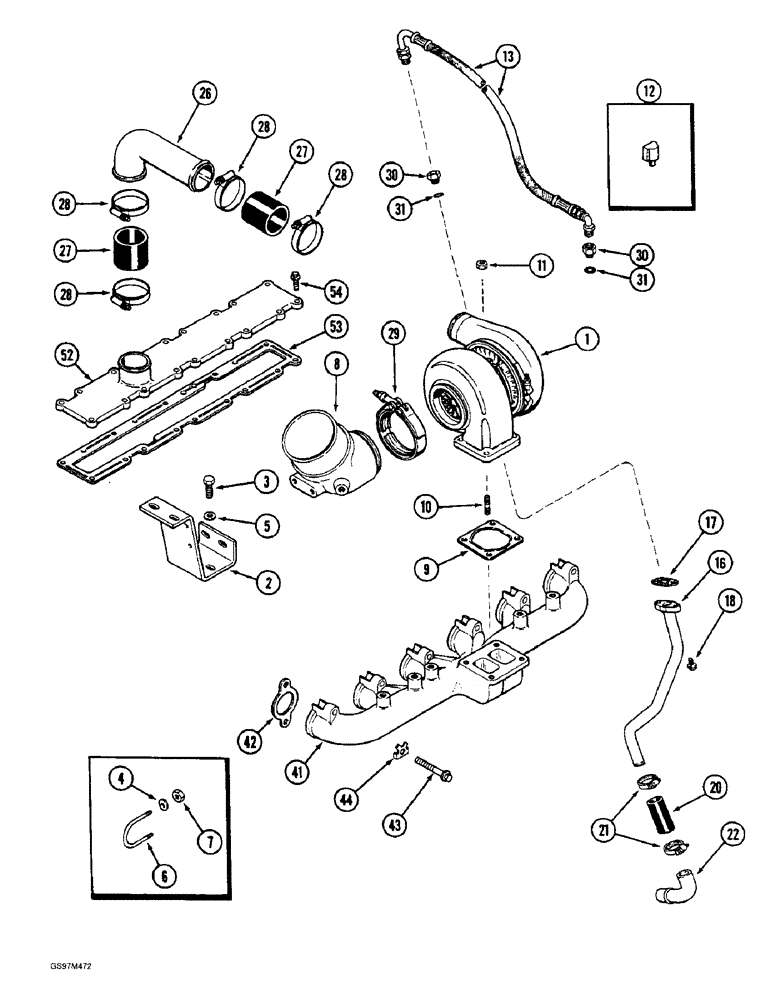

Запчасти Case IH 1660 (2-24) - TURBOCHARGER SYSTEM, 6T-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list Figure 2-26

1шт.

2

84569C8

SUPPORT TUBE

BRACKET - elbow

1шт.

3

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

6

S93558

U-BOLT

- 3/8 inch NC

1шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

84609C1

TUBE,85 mm ID x 88.9 mm OD x 620, 197.4 mm L

- aspirator, turbocharger

1шт.

9

J911941

GASKET

- mounting, turbocharger

1шт.

10

J818823

STUD

- turbocharger mounting (Replaces stud J905417)

4шт.

11

J818824

FLANGE NUT

- hex, special, 10 mm - 1.5, turbocharger mounting (Replaces nut J901961)

4шт.

12

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

If used (Replaces elbow A77588) 90º, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

13

J918562

HOSE

- oil supply turbocharger, 538 mm (21-3/16 inch) long (Replaces hose J909548)

1шт.

16

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- oil drain (Replaces tube J906743)

1шт.

17

J928919

GASKET

- turbo oil drain tube (Replaces gasket J914388)

1шт.

18

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

20

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain, Replaces J903745 22.22 mm ID x 76.20 mm

1шт.

21

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

26

J906742

TUBE,63.5 mm OD

- air, crossover

1шт.

27

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube, 76 mm (3 inch) long (Replaces hose J904422)

2шт.

28

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, 2-1/16 - 3 inch diameter (Replaces clamp J918521)

4шт.

29

A170807

CLAMP,102mm ID

retaining, special

1шт.

30

J919687

HYD CONNECTOR

ADAPTER ASSEMBLY- female hex, special (Replaces adapter J916857), Includes: Ref. 31

2шт.

31

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

41

J906741

MANIFOLD

- exhaust

1шт.

42

J929012

GASKET,0.5mm Thk

- exhaust manifold, 1.27 - 1.40 mm thick (Replaces gasket J911942)

6шт.

43

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm, manifolds

12шт.

44

J914708

LOCKING PLATE

PLATE - locking, manifolds exhaust

12шт.

A77611

MANIFOLD

KIT - intake manifold, Includes: Ref. 52 & 53

1шт.

52

NSS

NOT SOLD SEPARAT

MANIFOLD - intake, order kit A77611

1шт.

53

J914311

MANIFOLD GASKET

- manifold cover, intake

1шт.

54

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Manifolds intake Hex Flg Hd, M8 x 1.25 x 25

18шт.
