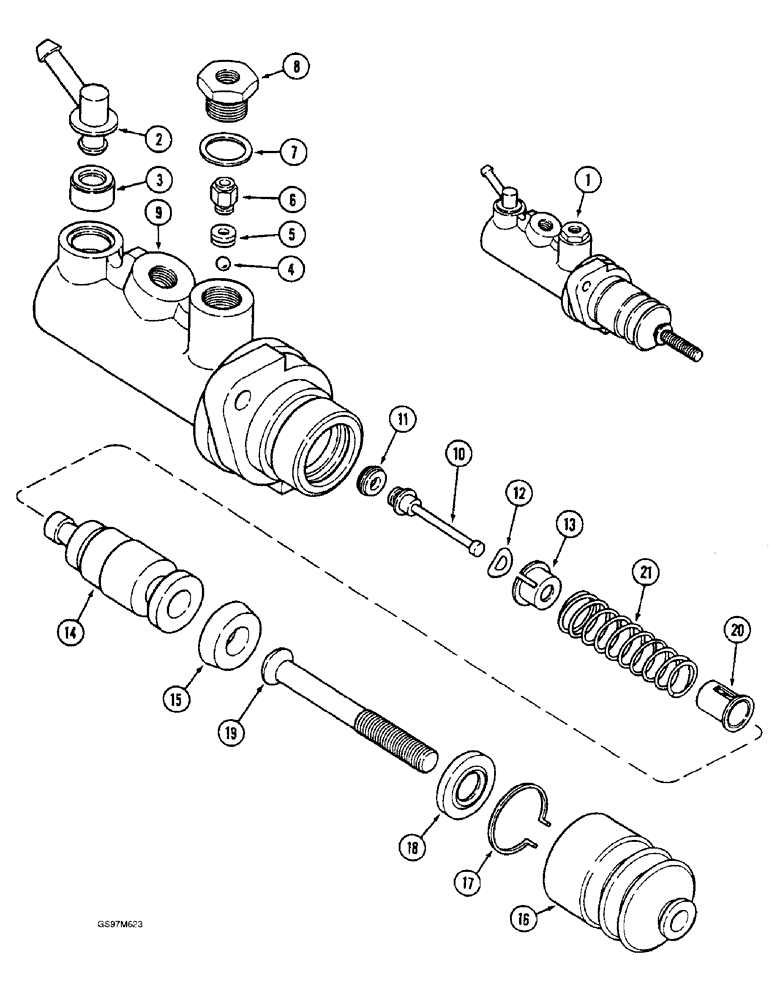

Запчасти Case IH 1660 (7-14) - MASTER BRAKE CYLINDER (5.1) - BRAKES

1

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY - master brake, 25 (1) ID x 37 mm (1-1/2 inch) stroke, Includes: Ref. 2 - 21

1шт.

2

85108C1

SEAL KIT

- inlet port, connector and seal, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - adapter, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - cylinder, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - flow valve, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - flow, order cylinder assembly

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - adapter, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

8

NSS

NOT SOLD SEPARAT

ADAPTER - flow valve, order cylinder assembly

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly

1шт.

10

NSS

NOT SOLD SEPARAT

STEM - valve, order cylinder assembly

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - center valve, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - curved, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - valve, order cylinder assembly

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER - cylinder, order cylinder assembly

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - gland, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

16

85109C1

BELLOWS

BOOT - master brake cylinder

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 1288941C91

1шт.

Part of master brake cylinder repair kit P/N 1288941C91

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - retaining, order cylinder assembly

1шт.

19

NSS

NOT SOLD SEPARAT

ROD - push, order cylinder assembly

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring, order cylinder assembly

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - return, order cylinder assembly

1шт.

1288941C91

PACKAGE, REPAIR

KIT - repair, master brake cylinder, Includes Refs. 3, 4, 5, 7, 11, 12, 15, 16 and 17

1шт.
