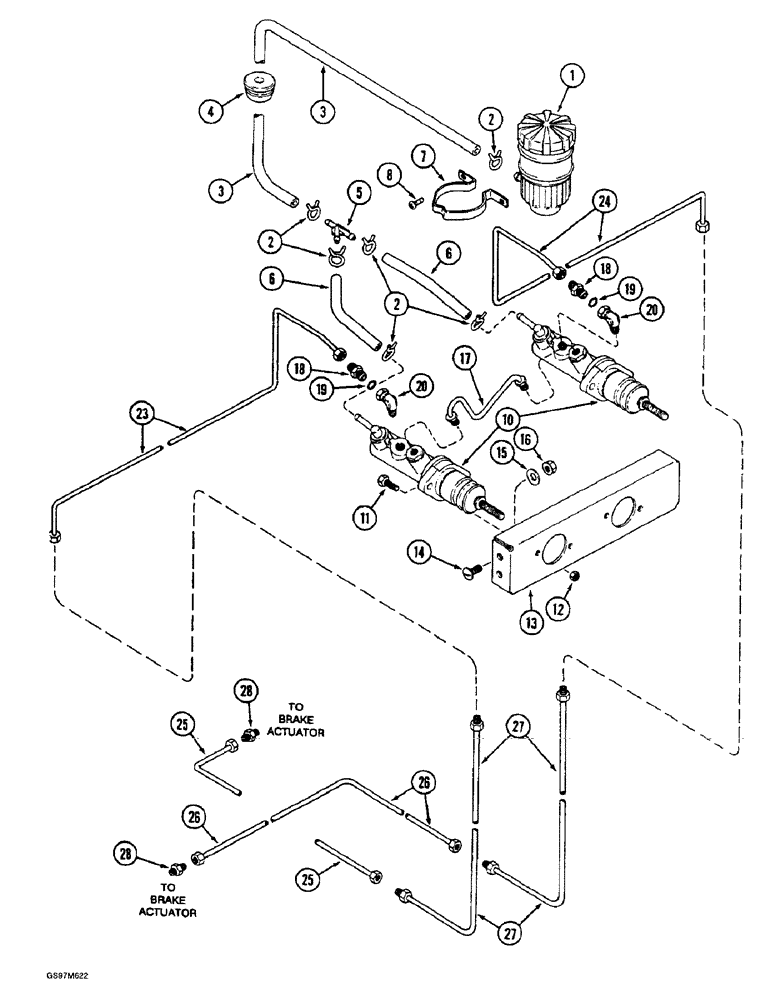

Запчасти Case IH 1660 (7-12) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

Ref no. 1 - cap no. is k964488. ph-cam 9-22-98

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID

1шт.

5

1285312C1

TEE

FITTING - stem, Y-type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- reservoir mounting

1шт.

8

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

2шт.

10

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY - master, parts list Figure 7-14

2шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

13

1327561C2

SUPPORT

- master brake cylinder

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

14

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

231-5146

FLANGE NUT,3/8"-16

5шт.

17

1281885C1

PIPE

TUBE - equalizer

1шт.

18

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 19

2шт.

19

237-3004

O-RING,0.351" ID x 0.072" Width

4-1, Cl 3, .351" ID x .072" Thk

2шт.

20

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

2шт.

23

1321476C2

HYD TUBE

TUBE - brake, upper right-hand

1шт.

24

1321475C2

HYD TUBE

TUBE - brake, upper left-hand

1шт.

25

1321514C1

HYD TUBE,0.25" OD, 435, 70 mm Length

TUBE - brake, lower, right-hand

1шт.

26

1321513C1

HYD TUBE,0.25" OD, 450, 435 mm Length

TUBE - brake, lower, left-hand

1шт.

27

1321511C2

HYD TUBE

TUBE - brake, center, middle

2шт.

28

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.
