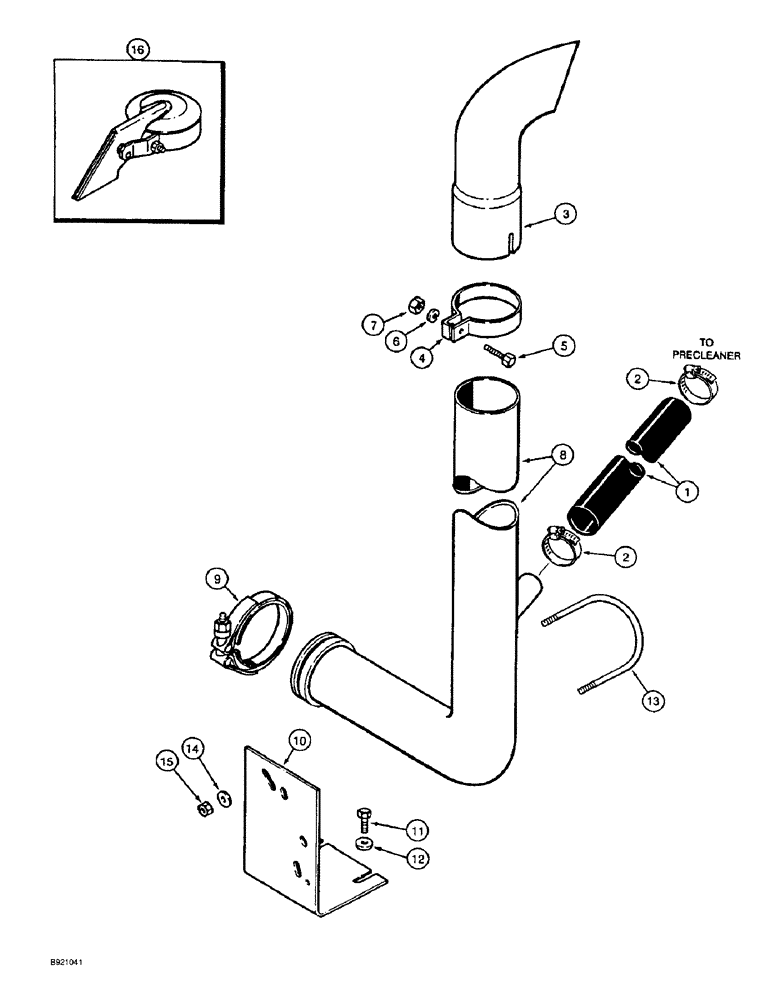

Запчасти Case IH 1660 (2-22) - EXHAUST SYSTEM (01) - ENGINE

1

REF

INSTRUCTION

HOSE - exhaust ejector, 280 mm (11 inch) long, cut from bulk hose 407001R3 below, models without cross fan cleaning system

1шт.

1

REF

INSTRUCTION

HOSE - exhaust ejector, 549 mm (21-5/8 inch) long, cut from bulk hose 407001R3 below, models with cross fan cleaning system

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

3

1275833C2

TUBE,89.92 mm ID, 88.9 mm OD

PIPE - exhaust elbow

1шт.

4

1321280C2

CLAMP,92mm

- exhaust pipe

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

84609C1

TUBE,85 mm ID x 88.9 mm OD x 620, 197.4 mm L

- aspirator, models without cross fan cleaning system

1шт.

8

120116A1

TUBE

- aspirator, models with cross fan cleaning system (Replaces tube 103758A1)

1шт.

9

A170807

CLAMP,102mm ID

retaining, special

1шт.

10

84569C8

SUPPORT TUBE

BRACKET - tube support

1шт.

11

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

12

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

13

S93558

U-BOLT

- 3/8 inch NC

1шт.

14

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

A19795

CAP

- weather, exhaust, models without cross fan cleaning system (Replaces cap 321863R91)

1шт.

16

1541960C2

CAP

- weather, exhaust, models with cross fan cleaning system

1шт.

407001R3

HOSE - bulk, 32 (1-1/4) ID x 914 mm (36 inch) long, no longer available

1шт.
