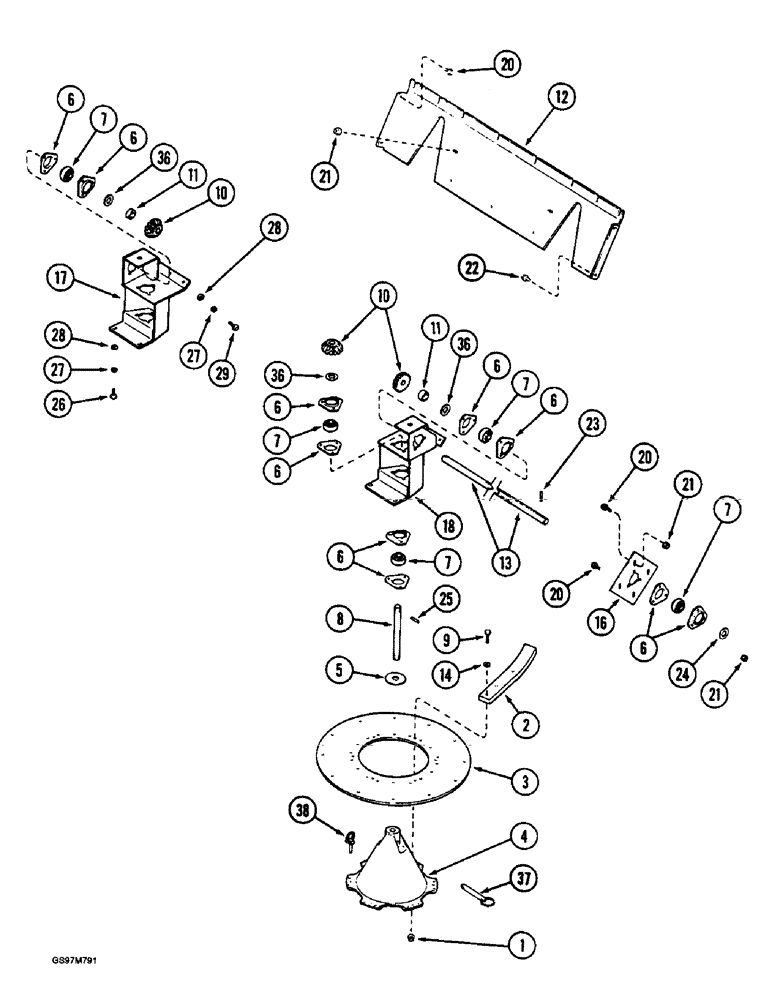

Запчасти Case IH 1660 (9F-02) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

24шт.

2

194198C2

SKID/SHOE

STRAP - rubber

12шт.

3

192252C1

RETAINER

- strap

2шт.

4

188218C6

CONE,Spreader Support

SUPPORT - straw spreader cone

2шт.

5

183041C1

WASHER

WASHER - flat, special, no longer available

2шт.

6

571424R1

FLANGE

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

192240C1

SHAFT

- straw spreader, 267 mm (10-1/2 inch) long

2шт.

9

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

24шт.

10

185410C1

GEAR-SET

GEAR - two-piece set, 14 tooth, no longer available, order gear 194194C1 below

2шт.

10

194194C1

GEAR

- bevel, 14 tooth

4шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch, cross bar

2шт.

12

195138C5

SUPPORT

- dust shield

1шт.

13

192242C4

SHAFT

BAR - cross, shaft

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

24шт.

16

186506C1

SUPPORT

PLATE - bearing

1шт.

17

1317897C2

BRACKET

SUPPORT - spreader drive, left-hand, prior to P.I.N. JJC0040293

1шт.

17

1345024C1

SUPPORT

- spreader drive, left-hand, P.I.N. JJC0040293 and after

1шт.

18

1345025C1

SUPPORT

- speader drive, right-hand

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

28шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

38-32424

PIN,3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

1шт.

25

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

37

120270A1

PIN

- lock, retainer (Replaces pins 1319303C1 and 1994817C1)

2шт.

38

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

2шт.
