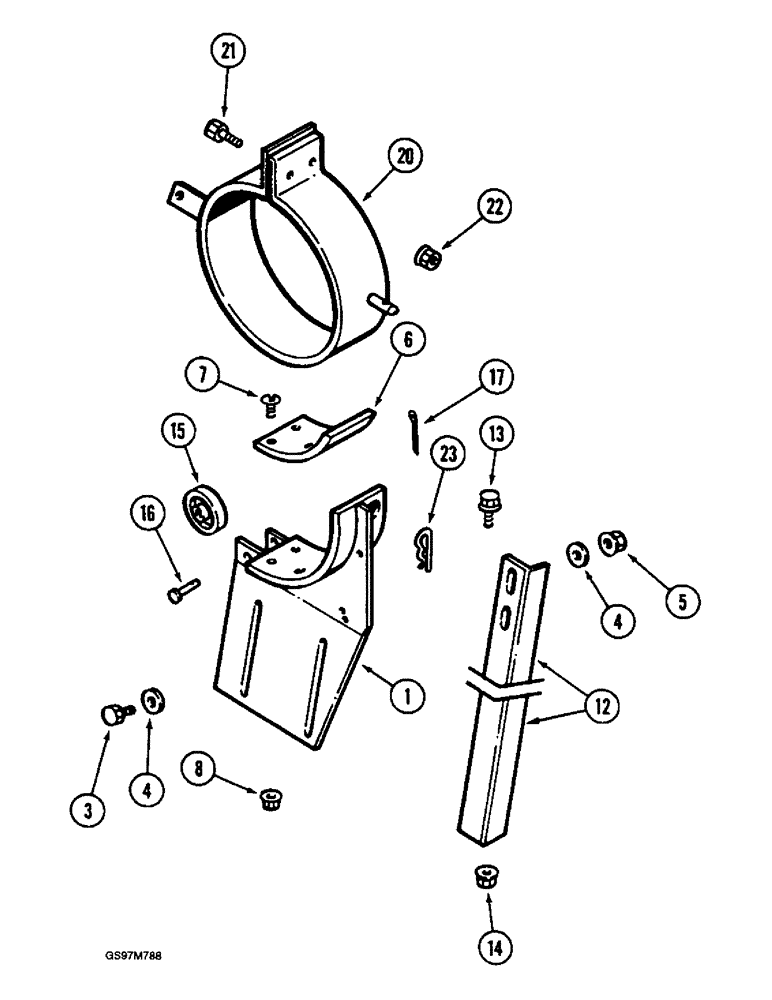

Запчасти Case IH 1660 (9E-44) - UNLOADER, TUBE SADDLE (17) - GRAIN TANK & UNLOADER

1

1321500C2

UNLOADING TUBE

BRACKET - unloader tube saddle support

1шт.

3

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

4шт.

4

495-81143

WASHER,13/32" x 1 1/2" x .120"

8шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

1321498C1

PAD

- saddle support bracket

1шт.

7

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

6шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

12

1319222C1

SUPPORT

- angle saddle

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

15

1321499C1

WHEEL,63.5mm OD x 28.6mm W

WHEEL - unloader saddle

1шт.

16

439-5436

HEADED PIN,1/4" x 2 1/4", G5

PIN - headed, 1/4 x 2-1/4 inch

1шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

20

1317870C1

CLAMP

- retaining

1шт.

21

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

23

480523R1

HAIR PIN COTTER

1шт.
