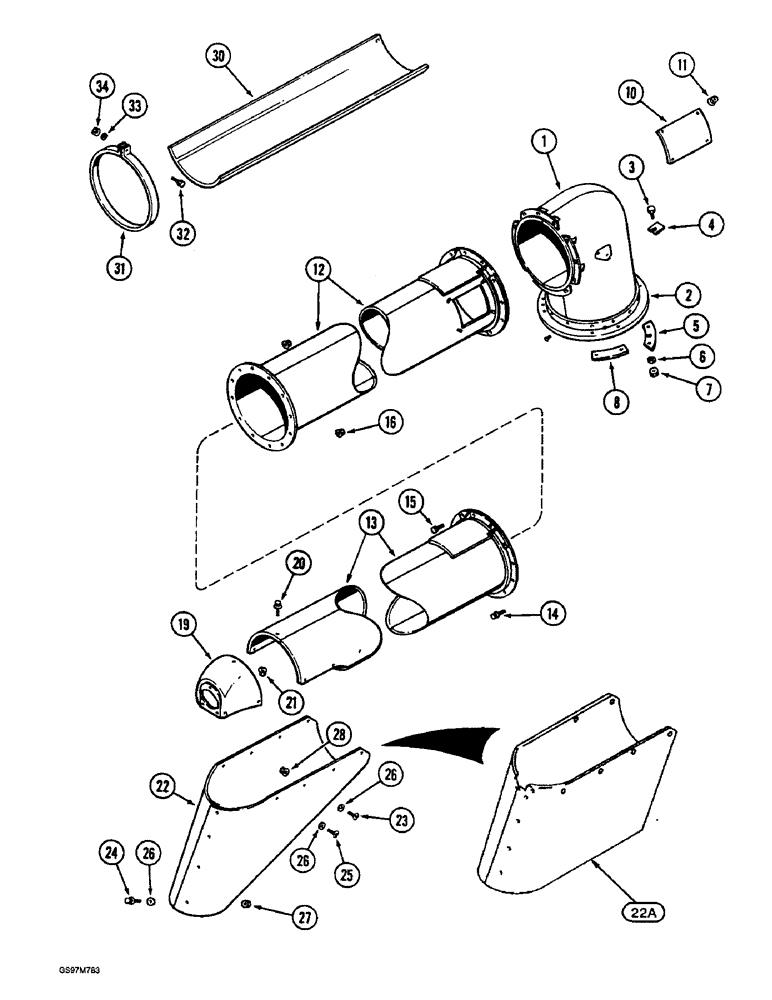

Запчасти Case IH 1660 (9E-34) - UNLOADER, UPPER TUBE (17) - GRAIN TANK & UNLOADER

1

193417C93

TUBE

ELBOW ASSEMBLY - unloader, no longer available, order elbow assembly 248308A1, Includes: Ref. 2 and rivet and screw listed below

1шт.

1

248308A1

ELBOW

ASSEMBLY - unloader, Includes: Ref. 2 and rivet and screw listed below

1шт.

2

193418C3

FLANGE

- unloader elbow, used with elbow 193417C93

1шт.

2

237007A1

RING

FLANGE - unloader elbow, used with elbow assembly 248308A1

1шт.

49-516

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, used with elbow assembly 248308A1

20шт.

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - hex, self-tapping, 1/4-14 x 3/4 inch, used with elbow assembly 248308A1

3шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

4

151670C1

SHIM

SHIM - keeper, 0.036 inch

1шт.

5

186657C2

SUPPORT

- front keeper

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

BAR - unloader tube keeper

1шт.

10

178158C1

PLATE

- inspection, front tube

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

12

1317738C1

TUBE,2285 mm Length

- unloader, plain, front, 89.96 in.

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, perforated, front, 89.96 in.

1шт.

13

1317734C4

TUBE,1170 mm Length

- unloader, rear, 1170 mm (46.06 inch) long

1шт.

13

1317783C5

TUBE,2084.01 mm Length

- unloader, rear, 82.47 in.

1шт.

13

1317899C3

TUBE,2998 mm Length

- unloader, rear, 118.031 in.

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

18шт.

15

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

6шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

- end, unloader tube

1шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

1321150C1

SPOUT, DISCHARGE

SPOUT - down, unloader tube, no longer available, order spout 113488A1, item 22A

1шт.

22a

113488A1

SPOUT, DISCHARGE

SPOUT - down, unloader tube

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

28

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

30

178165C2

COVER

- auger tube, perforated

1шт.

31

178166C1

CLAMP

- tube retaining

4шт.

32

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
