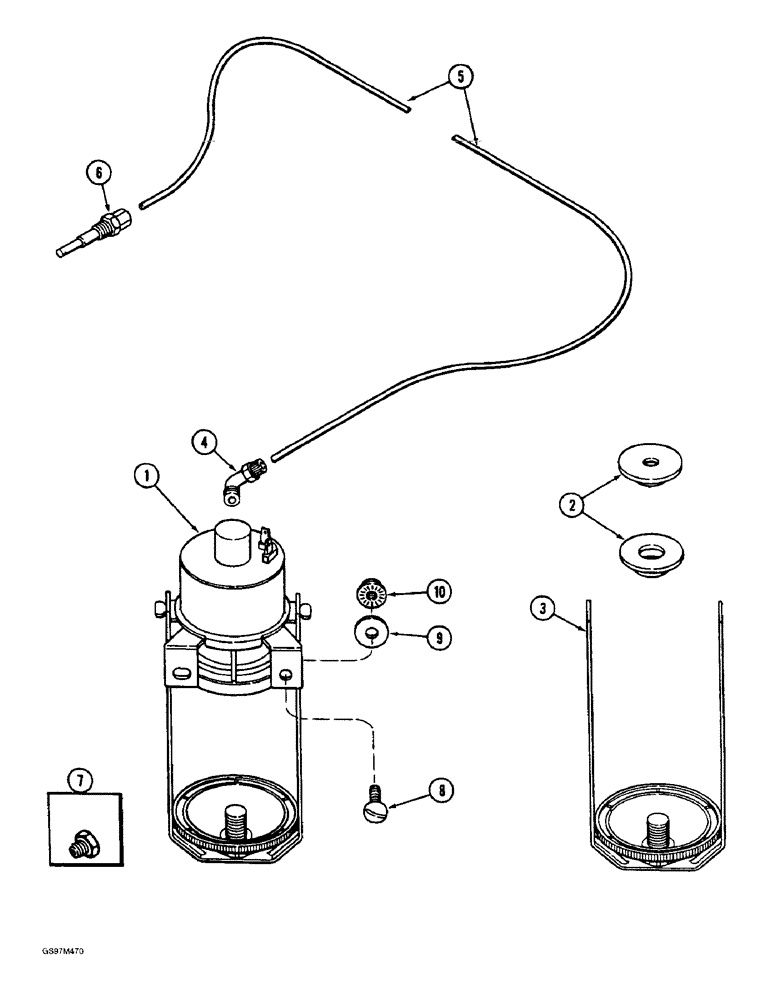

Запчасти Case IH 1660 (2-20) - ETHER START (01) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, no longer available, order solenoid assembly 185552A2, parts list Figure 2-21A, Includes: Ref. 2 & 3

1шт.

2

395686R1

GASKET

- injector solenoid, 15/64 inch diameter

1шт.

2

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

3

121851C1

RETAINER

- ether start fluid container

1шт.

4

289970C91

FITTING

ELBOW - 90 degree, special, 1/8-27 PT x 1/8 inch tube

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - solenoid to manifold, 1829 mm (72 inch) long, cut from bulk tubing 1954063CX below

1шт.

6

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

7

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

9

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

1954063CX

TUBE

- bulk, 3 (1/8) OD x 30480 mm (1200 inch) long, sold by the foot

1шт.
