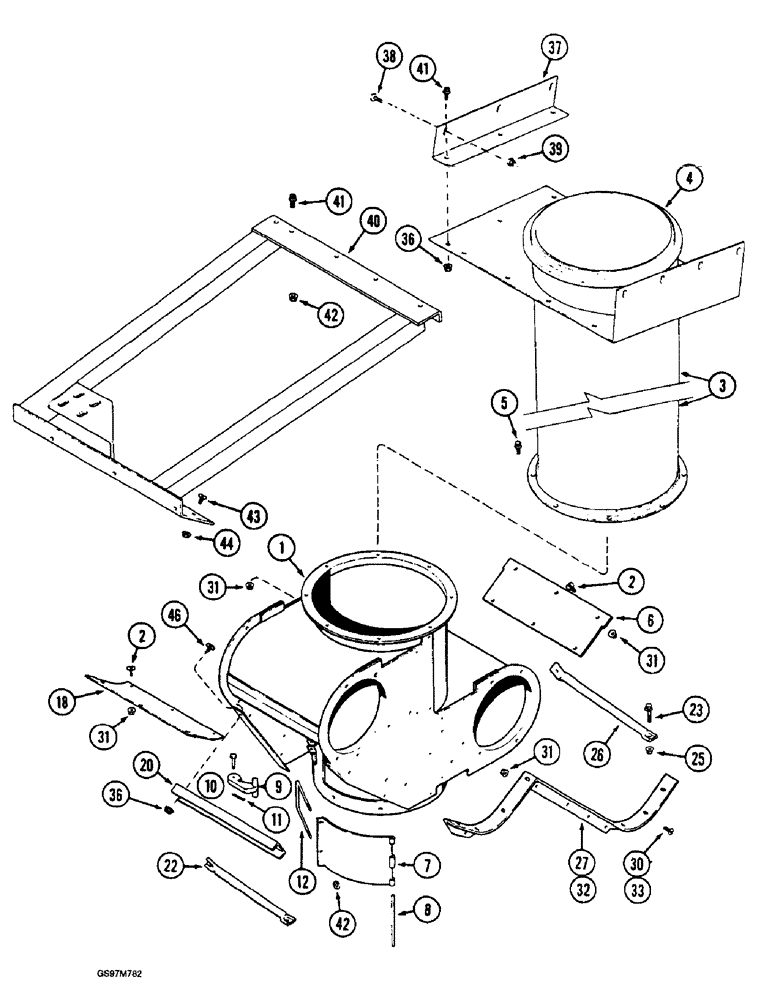

Запчасти Case IH 1660 (9E-32) - LOWER GRAIN TANK, UNLOADER HOUSING, P.I.N. JJC0040895 AND AFTER (17) - GRAIN TANK & UNLOADER

1

192475C3

HOUSING

- unloader, lower

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

28шт.

3

248307A2

UNLOADING TUBE,647.7, 237.2 mm Length

TUBE ASSEMBLY - auger, vertical (Replaces tube assembly 1338394C1), Includes: Ref. 4

1шт.

4

237009A1

RING

- tube (Replaces ring 178134C2)

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

6

191087C1

PLATE

COVER - unloader housing, front bottom

1шт.

7

1970539C1

FLAP

DOOR - auger, lower, with decal

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

ROD - pivot, door

1шт.

9

155909C1

LATCH

- door

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT - U-type, door

1шт.

18

191110C1

COVER

COVER - unloader housing, rear bottom

1шт.

20

192834C1

CHANNEL

- support

1шт.

22

192848C1

ROD

SUPPORT - rear housing

1шт.

23

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

192847C1

ROD

SUPPORT - front housing

1шт.

27

192828C1

SUPPORT

- housing, left-hand

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

40шт.

32

192829C1

SUPPORT

- housing, right-hand

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

36

231-5146

FLANGE NUT,3/8"-16

11шт.

37

1338393C1

ANGLE

SUPPORT - vertical auger

1шт.

38

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

- serrated Phillips truss head, 3/8 NC x 1 inch (Replaces screw 1319406C1)

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

1338388C1

SUPPORT

- unloader cylinder

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

11шт.

42

231-5146

FLANGE NUT,3/8"-16

11шт.

43

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

7шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.
